SAXSdb — 9zv0

▼

1. Structure Basics

entry_id	9zv0
deposition_date	2025-12-29
title	CryoEM structure of H5N1 A/Texas/37/2024 HA bound to Fab H70
keywords	H5N1, antibody, influenza, VIRAL PROTEIN, ANTIMICROBIAL PROTEIN, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	49.48 Å
rg_electron	49.34 Å
i0	931735000.00
molecular_weight	249610.0 kDa
excluded_volume	310860 Å³
envelope_volume	420080 Å³
shell_volume	74442 Å³
envelope_diameter	169.3 Å
shell_rg	49.20 Å
envelope_rg	49.08 Å
shape_rg	49.34 Å
total_rg	49.33 Å
total_atoms	17561
n_residues	2160
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	174.4 Å
rg_real	49.82 Å
rg_real_error	1.99 Å
i0_real	9.3170e+08
i0_real_error	1.8150e+07
rg_reciprocal	49.48 Å
i0_reciprocal	931300000.0000
total_estimate	0.8536
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	49.0 Å
skewness	0.470
kurtosis	-0.376
angular_range	— – 0.1600 Å⁻¹
current_alpha	0.0000
highest_alpha	80050000.0000
n_real_points	33
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.762; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.940; Smooth: 0.867

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	Hemagglutinin
formula_weight	65585.8 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	A,B,C
atom_count	17561

MENIVLLLAIVSLVKSDQICIGYHANNSTEQVDTIMEKNVTVTHAQDILEKTHNGKLCDLNGVKPLILKDCSVAGWLLGNPMCDEFIRVPEWSYIVERANPANDLCYPGSLNDYEELKHMLSRINHFEKIQIIPKSSWPNHETSLGVSAACPYQGAPSFFRNVVWLIKKNDAYPTIKISYNNTNREDLLILWGIHHSNNAEEQTNLYKNPITYISVGTSTLNQRLAPKIATRSQVNGQRGRMDFFWTILKPDDAIHFESNGNFIAPEYAYKIVKKGDSTIMKSGVEYGHCNTKCQTPVGAINSSMPFHNIHPLTIGECPKYVKSNKLVLATGLRNSPLRRRRRRGLFGAIAGFIEGGWQGMVDGWYGYHHSNEQGSGYAADKESTQKAIDGVTNKVNSIIDKMNTQFEAVGREFNNLERRIENLNKKMEDGFLDVWTYNAELLVLMENERTLDFHDSNVKNLYDKVRLQLRDNAKELGNGCFEFYHKCDNECMESVRNGTYDYPQYSEEARLKREGSSGSSGYIPEAPRDGQAYVRKDGEWVLLSTFLGHHHHHHHHHGGSGLNDIFEAQKIEWHE

Source

organism	Influenza A virus
ncbi_taxonomy_id	11320
host_organism	Homo sapiens

Entity 2 polymer

description	H91 Fab Heavy Chain
formula_weight	13898.6 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	H,D,G

QVRLQESGPGLVKPSETLSLTCTVSGGSINSYYWTWIRQSPEKGLEWIGHIFYSGNTTYNPSLKSRVTISLDTSKRLFFLNLRSVTAADTAVYYCARCPMLTDSLYYYYGLDVWGQGTTVTVSS

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 3 polymer

description	H91 Fab Light Chain
formula_weight	12226.8 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	L,I,K

DIVMTQSPLSLSVTPGEPASISCRSSQSLLHSIGYNYLDWYLQKPGQSPQIIIYLDSTRAPGVPDRFSASGSGTDFALKISRVAAEDIGIYYCMQALQPPFTFGQGTRLEIK

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 4 branched

description	;N-acetyl-alpha-neuraminic acid-(2-3)-beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	1405.3 kDa
src_method	man
entity_count	3

Entity 5 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	syn
entity_count	12

▶

6. Citations (1)

▶

resolution	3.24 Å
resolution_method	—
num_particles	228102

fit	/app/data/saxs_computation/zv/9zv0/9zv0.fit
pddf	/app/data/pr_computation/zv/9zv0/9zv0.pr.out
profile	/app/data/saxs_computation/zv/9zv0/9zv0.dat

CryoEM structure of H5N1 A/Texas/37/2024 HA bound to Fab H70

SAXS Profile

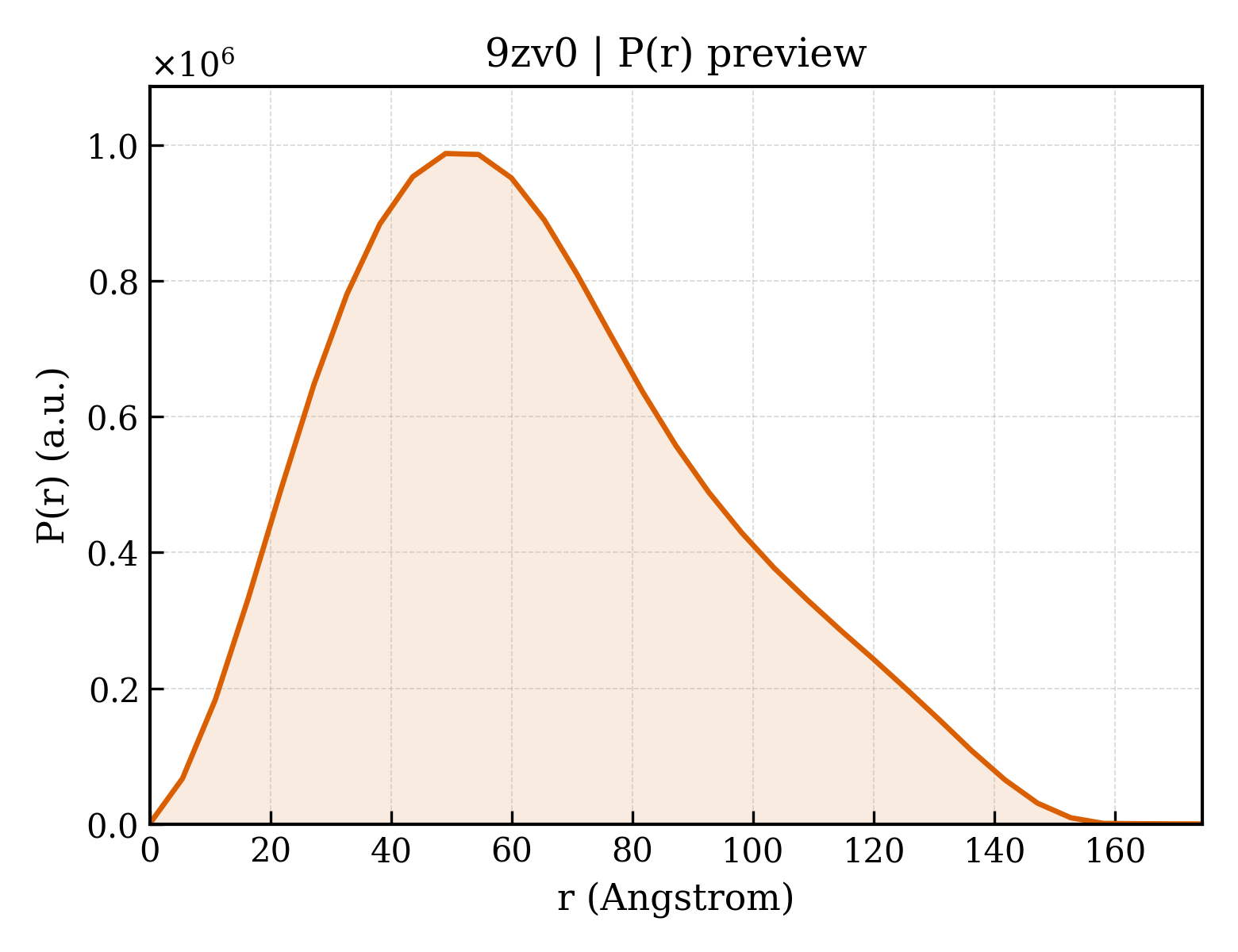

P(r) Distribution
