10ke

;Crystal structure of Capsular polysaccharide biosynthesis protein from Bordetella pertussis in complex with NAD and uridine-diphosphate-n-acetylgalactosamine (cocrystallization) ;

Method: X-RAY DIFFRACTION Dmax: 115.9 Å Quality: EXCELLENT

SAXS Profile

SAXS profile for 10ke

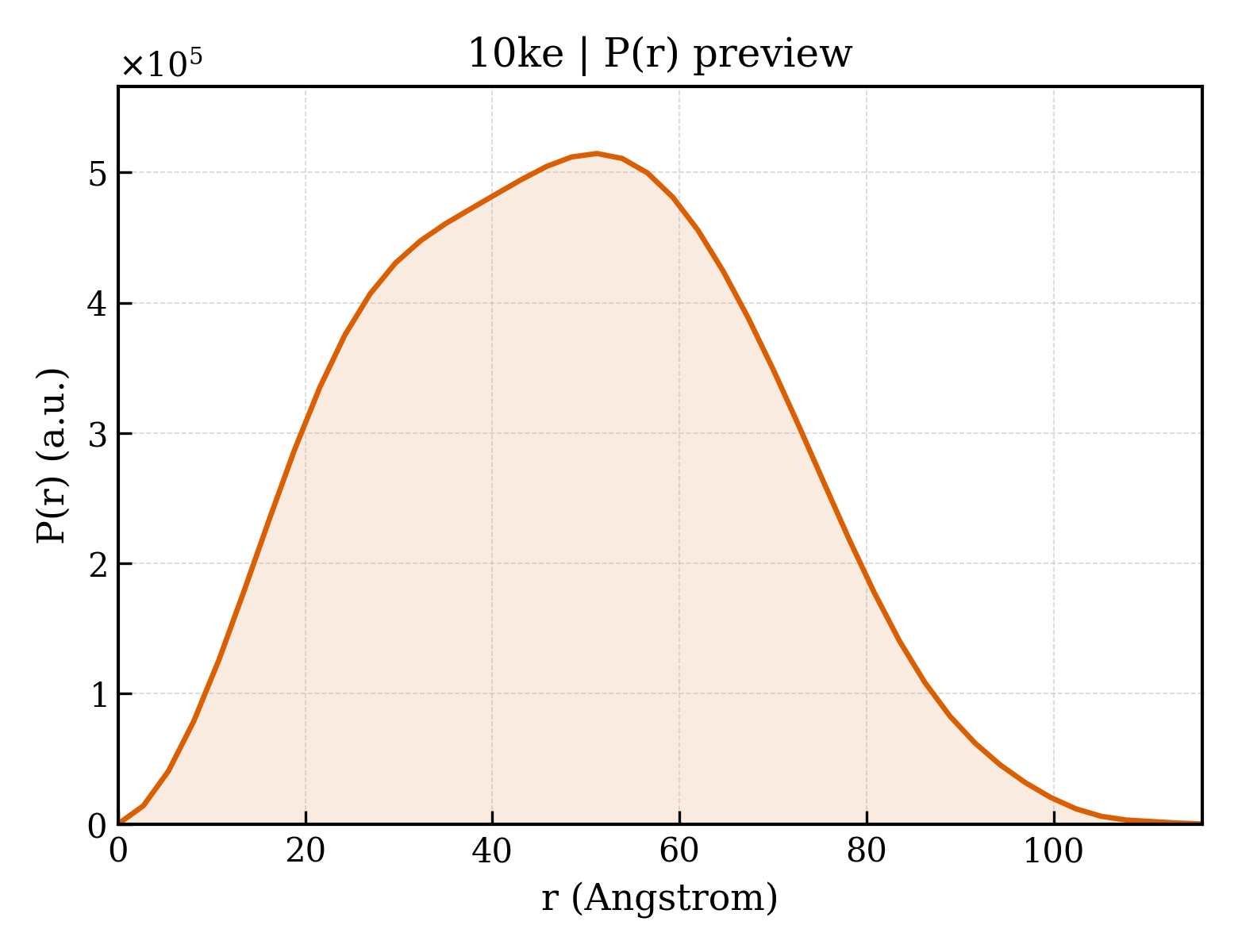

P(r) Distribution

P(r) distribution for 10ke
▼

1. Structure Basics

entry_id10ke
deposition_date2026-01-23
last_revision2026-02-04
title;Crystal structure of Capsular polysaccharide biosynthesis protein from Bordetella pertussis in complex with NAD and uridine-diphosphate-n-acetylgalactosamine (cocrystallization) ;
keywordsSSGCID, STRUCTURAL GENOMICS, SEATTLE STRUCTURAL GENOMICS CENTER FOR INFECTIOUS DISEASE, ISOMERASE; ISOMERASE
methodX-RAY DIFFRACTION
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier36.97 Å
rg_electron36.38 Å
i0371861000.00
molecular_weight152610.0 kDa
excluded_volume188900 ų
envelope_volume232290 ų
shell_volume51693 ų
envelope_diameter122.1 Å
shell_rg43.99 Å
envelope_rg35.89 Å
shape_rg36.38 Å
total_rg36.81 Å
total_atoms10750
n_residues1357
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax115.9 Å
rg_real36.83 Å
rg_real_error0.93 Å
i0_real3.7190e+08
i0_real_error6.2260e+06
rg_reciprocal36.92 Å
i0_reciprocal371900000.0000
total_estimate0.9010
solution_quality EXCELLENT a EXCELLENT solution
n_peaks1
r_peak_primary51.2 Å
skewness0.136
kurtosis-0.606
angular_range— – 0.2150 Å−1
current_alpha0.0000
highest_alpha155000000.0000
n_real_points44
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.943; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.880
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

▶

6. Citations (1)

▶

7. Files & Curves (10)
