10op

Cryo-EM structure of Sudan Ebolavirus GP bound by three neutralizing antibodies 545S, 523S and 294S

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Envelope glycoprotein 1

Sudan ebolavirus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 24 其他Polymer 3	545S Heavy Chain × 3 545S Light Chain × 3 523S Heavy Chain × 3 523S Light Chain × 3 294S Heavy Chain × 3 294S Light Chain × 3 ;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	R4QJ45_9MONO
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 1–204； UniProt 32–235 Author chain C； PDBConstruct 1–204； UniProt 32–235 Author chain E； PDBConstruct 1–204； UniProt 32–235 Author chain B； PDBConstruct 1–122； UniProt 510–631 Author chain D； PDBConstruct 1–122； UniProt 510–631 Author chain F； PDBConstruct 1–122； UniProt 510–631

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	10op
Deposition date deposition_date	2026-01-29
Structure title title	Cryo-EM structure of Sudan Ebolavirus GP bound by three neutralizing antibodies 545S, 523S and 294S
Keywords keywords	SUDV, neutralizing mAbs, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

10op__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

10op__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

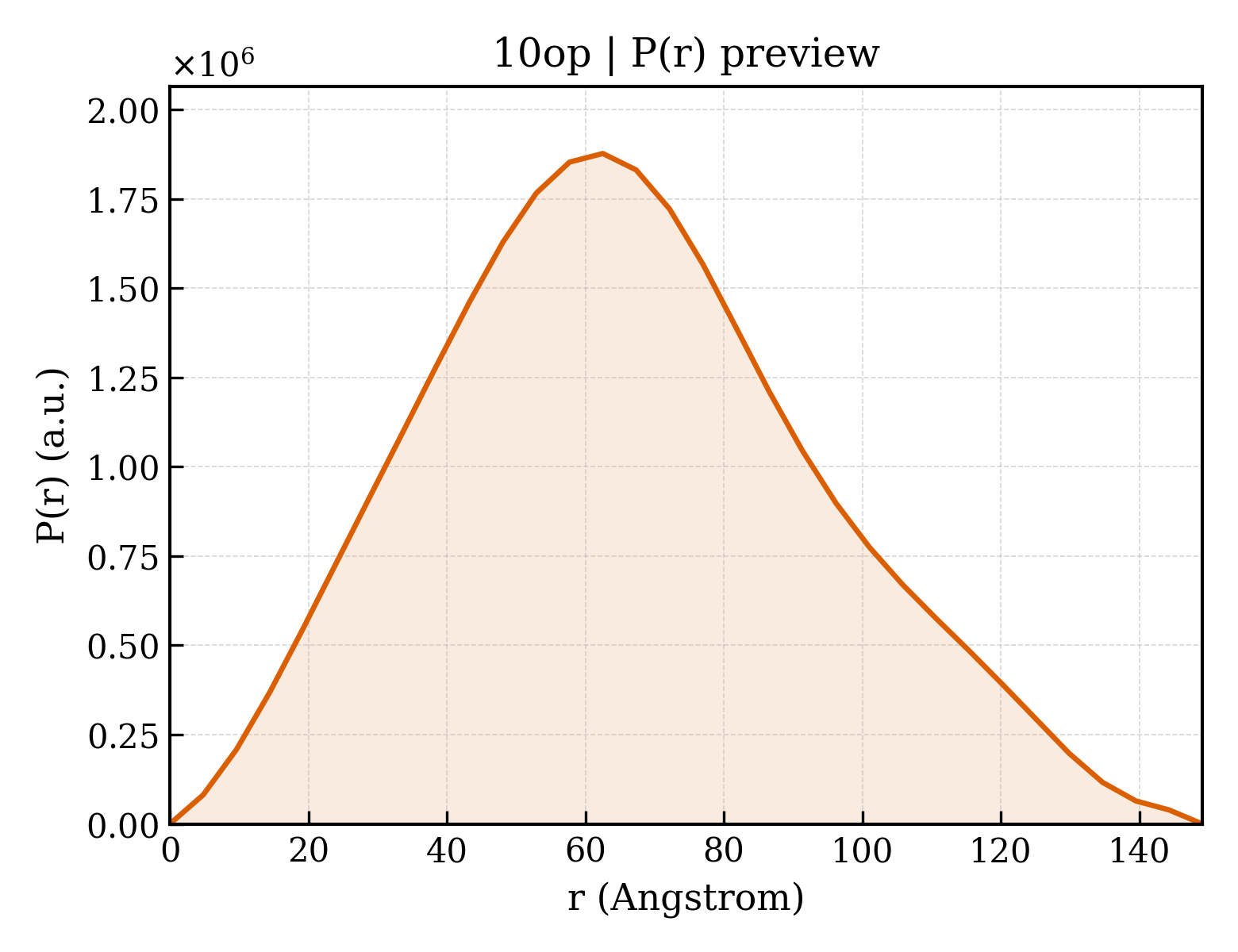

10op__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	50.60 Å
Rg (electron density)	50.39 Å
Total Rg	50.67 Å
Atom count	23337
Residues	3024
Excluded volume	411490 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`10op__assembly_1__model_1`	24-meric （24）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Envelope glycoprotein 1
Molecular weight formula_weight	22494.2 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E
Atom count atom_count	23337

SMPLGVVTNSTLEVTEIDQLVCKDHLASTDQLKSVGLNLEGSGVSTDIPSATKRWGFRSGVPPKVVSYEAGEWAENCYNLEIKKPDGSECLPPPPDGVRGFPRCRYVHKAQGTGPCPGDYAFHKDGAFFLYDRLASTVIYRGVNFAEGVIAFLILAKPKETFLQSPPIREAVNYTENTSSYYATSYLEYEIENFGAQHSTTLFK

Source Source

Source organism organism	Sudan ebolavirus
NCBI taxonomy ID ncbi_taxonomy_id	186540
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Envelope glycoprotein 2
Molecular weight formula_weight	13982.9 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F

KCNPNLHYWTAQEQHNAAGIAWIPYFGPGAEGIYTEGLMHNQNALVCGLRQLANETTQALQLFLRATTELRTYTILNRKAIDFLLRRWGGTCRILGPDCCIEPHDWTKNITDKINQIIHDFI

Source Source

Source organism organism	Sudan ebolavirus
NCBI taxonomy ID ncbi_taxonomy_id	186540
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	545S Heavy Chain
Molecular weight formula_weight	13118.5 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,I,K

QVQLQESGPGLVKPSQTLSLTCTVSGGSISRAGSYWSWIRQHPGKGLEWIGYISYSGSTYYNPSLESRVTMSLDTSKSQFSLKLSSVTAADTAVYYCAREDRSGFYGLDVWGQGTTVTVSS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	545S Light Chain
Molecular weight formula_weight	12349.7 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,J,L

QSVLTQPSSLSASPGATASLTCTLRSGINVDTYRIYWYQQKPGSPPQYLLRYKSDSDKHQGSGVPSRFSGSKDASANAGILLISGLQSADEADYYCMIWHSGAWVFGGGTKLTVQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 polymer

Description description	523S Heavy Chain
Molecular weight formula_weight	13711.2 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M,O,Q

QVQLVQSGAELKKPGASVKVSCKASGYTFSDHYVHWVRQAPGQGLEWMGRINPNSGGTNYAQRFLGRVTMTRDASISTAYLDLSSLRSDDTAVYYCARSSSSWSGHYYYYMDVWGKGTTVTVSS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 6 Entity 6 polymer

Description description	523S Light Chain
Molecular weight formula_weight	11366.5 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N,P,R

QSVLTQPPSVSAAPGQRVTISCSGSTSNIASNFVSWYQQLPGTAPKLLIYDNHKRPSGIPDRFSGSKSGTSATLGITGLQTGDEADYYCGTWDSSLSAGVFGGGTKVTVL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 7 Entity 7 polymer

Description description	294S Heavy Chain
Molecular weight formula_weight	13835.4 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S,U,W

QVQLQESGPGLVKPSQTLSLTCTVSGGSISSGGYHWSWIRQHPGKGLEWIGNIYYNGRTYYNPSLKSRVTISVDTSENEFSLKLSSVTAADTAVYYCARDRRRPRIGHDYGMDVWGQGTKVIVSS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 8 Entity 8 polymer

Description description	294S Light Chain
Molecular weight formula_weight	11787.0 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	T,V,X

DIQMTQSPSSLSASVGDRVTISCRASQSISNFLNWYQQKPGQAPKLLIYTASNLQSGVPSRFSGSGSGTDFTLTISSLQPEDFATYYCQQIYNTGMYSFGQGTKLEIK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 9 Entity 9 branched

Description description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	910.8 kDa
Source method src_method	man
Copy count entity_count	3

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.63 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	724000
