SAXSdb — 10qg

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

exo-alpha-sialidase

Treponema denticola

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 25–543	Not recorded	DAN 2-DEOXY-2,3-DEHYDRO-N-ACETYL-NEURAMINIC ACID × 2 EDO 1,2-ETHANEDIOL × 5 PEG DI(HYDROXYETHYL)ETHER × 2 CD CADMIUM ION × 23	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.8；296 K；100 mM HEPES, pH 7.8, 20 mM Cadmium chloride, 25% PEG400, soak in mother liquor with 25 mM DANA for 20 min	Resolution 1.55 Å R-free 0.153

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 10QG	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
10QF Crystal Structure of Treponema denticola Sialidase (TDE_0471) Deposited 2026-02-01	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 25–543（519 aa）	Not recorded	CD CADMIUM ION × 14 NA SODIUM ION × 2 B3P 2-[3-(2-HYDROXY-1,1-DIHYDROXYMETHYL-ETHYLAMINO)-PROPYLAMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 CIT CITRIC ACID × 1 EDO 1,2-ETHANEDIOL × 14 PGE TRIETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；296 K；25 mM Citric acid, 75 mM Bis-tris propane, pH 7.4, 20 mM Cadmium chloride, 25% PEG400, seeded	Resolution 1.63 Å R-free 0.187
10QH Crystal Structure of Treponema denticola Sialidase (TDE_0471) Bound to Neu5Ac (NANA) Deposited 2026-02-01	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 25–543（519 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CD CADMIUM ION × 17 SLB N-acetyl-beta-neuraminic acid × 1 EDO 1,2-ETHANEDIOL × 9 PEG DI(HYDROXYETHYL)ETHER × 1 PGE TRIETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；296 K；100 mM Tris, pH 8.2, 20 mM Cadmium chloride, 25% PEG400, soak in mother liquor with 15 mM Neu5Ac	Resolution 1.56 Å R-free 0.158
10QI Crystal Structure of Treponema denticola Sialidase (TDE_0471) D165A mutant bound to 3'-sialyllactose (only Neu5Ac visible) Deposited 2026-02-01	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 25–543（519 aa）	Mutation：D165A	SIA N-acetyl-alpha-neuraminic acid × 1 GOL GLYCEROL × 4 PEG DI(HYDROXYETHYL)ETHER × 1 CD CADMIUM ION × 6 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；296 K；100 mM Bis-tris, pH 6.5, 20 mM Cadmium chliride, 23% PEG400, 5 mM 3'-sialyllactose	Resolution 1.81 Å R-free 0.190

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q73QH2_TREDE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 13–531； UniProt 25–543

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	10qg
Deposition date deposition_date	2026-02-01
最后修订 last_revision	2026-02-25
Structure title title	Crystal Structure of Treponema denticola Sialidase (TDE_0471) bound to Neu5Ac2en (DANA)
Keywords keywords	sialidase, neuraminidase, virulence factor, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	24.83 Å
Radius of gyration Rg (electron density) rg_electron	23.84 Å
Forward intensity I(0) i0	65621700.00
Molecular weight molecular_weight	58991.0 kDa
Excluded volume excluded_volume	71092 Å³
Envelope volume envelope_volume	81210 Å³
Hydration-shell volume shell_volume	28731 Å³
Envelope diameter envelope_diameter	93.1 Å
Shell Rg shell_rg	30.82 Å
Envelope Rg envelope_rg	24.25 Å
Shape Rg shape_rg	23.72 Å
Total Rg total_rg	24.86 Å
Total atoms total_atoms	4015
Residues n_residues	500
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

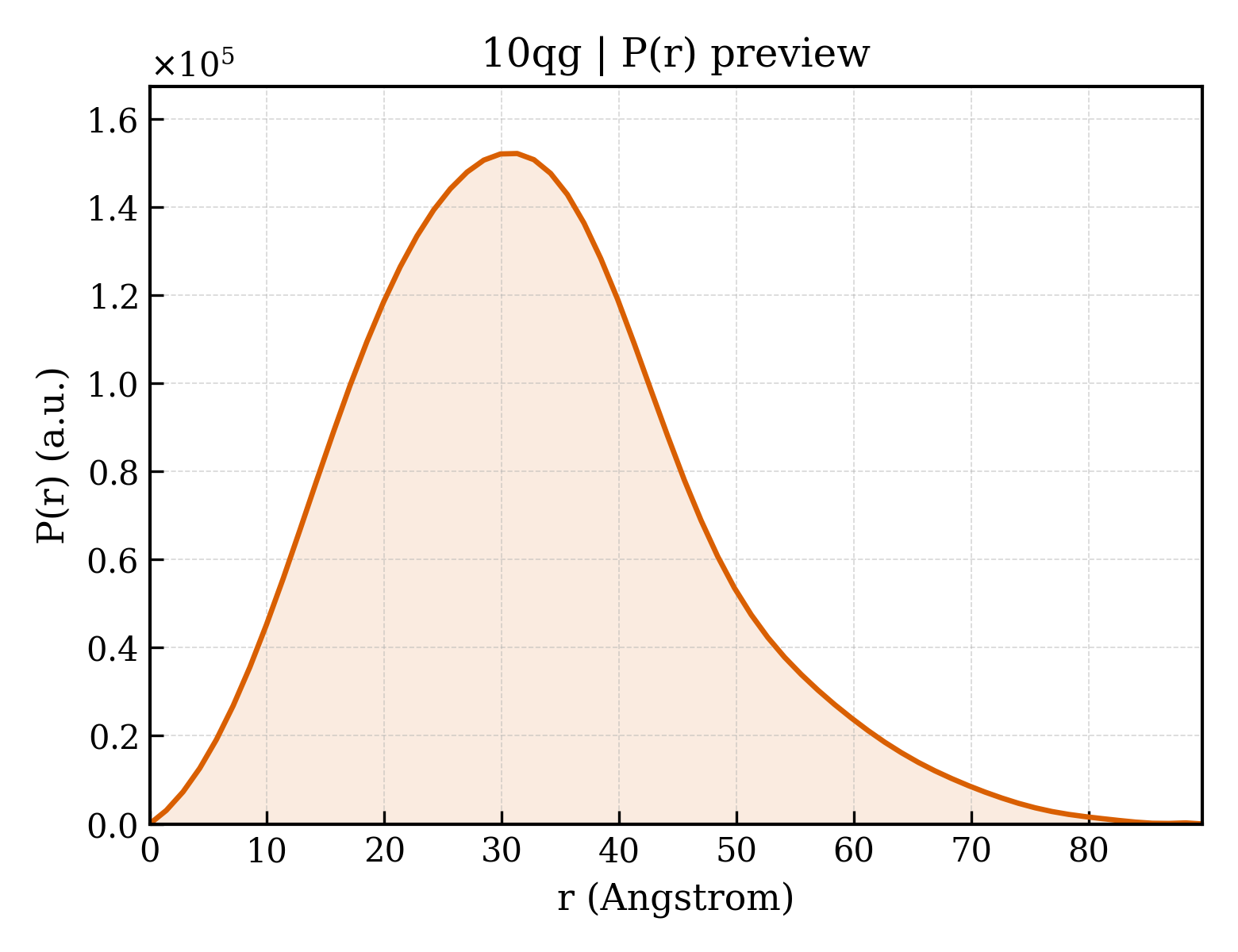

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	89.7 Å
Rg (real space) rg_real	24.86 Å
Rg uncertainty (real space) rg_real_error	0.75 Å
I(0) (real space) i0_real	6.5620e+07
I(0) uncertainty (real space) i0_real_error	1.0300e+06
Rg (reciprocal space) rg_reciprocal	24.85 Å
I(0) (reciprocal space) i0_reciprocal	65620000.0000
Solution quality estimate total_estimate	0.8252
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	31.3 Å
Skewness Skewness skewness	0.488
Kurtosis Kurtosis kurtosis	0.133
Angular range angular_range	— – 0.3200 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	12850000.0000
Real-space data points n_real_points	64
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.600; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.933; Smooth: 0.991

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	exo-alpha-sialidase
Molecular weight formula_weight	58788.7 kDa
EC 编号 ec_number	3.2.1.18
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4914

MRGSHHHHHHGSANKKDGGNQQGGLNPPSPGTPTFTVTFDVQGRGKTPAALTVPKDSLLTAAQTPPLEFSGWEFGGWYKDAFKTHEWNNASDTVTENTTLYARWTHTYPPAVQDLWQSKTDRPEDFYRIPALAVTKDGTLLAVTDLRYKNNSDLGNNHRIDLLIKRSEDNGKAWSEAVNITKTLPTDQTGYGDAAIVADRESDDVLILCVHGNVTYQAGNASNHLKVIQFVSHDGGKTFPEKKDISNTIFGFNHSWFSLFFGSGRIMQSRYIKAGSHYRIYSALLSKRFIHSNDHHDNAVVYSDDFGSTWHVLGDASTSPIPDGNEAKVEELPDGSVILSSRNGTANGRLINIFTYSDPDTGAGSWSSKQFLNLGSGSGTNGEILILKARKTDTKDPVYLAFQSLPDGPGRSKVTIHWRELTNNTITAHDFVSAATWNSHSYVVQTGDSAYSTMDVQRDGGIGFLYERNTRGLEYDIAYKNLPIDVITNGAYEAIFLGTGSVQCPYTDLEGKPVDPSVKEYYKNEKLHWKE

来源 Source

来源生物 organism	Treponema denticola
NCBI Class编号 ncbi_taxonomy_id	158
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	2-DEOXY-2,3-DEHYDRO-N-ACETYL-NEURAMINIC ACID
Molecular weight formula_weight	291.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	nat
Copy count entity_count	5

Entity 4 Entity 4 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	CADMIUM ION
Molecular weight formula_weight	112.4 kDa
Source method src_method	syn
Copy count entity_count	23

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	555

▶

8. Citations (1)

▶

Unit-cell length a length_a	129.811 Å
Unit-cell length b length_b	65.547 Å
Unit-cell length c length_c	91.679 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	106.15 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.549 Å
Low-resolution limit resolution_low	59.314 Å
R factor r_factor	—
R_work r_work	0.1378
R_free r_free	0.1530
