11mu

;Influenza A virus Hemagglutinin (A/Darwin/6/2021 H3N2) (C1 symmetry) determined using the SPT Labtech chameleon in the presence of 1x SurfACT ;

Method: ELECTRON MICROSCOPY Dmax: 141.3 Å Quality: GOOD

SAXS Profile

SAXS profile for 11mu

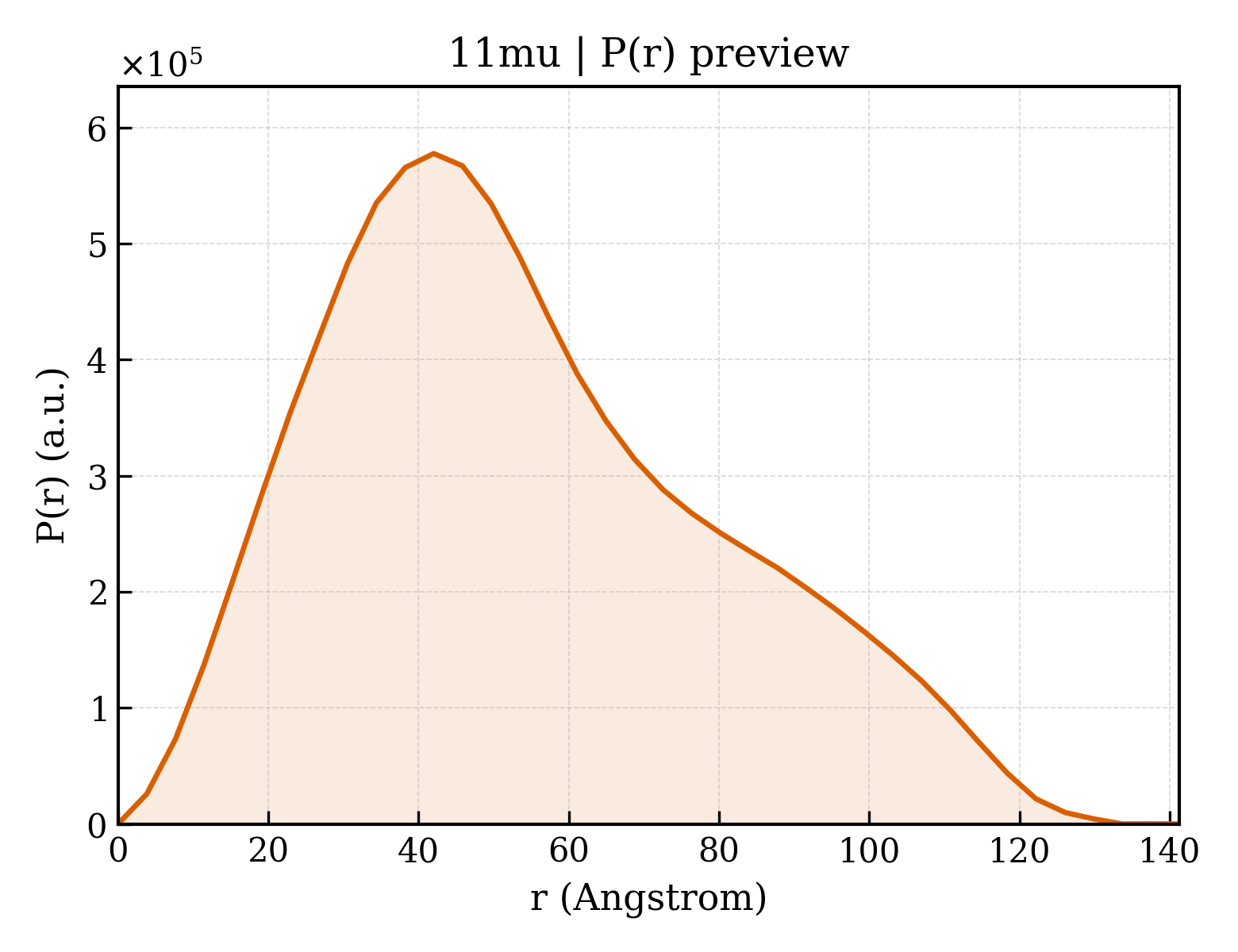

P(r) Distribution

P(r) distribution for 11mu
▼

1. Structure Basics

entry_id11mu
deposition_date2026-03-05
title;Influenza A virus Hemagglutinin (A/Darwin/6/2021 H3N2) (C1 symmetry) determined using the SPT Labtech chameleon in the presence of 1x SurfACT ;
keywordsHemagglutinin, Influenza A virus, H3N2, Viral Entry, Trimer, Glycoprotein, Membrane Fusion, VIRAL PROTEIN; VIRAL PROTEIN
methodELECTRON MICROSCOPY
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier42.18 Å
rg_electron41.67 Å
i0435393000.00
molecular_weight164310.0 kDa
excluded_volume203010 ų
envelope_volume270740 ų
shell_volume56155 ų
envelope_diameter139.4 Å
shell_rg44.98 Å
envelope_rg41.34 Å
shape_rg41.67 Å
total_rg41.82 Å
total_atoms11553
n_residues1467
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax141.3 Å
rg_real42.42 Å
rg_real_error1.67 Å
i0_real4.3540e+08
i0_real_error8.4060e+06
rg_reciprocal42.18 Å
i0_reciprocal435300000.0000
total_estimate0.8357
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary42.0 Å
skewness0.496
kurtosis-0.461
angular_range— – 0.1850 Å−1
current_alpha0.0000
highest_alpha45650000.0000
n_real_points38
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.725; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.959; Smooth: 0.728
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

7. Files & Curves (10)
