;Influenza A virus Hemagglutinin (A/Darwin/6/2021 H3N2) (C3 symmetry) determined using the SPT Labtech chameleon in the presence of 1x SurfACT ;

Method: ELECTRON MICROSCOPY D_max: 142.7 Å Quality: GOOD

SAXS Profile

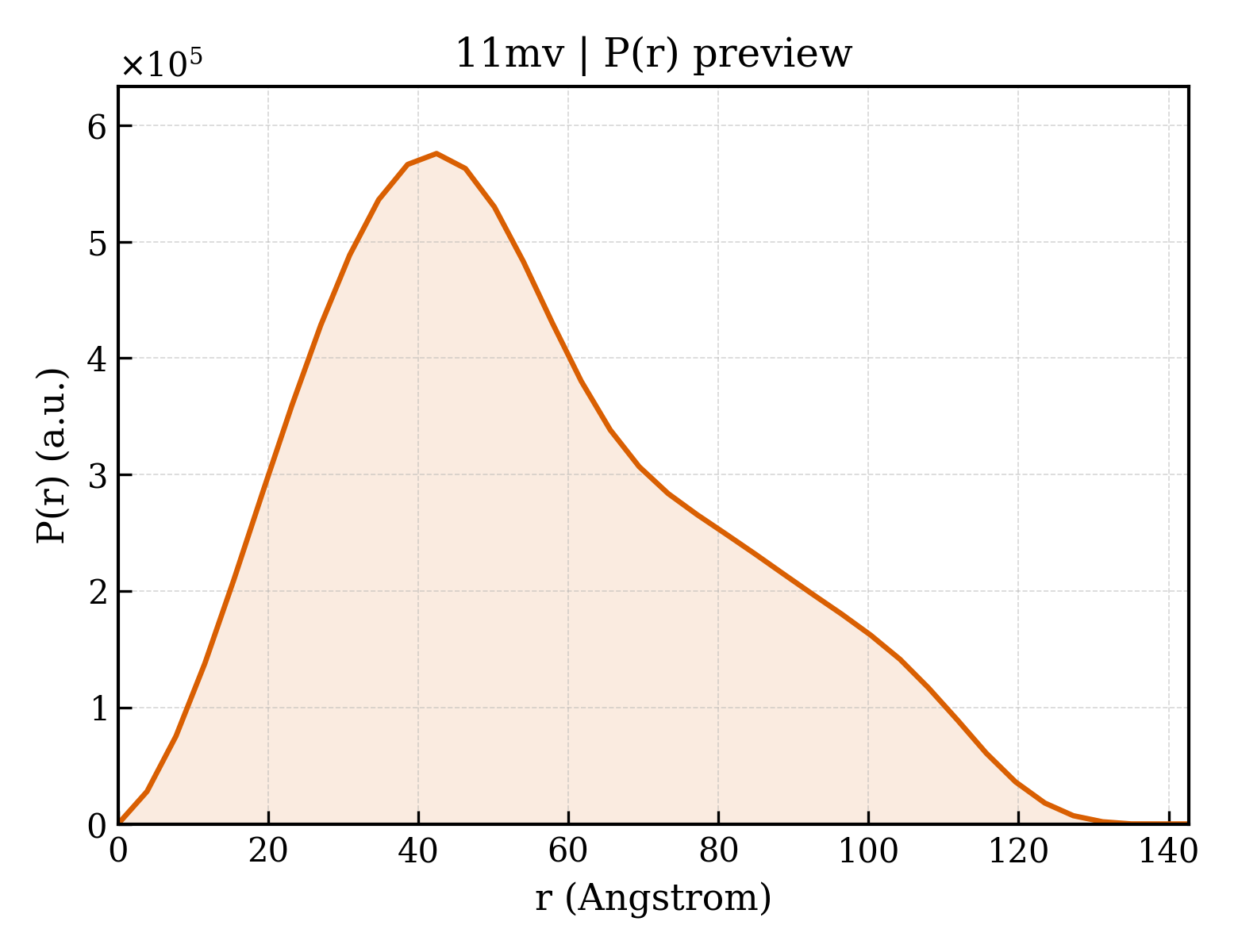

P(r) Distribution

▼

1. Structure Basics

entry_id	11mv
deposition_date	2026-03-05
title	;Influenza A virus Hemagglutinin (A/Darwin/6/2021 H3N2) (C3 symmetry) determined using the SPT Labtech chameleon in the presence of 1x SurfACT ;
keywords	Hemagglutinin, Influenza A virus, H3N2, Viral Entry, Trimer, Glycoprotein, Membrane Fusion, VIRAL PROTEIN; VIRAL PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	42.18 Å
rg_electron	41.66 Å
i0	435154000.00
molecular_weight	164310.0 kDa
excluded_volume	203010 Å³
envelope_volume	271090 Å³
shell_volume	56240 Å³
envelope_diameter	138.9 Å
shell_rg	45.07 Å
envelope_rg	41.31 Å
shape_rg	41.66 Å
total_rg	41.82 Å
total_atoms	11553
n_residues	1467
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	142.7 Å
rg_real	42.42 Å
rg_real_error	1.46 Å
i0_real	4.3520e+08
i0_real_error	8.4770e+06
rg_reciprocal	42.18 Å
i0_reciprocal	435000000.0000
total_estimate	0.8377
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	42.4 Å
skewness	0.495
kurtosis	-0.463
angular_range	— – 0.1850 Å⁻¹
current_alpha	0.0000
highest_alpha	45650000.0000
n_real_points	38
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.708; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.952; Smooth: 0.809

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.470 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.47 Å
resolution_method	—
num_particles	35526

description	Hemagglutinin
formula_weight	63305.0 kDa
src_method	man
entity_count	3

;Influenza A virus Hemagglutinin (A/Darwin/6/2021 H3N2) (C3 symmetry) determined using the SPT Labtech chameleon in the presence of 1x SurfACT ;

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

EM 3D

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Influenza A virus
ncbi_taxonomy_id	11320
host_organism	Homo sapiens

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	1101

fit	/app/data/saxs_computation/1m/11mv/11mv.fit
pddf	/app/data/pr_computation/1m/11mv/11mv.pr.out
profile	/app/data/saxs_computation/1m/11mv/11mv.dat

type	polypeptide(L)
strand_id	A,B,C
atom_count	12654
