11nb

Azotobacter vinelandii MoFeP (C2 symmetry) determined using the SPT Labtech chameleon in the presence of 0x SurfACT

Method: ELECTRON MICROSCOPY D_max: 117.7 Å Quality: GOOD

SAXS Profile

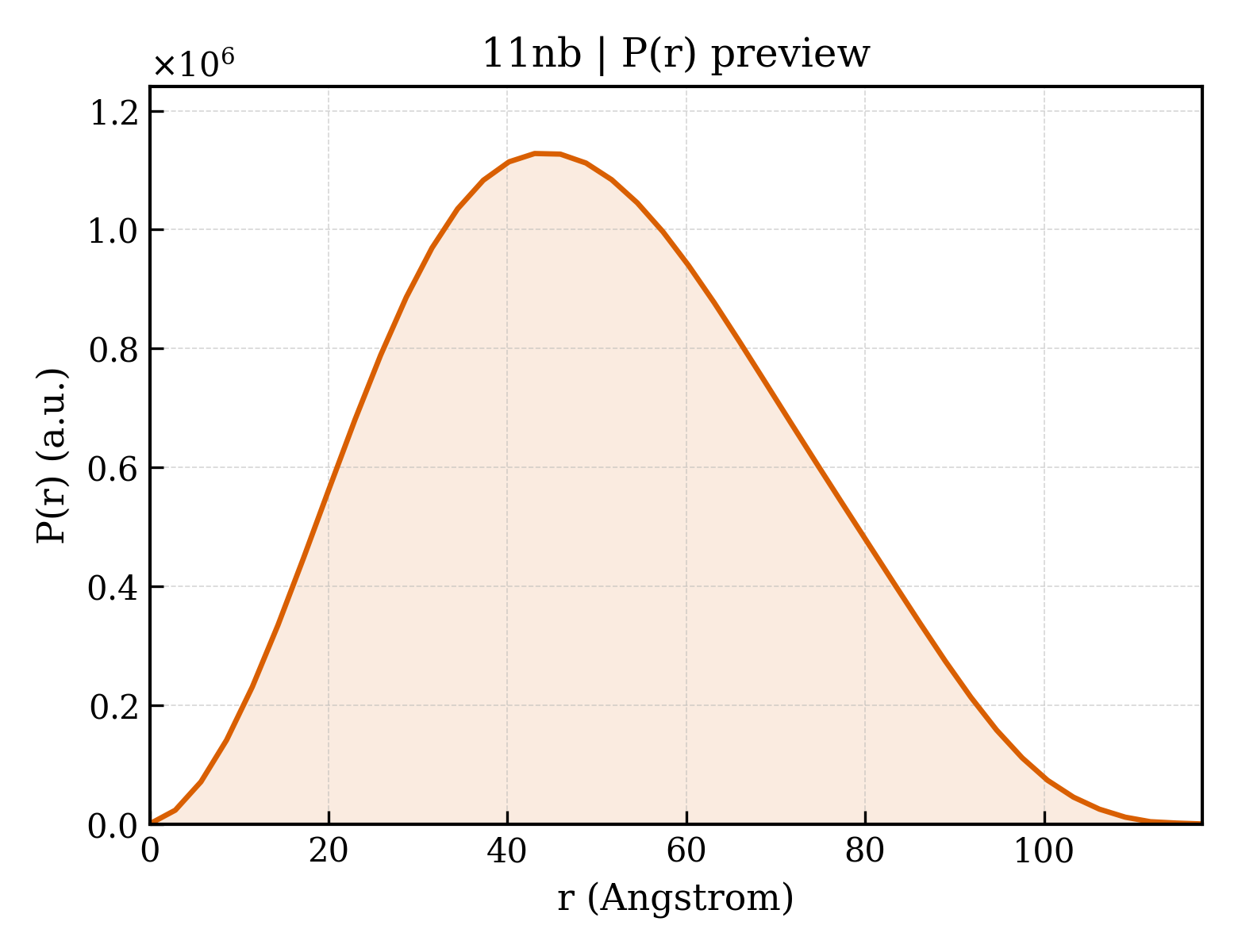

P(r) Distribution

▼

1. Structure Basics

entry_id	11nb
deposition_date	2026-03-05
title	Azotobacter vinelandii MoFeP (C2 symmetry) determined using the SPT Labtech chameleon in the presence of 0x SurfACT
keywords	Nitrogenase, FeMoCo, nitrogen, P-cluster, METAL BINDING PROTEIN, OXIDOREDUCTASE; OXIDOREDUCTASE
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	38.27 Å
rg_electron	37.65 Å
i0	799871000.00
molecular_weight	229830.0 kDa
excluded_volume	285910 Å³
envelope_volume	335060 Å³
shell_volume	70440 Å³
envelope_diameter	125.4 Å
shell_rg	46.31 Å
envelope_rg	37.67 Å
shape_rg	37.65 Å
total_rg	38.06 Å
total_atoms	16021
n_residues	1998
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	117.7 Å
rg_real	38.14 Å
rg_real_error	0.83 Å
i0_real	7.9990e+08
i0_real_error	1.3620e+07
rg_reciprocal	38.23 Å
i0_reciprocal	799900000.0000
total_estimate	0.8850
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	43.0 Å
skewness	0.234
kurtosis	-0.544
angular_range	— – 0.2050 Å⁻¹
current_alpha	0.0000
highest_alpha	265600000.0000
n_real_points	42
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.952; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.651

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (7)

Entity 1 polymer

description	Nitrogenase molybdenum-iron protein alpha chain
formula_weight	55363.0 kDa
ec_number	1.18.6.1
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,C
atom_count	17048

MTGMSREEVESLIQEVLEVYPEKARKDRNKHLAVNDPAVTQSKKCIISNKKSQPGLMTIRGCAYAGSKGVVWGPIKDMIHISHGPVGCGQYSRAGRRNYYIGTTGVNAFVTMNFTSDFQEKDIVFGGDKKLAKLIDEVETLFPLNKGISVQSECPIGLIGDDIESVSKVKGAELSKTIVPVRCEGFRGVSQSLGHHIANDAVRDWVLGKRDEDTTFASTPYDVAIIGDYNIGGDAWSSRILLEEMGLRCVAQWSGDGSISEIELTPKVKLNLVHCYRSMNYISRHMEEKYGIPWMEYNFFGPTKTIESLRAIAAKFDESIQKKCEEVIAKYKPEWEAVVAKYRPRLEGKRVMLYIGGLRPRHVIGAYEDLGMEVVGTGYEFAHNDDYDRTMKEMGDSTLLYDDVTGYEFEEFVKRIKPDLIGSGIKEKFIFQKMGIPFREMHSWDYSGPYHGFDGFAIFARDMDMTLNNPCWKKLQAPWEASEGAEKVAASA

Entity 2 polymer

description	Nitrogenase molybdenum-iron protein beta chain
formula_weight	59535.9 kDa
ec_number	1.18.6.1
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,D

MSQQVDKIKASYPLFLDQDYKDMLAKKRDGFEEKYPQDKIDEVFQWTTTKEYQELNFQREALTVNPAKACQPLGAVLCALGFEKTMPYVHGSQGCVAYFRSYFNRHFREPVSCVSDSMTEDAAVFGGQQNMKDGLQNCKATYKPDMIAVSTTCMAEVIGDDLNAFINNSKKEGFIPDEFPVPFAHTPSFVGSHVTGWDNMFEGIARYFTLKSMDDKVVGSNKKINIVPGFETYLGNFRVIKRMLSEMGVGYSLLSDPEEVLDTPADGQFRMYAGGTTQEEMKDAPNALNTVLLQPWHLEKTKKFVEGTWKHEVPKLNIPMGLDWTDEFLMKVSEISGQPIPASLTKERGRLVDMMTDSHTWLHGKRFALWGDPDFVMGLVKFLLELGCEPVHILCHNGNKRWKKAVDAILAASPYGKNATVYIGKDLWHLRSLVFTDKPDFMIGNSYGKFIQRDTLHKGKEFEVPLIRIGFPIFDRHHLHRSTTLGYEGAMQILTTLVNSILERLDEETRGMQATDYNHDLVR

Entity 3 non-polymer

description	3-HYDROXY-3-CARBOXY-ADIPIC ACID
formula_weight	206.2 kDa
src_method	syn
entity_count	2

Entity 4 non-polymer

description	iron-sulfur-molybdenum cluster with interstitial carbon
formula_weight	787.5 kDa
src_method	syn
entity_count	2

Entity 5 non-polymer

description	FE (III) ION
formula_weight	55.8 kDa
src_method	syn
entity_count	2

Entity 6 non-polymer

description	FE(8)-S(7) CLUSTER
formula_weight	671.2 kDa
src_method	syn
entity_count	2

Entity 7 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	1027

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.460 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.46 Å
resolution_method	—
num_particles	48236

fit	/app/data/saxs_computation/1n/11nb/11nb.fit
pddf	/app/data/pr_computation/1n/11nb/11nb.pr.out
profile	/app/data/saxs_computation/1n/11nb/11nb.dat
