11ne

Azotobacter vinelandii MoFeP (C1 symmetry) determined using the SPT Labtech chameleon in the presence of 1x SurfACT

Method: ELECTRON MICROSCOPY D_max: 121.3 Å Quality: GOOD

SAXS Profile

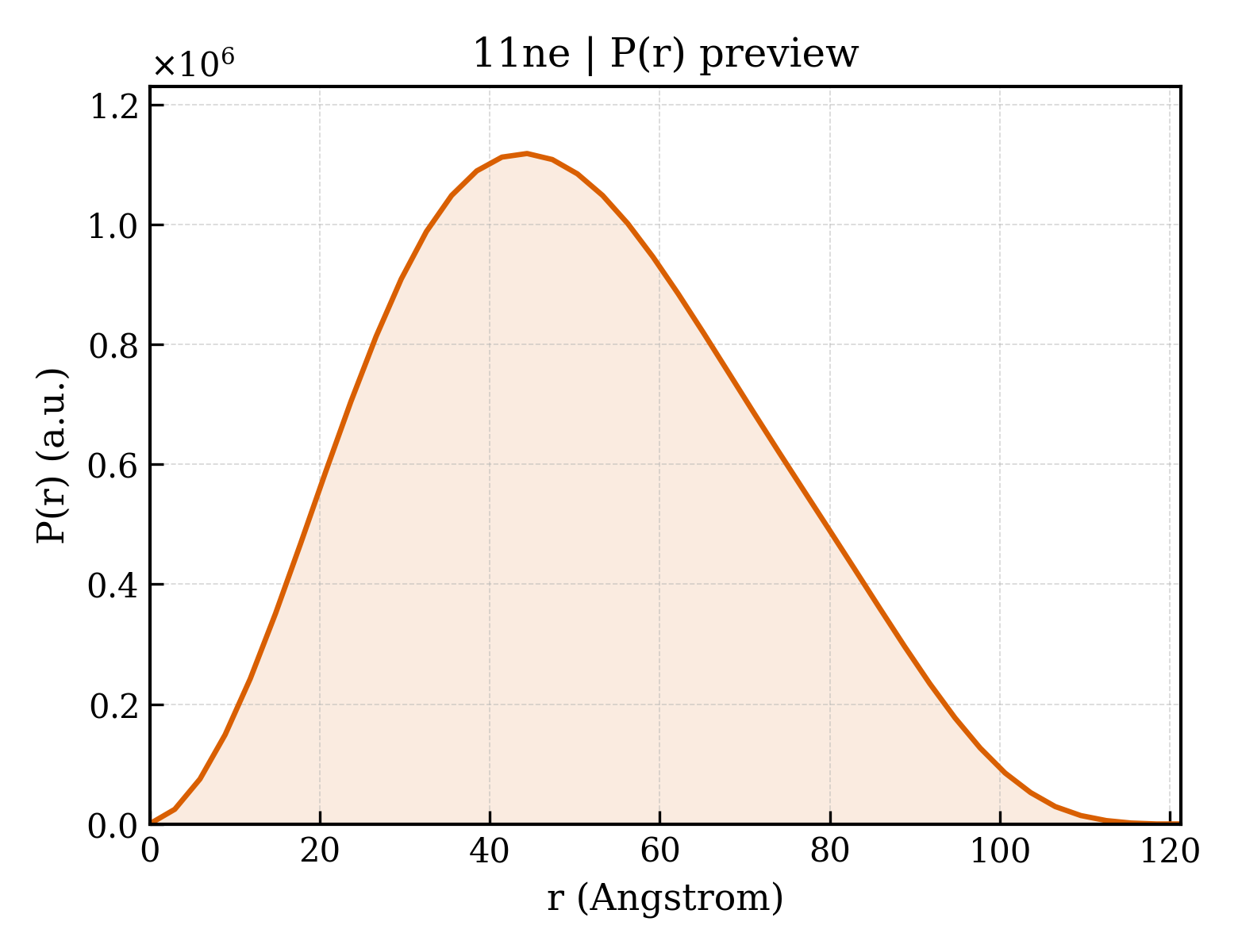

P(r) Distribution

▼

1. Structure Basics

entry_id	11ne
deposition_date	2026-03-05
title	Azotobacter vinelandii MoFeP (C1 symmetry) determined using the SPT Labtech chameleon in the presence of 1x SurfACT
keywords	Nitrogenase, FeMoCo, nitrogen, P-cluster, METAL BINDING PROTEIN, OXIDOREDUCTASE; OXIDOREDUCTASE
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	38.53 Å
rg_electron	37.92 Å
i0	799547000.00
molecular_weight	229830.0 kDa
excluded_volume	285910 Å³
envelope_volume	335720 Å³
shell_volume	70301 Å³
envelope_diameter	126.9 Å
shell_rg	46.34 Å
envelope_rg	37.94 Å
shape_rg	37.92 Å
total_rg	38.33 Å
total_atoms	16021
n_residues	1998
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	121.3 Å
rg_real	38.42 Å
rg_real_error	0.88 Å
i0_real	7.9950e+08
i0_real_error	1.2890e+07
rg_reciprocal	38.49 Å
i0_reciprocal	799600000.0000
total_estimate	0.8940
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	44.4 Å
skewness	0.250
kurtosis	-0.543
angular_range	— – 0.2050 Å⁻¹
current_alpha	0.0000
highest_alpha	253900000.0000
n_real_points	42
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.930; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.831

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (7)

Entity 1 polymer

description	Nitrogenase molybdenum-iron protein alpha chain
formula_weight	54000.6 kDa
ec_number	1.18.6.1
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,C
atom_count	17707

MSREEVESLIQEVLEVYPEKARKDRNKHLAVNDPAVTQSKKCIISNKKSQPGLMTIRGCAYAGSKGVVWGPIKDMIHISHGPVGCGQYSRAGRRNYYIGTTGVNAFVTMNFTSDFQEKDIVFGGDKKLAKLIDEVETLFPLNKGISVQSECPIGLIGDDIESVSKVKGAELSKTIVPVRCEGFRGVSQSLGHHIANDAVRDWVLGKRDEDTTFASTPYDVAIIGDYNIGGDAWSSRILLEEMGLRCVAQWSGDGSISEIELTPKVKLNLVHCYRSMNYISRHMEEKYGIPWMEYNFFGPTKTIESLRAIAAKFDESIQKKCEEVIAKYKPEWEAVVAKYRPRLEGKRVMLYIGGLRPRHVIGAYEDLGMEVVGTGYEFAHNDDYDRTMKEMGDSTLLYDDVTGYEFEEFVKRIKPDLIGSGIKEKFIFQKMGIPFREMHSWDYSGPYHGFDGFAIFARDMDMTLNNPCWKKLQAPWE

Entity 2 polymer

description	Nitrogenase molybdenum-iron protein beta chain
formula_weight	59404.7 kDa
ec_number	1.18.6.1
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,D

SQQVDKIKASYPLFLDQDYKDMLAKKRDGFEEKYPQDKIDEVFQWTTTKEYQELNFQREALTVNPAKACQPLGAVLCALGFEKTMPYVHGSQGCVAYFRSYFNRHFREPVSCVSDSMTEDAAVFGGQQNMKDGLQNCKATYKPDMIAVSTTCMAEVIGDDLNAFINNSKKEGFIPDEFPVPFAHTPSFVGSHVTGWDNMFEGIARYFTLKSMDDKVVGSNKKINIVPGFETYLGNFRVIKRMLSEMGVGYSLLSDPEEVLDTPADGQFRMYAGGTTQEEMKDAPNALNTVLLQPWHLEKTKKFVEGTWKHEVPKLNIPMGLDWTDEFLMKVSEISGQPIPASLTKERGRLVDMMTDSHTWLHGKRFALWGDPDFVMGLVKFLLELGCEPVHILCHNGNKRWKKAVDAILAASPYGKNATVYIGKDLWHLRSLVFTDKPDFMIGNSYGKFIQRDTLHKGKEFEVPLIRIGFPIFDRHHLHRSTTLGYEGAMQILTTLVNSILERLDEETRGMQATDYNHDLVR

Entity 3 non-polymer

description	3-HYDROXY-3-CARBOXY-ADIPIC ACID
formula_weight	206.2 kDa
src_method	syn
entity_count	2

Entity 4 non-polymer

description	iron-sulfur-molybdenum cluster with interstitial carbon
formula_weight	787.5 kDa
src_method	syn
entity_count	2

Entity 5 non-polymer

description	FE (III) ION
formula_weight	55.8 kDa
src_method	syn
entity_count	2

Entity 6 non-polymer

description	FE(8)-S(7) CLUSTER
formula_weight	671.2 kDa
src_method	syn
entity_count	2

Entity 7 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	1680

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.490 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.49 Å
resolution_method	—
num_particles	23561

fit	/app/data/saxs_computation/1n/11ne/11ne.fit
pddf	/app/data/pr_computation/1n/11ne/11ne.pr.out
profile	/app/data/saxs_computation/1n/11ne/11ne.dat
