1. Protein Identity and Related Structures Protein Identity & Related Structures

SnoaL-like domain-containing protein

Mycobacterium ulcerans Agy99

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 2–124	Fragment：S2-Y125	PEG DI(HYDROXYETHYL)ETHER × 2 ZN ZINC ION × 2 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 4.2；291 K；12% 4000, 0.1M sodium acetate pH 4.2, 10mM dihdrogen potassium phosphate. MyulA.17060.a.A1.PB00143 at 15 mg/mL. Liu-S-182 drop CD/4, Puck: PSL-0405, Cryo: 32% PEG 4000, 0.2M sodium acetate pH 4.0	Resolution 1.31 Å R-free 0.174

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 12IS	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9PL2 Crystal structure of a SnoaL-like domain-containing protein from Mycobacterium ulcerans Deposited 2025-07-15	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–124（123 aa） Chain B 2–124（123 aa）	Not recorded	PO4 PHOSPHATE ION × 1 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 3.8；291 K；8% (w/v) PEG 4K, 0.1M Cit pH 3.8, 10mM potassium dihydrogen phosphate. MyulA.17060.a.A1.PB00143 at 15 mg/mL. plate Liu-S-182 C1 Puck: PSL0114, Cryo: 75% crystallant + 25% PEG 200.	Resolution 1.37 Å R-free 0.190
9YAA Crystal structure of a SnoaL-like domain-containing protein from Mycobacterium ulcerans (Orthorhombic C form) Deposited 2025-09-15	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–124（123 aa）	Not recorded	PG4 TETRAETHYLENE GLYCOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.2；291 K；12% 4000, 0.1M sodium acetate pH 4.2, 10mM dihdrogen potassium phosphate. MyulA.17060.a.A1.PB00143 at 15 mg/mL. Liu-S-182 drop CD/4, Puck: PSL-0407, Cryo: 32% PEG 4000, 0.2M sodium acetate pH 4.0	Resolution 1.36 Å R-free 0.181

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0PR67_MYCUA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 24–146； UniProt 2–124

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	12is
Deposition date deposition_date	2026-04-07
最后修订 last_revision	2026-04-15
Structure title title	Crystal structure of a SnoaL-like domain-containing protein from Mycobacterium ulcerans (Zinc Bound)
Keywords keywords	;SSGCID, STRUCTURAL GENOMICS, SEATTLE STRUCTURAL GENOMICS CENTER FOR INFECTIOUS DISEASE, SnoaL-like domain, Mycobacterium ulcerans, ISOMERASE ;; ISOMERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.33 Å
Radius of gyration Rg (electron density) rg_electron	13.85 Å
Forward intensity I(0) i0	4044440.00
Molecular weight molecular_weight	14190.0 kDa
Excluded volume excluded_volume	17718 Å³
Envelope volume envelope_volume	19908 Å³
Hydration-shell volume shell_volume	12242 Å³
Envelope diameter envelope_diameter	49.4 Å
Shell Rg shell_rg	19.59 Å
Envelope Rg envelope_rg	14.11 Å
Shape Rg shape_rg	13.82 Å
Total Rg total_rg	15.14 Å
Total atoms total_atoms	997
Residues n_residues	119
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	49.8 Å
Rg (real space) rg_real	15.20 Å
Rg uncertainty (real space) rg_real_error	0.27 Å
I(0) (real space) i0_real	4.0440e+06
I(0) uncertainty (real space) i0_real_error	4.0230e+04
Rg (reciprocal space) rg_reciprocal	15.21 Å
I(0) (reciprocal space) i0_reciprocal	4044000.0000
Solution quality estimate total_estimate	0.7018
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	48.6 Å
Skewness Skewness skewness	0.067
Kurtosis Kurtosis kurtosis	-0.325
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	700300.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.787; Stabil: 1.000; Sysdev: 0.256; Positv: 1.000; Valcen: 0.998; Smooth: 0.992

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	SnoaL-like domain-containing protein
Molecular weight formula_weight	16936.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1217

MAHHHHHHMGTLEAQTQGPGSMVSIALLREMFEKMVVAKNAELIGHYYDPDFVMYSDGLRQEFAEFNEGHRKIYASAISYAIEYDEDAWVQAPDRVAGRVWITTSRPGEKPTRIEVILIAAYRDCRIHRIWETTWPSWRNVAALED

来源 Source

来源生物 organism	Mycobacterium ulcerans Agy99
NCBI Class编号 ncbi_taxonomy_id	362242
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	116

▶

8. Citations (1)

▶

Unit-cell length a length_a	62.071 Å
Unit-cell length b length_b	71.662 Å
Unit-cell length c length_c	56.341 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	1.310 Å
Low-resolution limit resolution_low	36.050 Å
R factor r_factor	0.1503
R_work r_work	0.1491
R_free r_free	0.1742

fit	/app/data/saxs_computation/2i/12is/12is.fit
pddf	/app/data/pr_computation/2i/12is/12is.pr.out
profile	/app/data/saxs_computation/2i/12is/12is.dat

Crystal structure of a SnoaL-like domain-containing protein from Mycobacterium ulcerans (Zinc Bound)

1. Protein Identity and Related Structures Protein Identity & Related Structures

SnoaL-like domain-containing protein

State in the Current Structure

Other States of the Same Protein in the Database

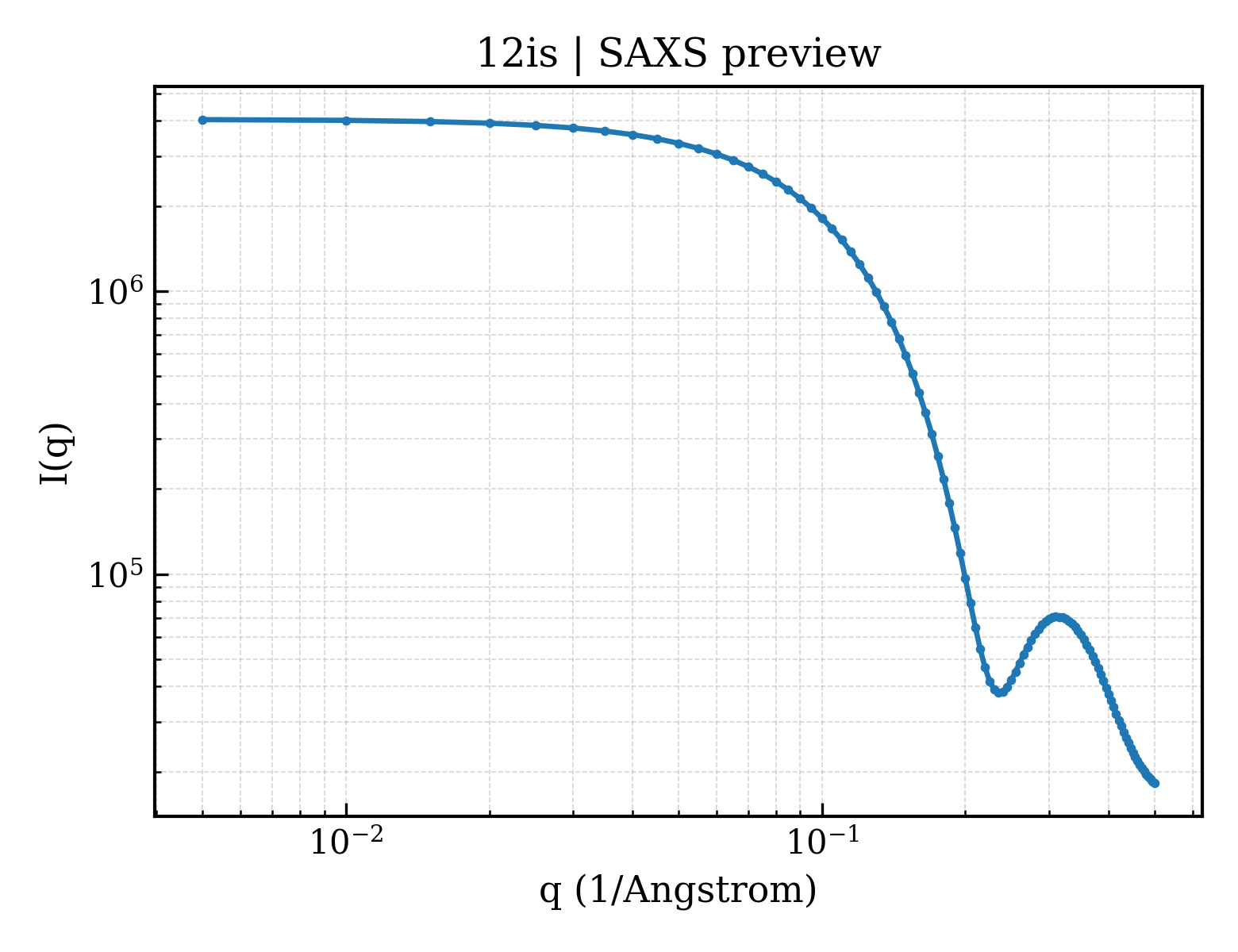

SAXS scattering curve SAXS Profile
