9pl2
Crystal structure of a SnoaL-like domain-containing protein from Mycobacterium ulcerans
SAXS Profile

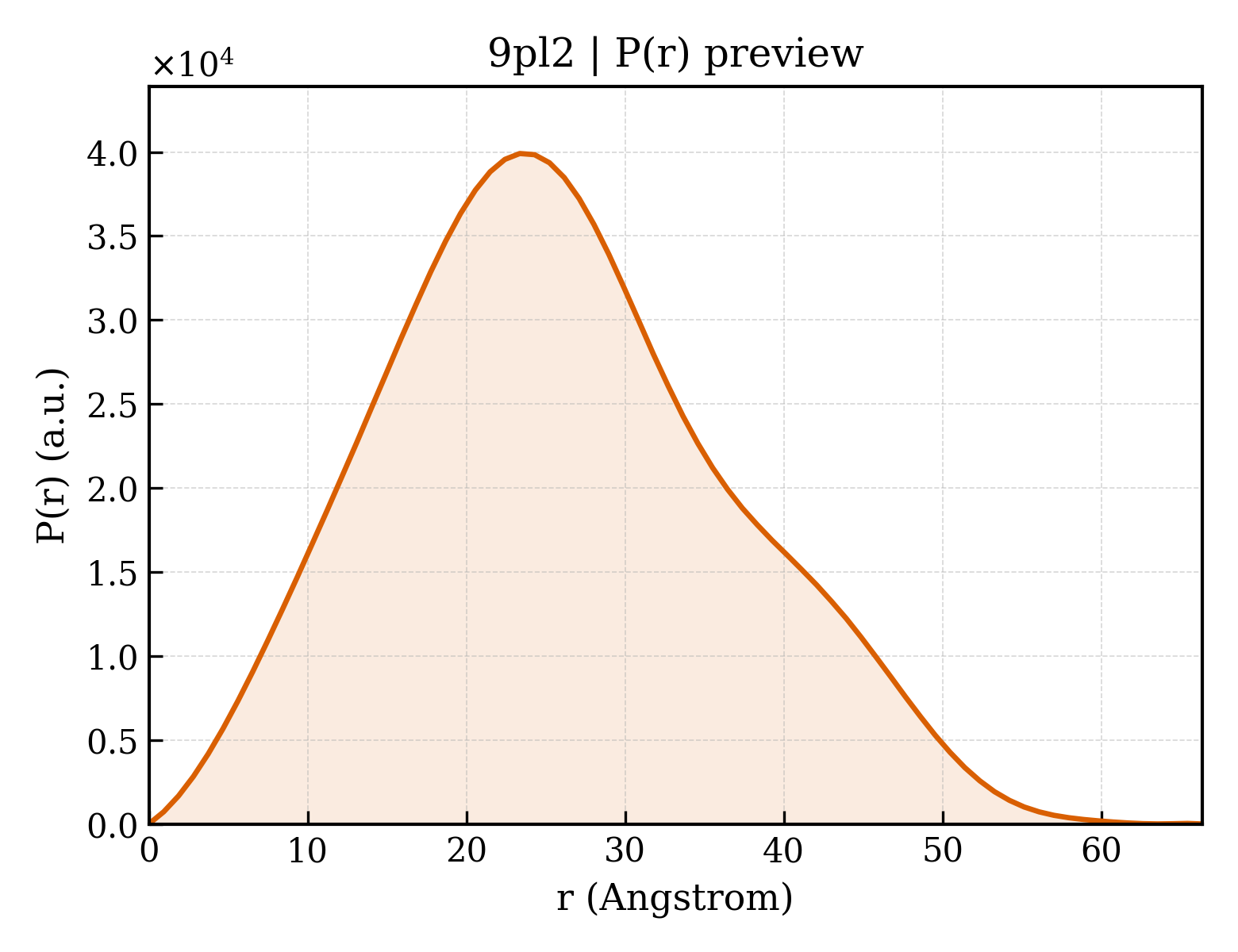

P(r) Distribution
1. Structure Basics
| entry_id | 9pl2 |
| deposition_date | 2025-07-15 |
| last_revision | 2025-07-23 |
| title | Crystal structure of a SnoaL-like domain-containing protein from Mycobacterium ulcerans |
| keywords | SSGCID, STRUCTURAL GENOMICS, SEATTLE STRUCTURAL GENOMICS CENTER FOR INFECTIOUS DISEASE, SnoaL-like domain, ISOMERASE; ISOMERASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.84 Å |
| rg_electron | 18.70 Å |
| i0 | 13375100.00 |
| molecular_weight | 27424.0 kDa |
| excluded_volume | 34246 ų |
| envelope_volume | 39857 ų |
| shell_volume | 18208 ų |
| envelope_diameter | 64.3 Å |
| shell_rg | 24.56 Å |
| envelope_rg | 18.93 Å |
| shape_rg | 18.67 Å |
| total_rg | 19.64 Å |
| total_atoms | 1936 |
| n_residues | 238 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 66.4 Å |
| rg_real | 19.79 Å |
| rg_real_error | 0.43 Å |
| i0_real | 1.3380e+07 |
| i0_real_error | 1.9400e+05 |
| rg_reciprocal | 19.80 Å |
| i0_reciprocal | 13380000.0000 |
| total_estimate | 0.8685 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 23.4 Å |
| skewness | 0.291 |
| kurtosis | -0.376 |
| angular_range | — – 0.4000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2074000.0000 |
| n_real_points | 72 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.765; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.997 |
