9yaa
Crystal structure of a SnoaL-like domain-containing protein from Mycobacterium ulcerans (Orthorhombic C form)

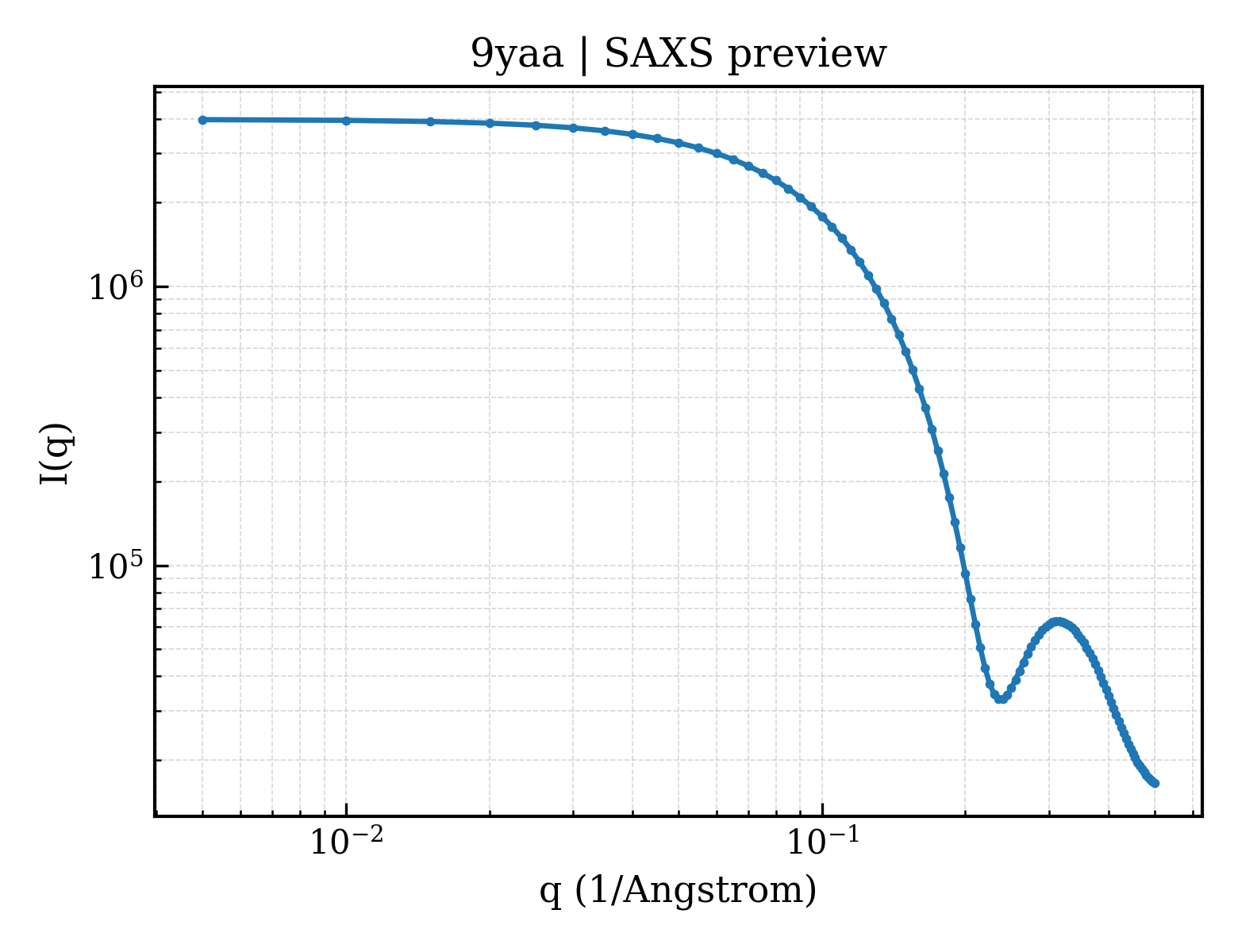

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9yaa |
| deposition_date | 2025-09-15 |
| last_revision | 2025-09-24 |
| title | Crystal structure of a SnoaL-like domain-containing protein from Mycobacterium ulcerans (Orthorhombic C form) |
| keywords | SSGCID, STRUCTURAL GENOMICS, SEATTLE STRUCTURAL GENOMICS CENTER FOR INFECTIOUS DISEASE, SnoaL-like domain, ISOMERASE; ISOMERASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.31 Å |
| rg_electron | 13.81 Å |
| i0 | 3975850.00 |
| molecular_weight | 14177.0 kDa |
| excluded_volume | 17786 ų |
| envelope_volume | 19840 ų |
| shell_volume | 12229 ų |
| envelope_diameter | 49.4 Å |
| shell_rg | 19.57 Å |
| envelope_rg | 14.08 Å |
| shape_rg | 13.79 Å |
| total_rg | 15.09 Å |
| total_atoms | 1001 |
| n_residues | 119 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 49.5 Å |
| rg_real | 15.18 Å |
| rg_real_error | 0.27 Å |
| i0_real | 3.9760e+06 |
| i0_real_error | 4.4040e+04 |
| rg_reciprocal | 15.19 Å |
| i0_reciprocal | 3976000.0000 |
| total_estimate | 0.8742 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 21.3 Å |
| skewness | 0.076 |
| kurtosis | -0.326 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 833400.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.798; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.970 |
