133l
ROLE OF ARG 115 IN THE CATALYTIC ACTION OF HUMAN LYSOZYME. X-RAY STRUCTURE OF HIS 115 AND GLU 115 MUTANTS
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 133l |
| deposition_date | 1993-06-01 |
| title | ROLE OF ARG 115 IN THE CATALYTIC ACTION OF HUMAN LYSOZYME. X-RAY STRUCTURE OF HIS 115 AND GLU 115 MUTANTS |
| keywords | HYDROLASE(O-GLYCOSYL); HYDROLASE(O-GLYCOSYL) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.39 Å |
| rg_electron | 14.06 Å |
| i0 | 4804480.00 |
| molecular_weight | 14689.0 kDa |
| excluded_volume | 17931 ų |
| envelope_volume | 19849 ų |
| shell_volume | 12116 ų |
| envelope_diameter | 50.0 Å |
| shell_rg | 19.73 Å |
| envelope_rg | 14.32 Å |
| shape_rg | 14.04 Å |
| total_rg | 15.14 Å |
| total_atoms | 1028 |
| n_residues | 130 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

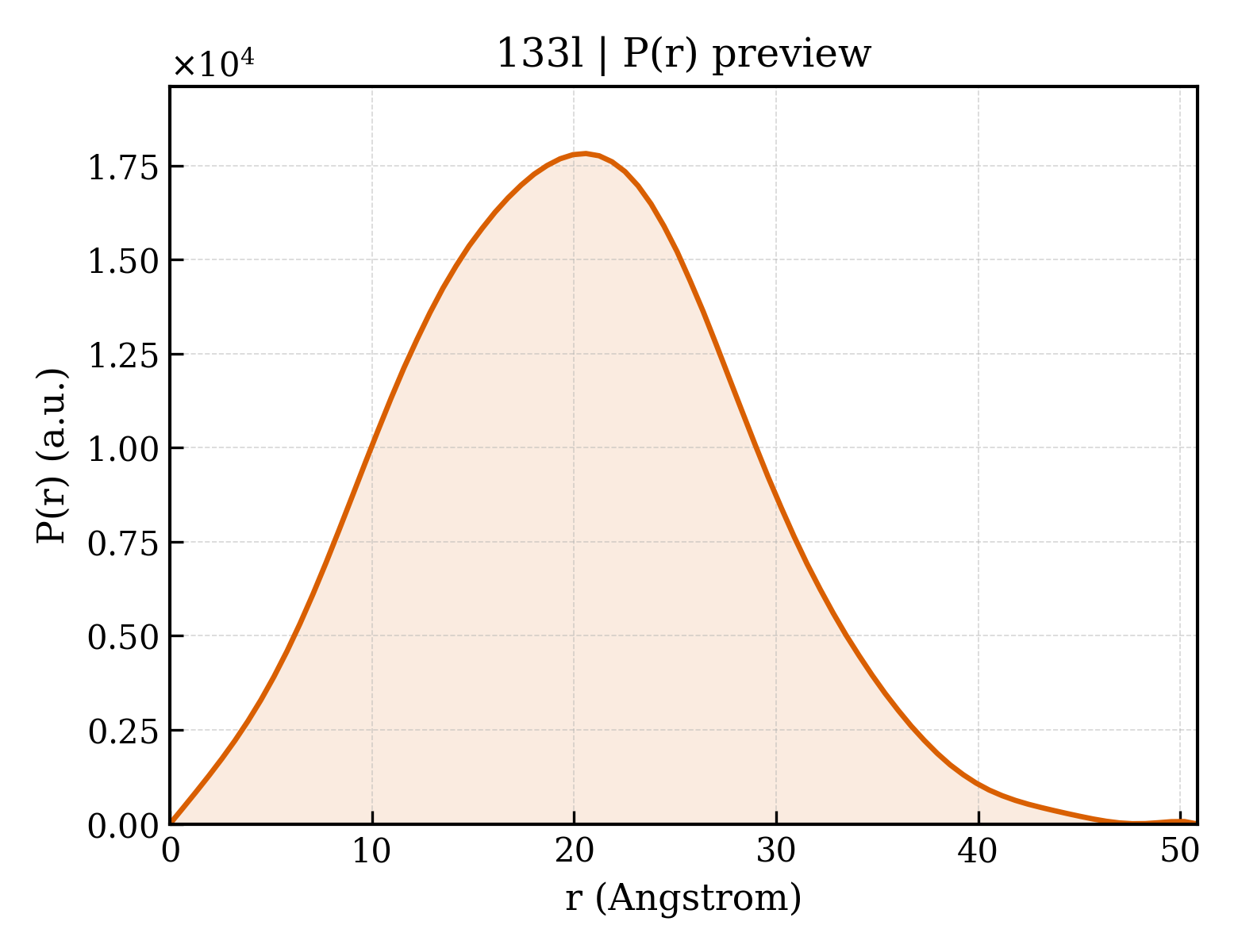

3. P(r) Analysis (GNOM)
| dmax | 50.8 Å |
| rg_real | 15.32 Å |
| rg_real_error | 0.27 Å |
| i0_real | 4.8040e+06 |
| i0_real_error | 5.3340e+04 |
| rg_reciprocal | 15.32 Å |
| i0_reciprocal | 4804000.0000 |
| total_estimate | 0.8807 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 20.6 Å |
| skewness | 0.177 |
| kurtosis | -0.303 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 752800.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.822; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.981 |
