1b5y

;CONTRIBUTION OF HYDROGEN BONDS TO THE CONFORMATIONAL STABILITY OF HUMAN LYSOZYME: CALORIMETRY AND X-RAY ANALYSIS OF SIX SER->ALA MUTANTS ;

Method: X-RAY DIFFRACTION D_max: 51.4 Å Quality: GOOD

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	1b5y
deposition_date	1999-01-11
title	;CONTRIBUTION OF HYDROGEN BONDS TO THE CONFORMATIONAL STABILITY OF HUMAN LYSOZYME: CALORIMETRY AND X-RAY ANALYSIS OF SIX SER->ALA MUTANTS ;
keywords	HYDROGEN BOND, STABILITY, HYDROLASE; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	15.57 Å
rg_electron	14.21 Å
i0	4825360.00
molecular_weight	14716.0 kDa
excluded_volume	18004 Å³
envelope_volume	20603 Å³
shell_volume	12384 Å³
envelope_diameter	49.9 Å
shell_rg	19.93 Å
envelope_rg	14.53 Å
shape_rg	14.19 Å
total_rg	15.36 Å
total_atoms	1029
n_residues	130
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

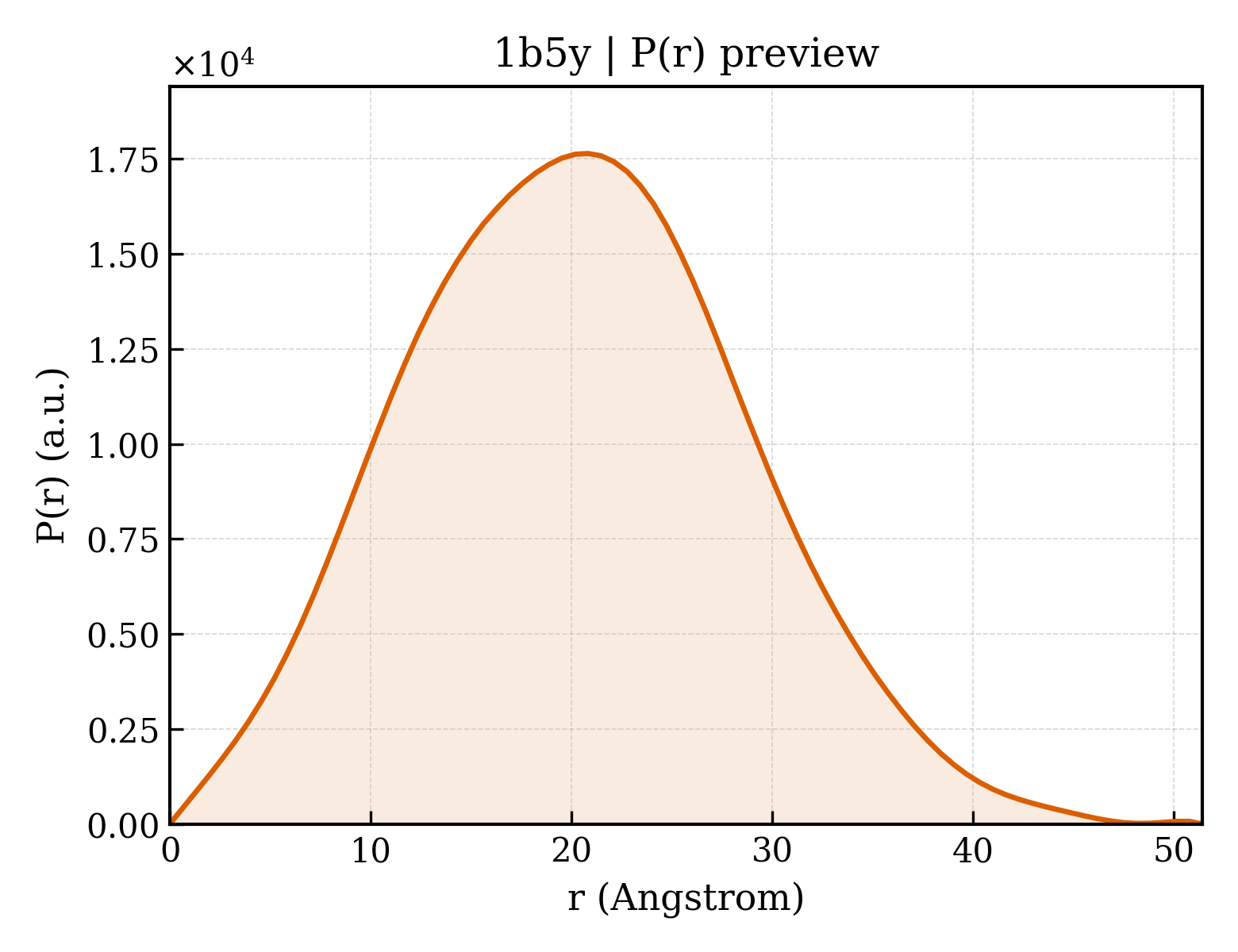

3. P(r) Analysis (GNOM)

dmax	51.4 Å
rg_real	15.49 Å
rg_real_error	0.30 Å
i0_real	4.8250e+06
i0_real_error	5.8530e+04
rg_reciprocal	15.50 Å
i0_reciprocal	4825000.0000
total_estimate	0.8805
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	20.8 Å
skewness	0.187
kurtosis	-0.289
angular_range	— – 0.5000 Å⁻¹
current_alpha	0.0000
highest_alpha	847800.0000
n_real_points	80
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.820; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.982

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

▶

6. Citations (7)

;Contribution of hydrogen bonds to the conformational stability of human lysozyme: calorimetry and X-ray analysis of six Ser --> Ala mutants. ;

Biochemistry (1999)

PMID: 10350481 · DOI: 10.1021/bi9901228 PRIMARY

;A General Rule for the Relationship between Hydrophobic Effect and Conformational Stability of a Protein: Stability and Structure of a Series of Hydrophobic Mutants of Human Lysozyme ;

J.Mol.Biol. (1998)

;Contribution of Hydrogen Bonds to the Conformational Stability of Human Lysozyme: Calorimetry and X-Ray Analysis of Six Tyr->Phe Mutants ;

Biochemistry (1998)

;Contribution of Hydrophobic Effect Valine Mutants to the Stability of Human Lysozyme: Calorimetric Studies and X-Ray Structural Analyses of the Nine Valine to Alanine Mutants ;

Biochemistry (1997)

Contribution of Water Molecules in the Interior of a Protein to the Conformational Stability

J.Mol.Biol. (1997)

The Structure, Stability, and Folding Process of Amyloidogenic Mutant Human Lysozyme

J.Biochem.(TOKYO) (1996)

;Contribution of Hydrophobic Residues to the Stability of Human Lysozyme: Calorimetric Studies and X-Ray Structural Analysis of the Five Isoleucine to Valine Mutants ;

J.Mol.Biol. (1995)

▶

length_a	56.980 Å
length_b	61.190 Å
length_c	33.950 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 21 21 21
int_tables_number	19
crystal_system	—

resolution	2.200 Å
resolution_low	8.000 Å
r_factor	0.1480
r_work	0.1480
r_free	—

description	PROTEIN (LYSOZYME)
formula_weight	14704.7 kDa
ec_number	3.2.1.17
mutation	S36A
src_method	man
entity_count	1

type	polypeptide(L)
strand_id	A
atom_count	1197

;CONTRIBUTION OF HYDROGEN BONDS TO THE CONFORMATIONAL STABILITY OF HUMAN LYSOZYME: CALORIMETRY AND X-RAY ANALYSIS OF SIX SER->ALA MUTANTS ;

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (3)

Entity 1 polymer

Polymer

Source

Entity 2 non-polymer

Entity 3 water

6. Citations (7)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Saccharomyces cerevisiae

description	SODIUM ION
formula_weight	23.0 kDa
src_method	syn
entity_count	1

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	168
