1a33
PEPTIDYLPROLYL ISOMERASE, CYCLOPHILIN-LIKE DOMAIN FROM BRUGIA MALAYI

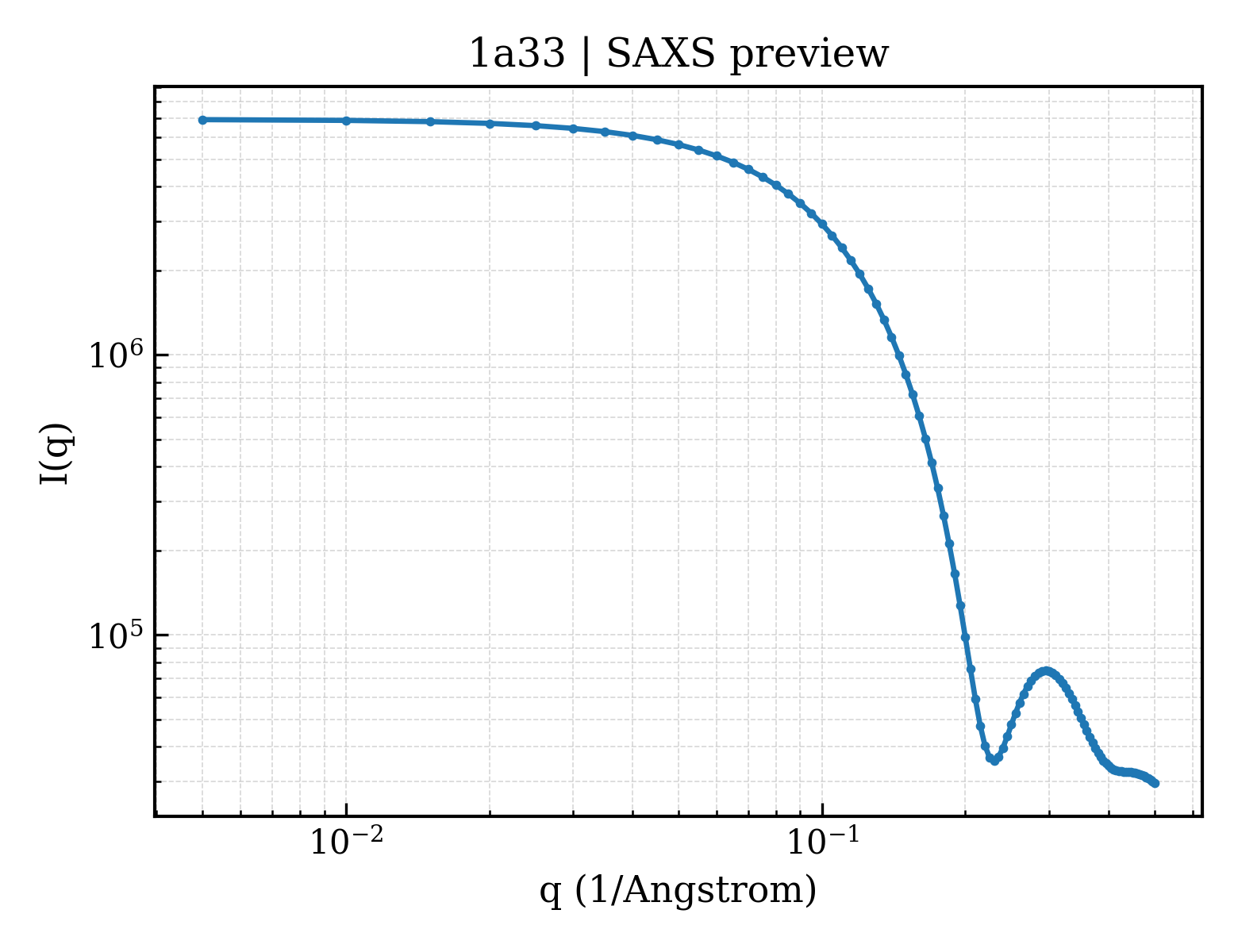

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1a33 |
| deposition_date | 1998-01-27 |
| title | PEPTIDYLPROLYL ISOMERASE, CYCLOPHILIN-LIKE DOMAIN FROM BRUGIA MALAYI |
| keywords | ISOMERASE, PEPTIDYL-PROLYL CIS-TRANS, PEPTIDYLPROLYL ISOMERASE; ISOMERASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.80 Å |
| rg_electron | 14.68 Å |
| i0 | 6928970.00 |
| molecular_weight | 19075.0 kDa |
| excluded_volume | 23822 ų |
| envelope_volume | 25592 ų |
| shell_volume | 14461 ų |
| envelope_diameter | 50.1 Å |
| shell_rg | 20.88 Å |
| envelope_rg | 14.90 Å |
| shape_rg | 14.65 Å |
| total_rg | 15.84 Å |
| total_atoms | 1338 |
| n_residues | 174 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 49.8 Å |
| rg_real | 15.66 Å |
| rg_real_error | 0.26 Å |
| i0_real | 6.9290e+06 |
| i0_real_error | 7.5740e+04 |
| rg_reciprocal | 15.68 Å |
| i0_reciprocal | 6929000.0000 |
| total_estimate | 0.8880 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 21.4 Å |
| skewness | 0.041 |
| kurtosis | -0.440 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1574000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.853; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.993 |
