SAXSdb — 1a7e

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MYOHEMERYTHRIN

Themiste zostericola

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–118	Mutation：L103N	CL CHLORIDE ION × 2 OFO HYDROXY DIIRON-OXO MOIETY × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7；27% PEG 6K, 100MM HEPES, 1.0M LICL (PH 7.0)	Resolution 1.80 Å R-free 0.227

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1A7E	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1A7D CHLOROMET MYOHEMERYTHRIN FROM THEMISTE ZOSTERICOLA Deposited 1998-03-12	Different mutation/modification Different ligand/ion	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–118（118 aa）	Not recorded	CL CHLORIDE ION × 2 CFO CHLORO DIIRON-OXO MOIETY × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；27% PEG 6K, 100MM HEPES, 1.0M LICL (PH 7.0)	Resolution 1.80 Å R-free 0.227
2IGF CRYSTAL STRUCTURES OF AN ANTIBODY TO A PEPTIDE AND ITS COMPLEX WITH PEPTIDE ANTIGEN AT 2.8 ANGSTROMS Deposited 1991-03-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain P 69–87（19 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.80 Å
2IGF CRYSTAL STRUCTURES OF AN ANTIBODY TO A PEPTIDE AND ITS COMPLEX WITH PEPTIDE ANTIGEN AT 2.8 ANGSTROMS Deposited 1991-03-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain P 69–87（19 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.80 Å
2MHR STRUCTURE OF MYOHEMERYTHRIN IN THE AZIDOMET STATE AT 1.7(SLASH)1.3 ANGSTROMS RESOLUTION Deposited 1987-04-20	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–118（118 aa）	Not recorded	AZI AZIDE ION × 1 SO4 SULFATE ION × 3 FEO MU-OXO-DIIRON × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.30 Å

3 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HEMTM_THEZO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–118； UniProt 1–118

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1a7e
Deposition date deposition_date	1998-03-12
Structure title title	HYDROXOMET MYOHEMERYTHRIN FROM THEMISTE ZOSTERICOLA
Keywords keywords	NONHEME IRON OXYGEN CARRIER, OXYGEN TRANSPORT; OXYGEN TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	14.82 Å
Radius of gyration Rg (electron density) rg_electron	13.72 Å
Forward intensity I(0) i0	3900030.00
Molecular weight molecular_weight	13991.0 kDa
Excluded volume excluded_volume	17452 Å³
Envelope volume envelope_volume	18965 Å³
Hydration-shell volume shell_volume	11798 Å³
Envelope diameter envelope_diameter	49.9 Å
Shell Rg shell_rg	19.44 Å
Envelope Rg envelope_rg	14.11 Å
Shape Rg shape_rg	13.68 Å
Total Rg total_rg	15.00 Å
Total atoms total_atoms	1188
Residues n_residues	118
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

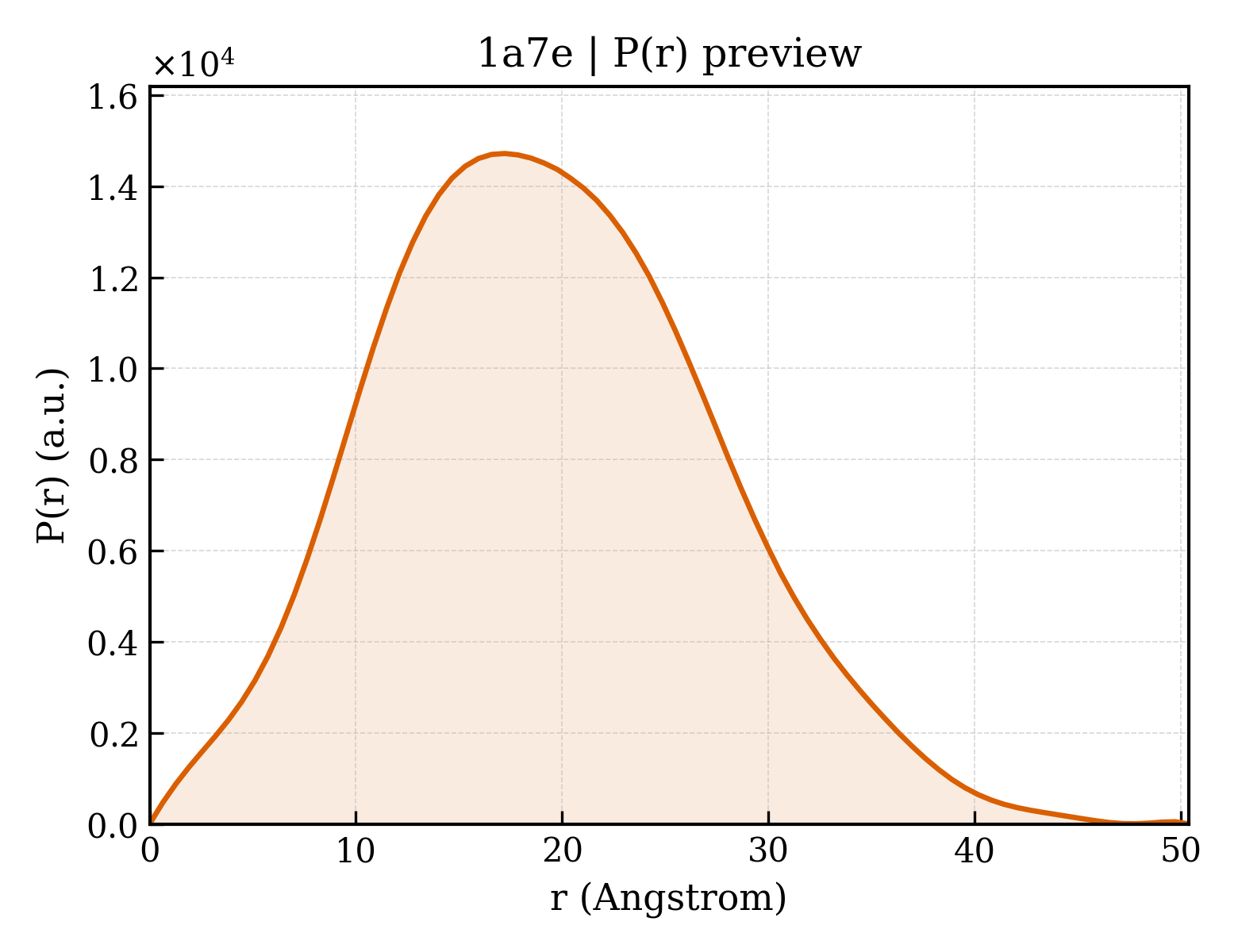

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	50.4 Å
Rg (real space) rg_real	14.76 Å
Rg uncertainty (real space) rg_real_error	0.33 Å
I(0) (real space) i0_real	3.9000e+06
I(0) uncertainty (real space) i0_real_error	4.8320e+04
Rg (reciprocal space) rg_reciprocal	14.77 Å
I(0) (reciprocal space) i0_reciprocal	3900000.0000
Solution quality estimate total_estimate	0.8640
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	17.2 Å
Skewness Skewness skewness	0.269
Kurtosis Kurtosis kurtosis	-0.233
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	988700.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.752; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.981

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	MYOHEMERYTHRIN
Molecular weight formula_weight	13801.7 kDa
Mutation mutation	L103N
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1800

GWEIPEPYVWDESFRVFYEQLDEEHKKIFKGIFDCIRDNSAPNLATLVKVTTNHFTHEEAMMDAAKYSEVVPHKKMHKDFLEKIGGLSAPVDAKNVDYCKEWNVNHIKGTDFKYKGKL

来源 Source

来源生物 organism	Themiste zostericola
NCBI Class编号 ncbi_taxonomy_id	6437
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	HYDROXY DIIRON-OXO MOIETY
Molecular weight formula_weight	144.7 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	204

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1a7ea_
Class class	a — All alpha proteins
Fold Fold fold	a.24 — Four-helical up-and-down bundle
Superfamily Superfamily superfamily	a.24.4 — Hemerythrin-like
Family Family family	a.24.4.1 — Hemerythrin-like

CATH v4.4 (1 domains)

Domain ID domain_id	1a7eA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	50 — Hemerythrin-like

▶

8. Citations (1)

▶

Unit-cell length a length_a	41.885 Å
Unit-cell length b length_b	81.170 Å
Unit-cell length c length_c	36.685 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1860
R_work r_work	0.1860
R_free r_free	0.2270

fit	/app/data/saxs_computation/a7/1a7e/1a7e.fit
pddf	/app/data/pr_computation/a7/1a7e/1a7e.pr.out
profile	/app/data/saxs_computation/a7/1a7e/1a7e.dat
