1a7d
CHLOROMET MYOHEMERYTHRIN FROM THEMISTE ZOSTERICOLA

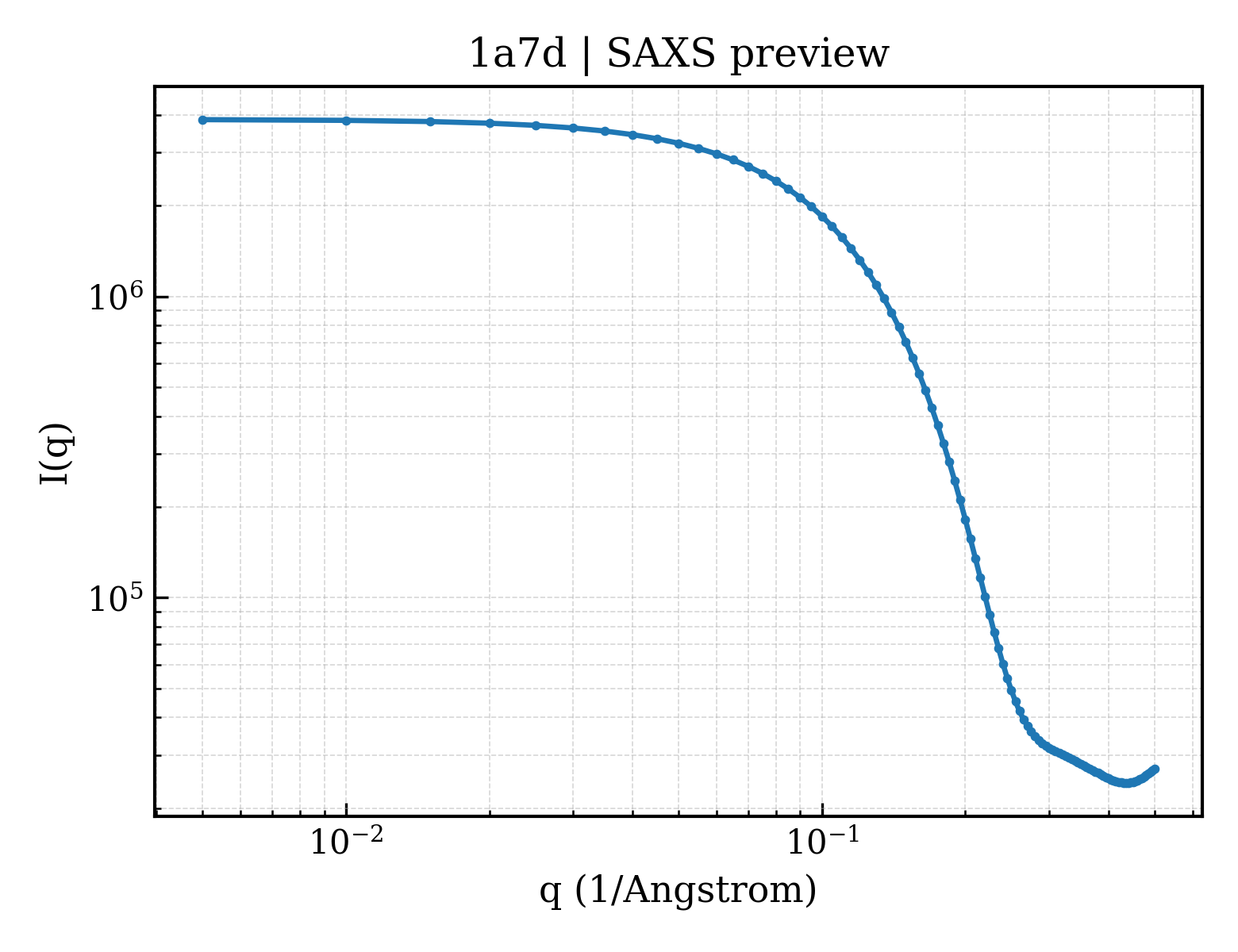

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1a7d |
| deposition_date | 1998-03-12 |
| title | CHLOROMET MYOHEMERYTHRIN FROM THEMISTE ZOSTERICOLA |
| keywords | NONHEME IRON OXYGEN CARRIER, OXYGEN TRANSPORT; OXYGEN TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.82 Å |
| rg_electron | 13.69 Å |
| i0 | 3868590.00 |
| molecular_weight | 14009.0 kDa |
| excluded_volume | 17507 ų |
| envelope_volume | 19022 ų |
| shell_volume | 11827 ų |
| envelope_diameter | 48.0 Å |
| shell_rg | 19.33 Å |
| envelope_rg | 14.08 Å |
| shape_rg | 13.67 Å |
| total_rg | 14.93 Å |
| total_atoms | 1185 |
| n_residues | 118 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 48.5 Å |
| rg_real | 14.75 Å |
| rg_real_error | 0.36 Å |
| i0_real | 3.8690e+06 |
| i0_real_error | 4.4940e+04 |
| rg_reciprocal | 14.76 Å |
| i0_reciprocal | 3869000.0000 |
| total_estimate | 0.8793 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 47.9 Å |
| skewness | 0.244 |
| kurtosis | -0.279 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 845800.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.818; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.976 |
