SAXSdb — 2igf

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PEPTIDE (RESIDUES 69-87 OF MYOHEMERYTHRIN)

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain P； UniProt 69–87	Not recorded	IGG1-KAPPA B13I2 FAB (LIGHT CHAIN) × 1 IGG1-KAPPA B13I2 FAB (HEAVY CHAIN) × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.80 Å
2	Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain P； UniProt 69–87	Not recorded	IGG1-KAPPA B13I2 FAB (LIGHT CHAIN) × 2 IGG1-KAPPA B13I2 FAB (HEAVY CHAIN) × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.80 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2IGF	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1A7D CHLOROMET MYOHEMERYTHRIN FROM THEMISTE ZOSTERICOLA Deposited 1998-03-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–118（118 aa）	Not recorded	CL CHLORIDE ION × 2 CFO CHLORO DIIRON-OXO MOIETY × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；27% PEG 6K, 100MM HEPES, 1.0M LICL (PH 7.0)	Resolution 1.80 Å R-free 0.227
1A7E HYDROXOMET MYOHEMERYTHRIN FROM THEMISTE ZOSTERICOLA Deposited 1998-03-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–118（118 aa）	Mutation：L103N	CL CHLORIDE ION × 2 OFO HYDROXY DIIRON-OXO MOIETY × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；27% PEG 6K, 100MM HEPES, 1.0M LICL (PH 7.0)	Resolution 1.80 Å R-free 0.227
2MHR STRUCTURE OF MYOHEMERYTHRIN IN THE AZIDOMET STATE AT 1.7(SLASH)1.3 ANGSTROMS RESOLUTION Deposited 1987-04-20	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–118（118 aa）	Not recorded	AZI AZIDE ION × 1 SO4 SULFATE ION × 3 FEO MU-OXO-DIIRON × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.30 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HEMM_THEZO
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain P； PDBConstruct 1–19； UniProt 69–87

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2igf
Deposition date deposition_date	1991-03-21
Structure title title	CRYSTAL STRUCTURES OF AN ANTIBODY TO A PEPTIDE AND ITS COMPLEX WITH PEPTIDE ANTIGEN AT 2.8 ANGSTROMS
Keywords keywords	IMMUNOGLOBULIN; IMMUNOGLOBULIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	26.13 Å
Radius of gyration Rg (electron density) rg_electron	25.02 Å
Forward intensity I(0) i0	41104400.00
Molecular weight molecular_weight	48865.0 kDa
Excluded volume excluded_volume	60815 Å³
Envelope volume envelope_volume	75760 Å³
Hydration-shell volume shell_volume	25493 Å³
Envelope diameter envelope_diameter	82.6 Å
Shell Rg shell_rg	32.02 Å
Envelope Rg envelope_rg	24.65 Å
Shape Rg shape_rg	24.98 Å
Total Rg total_rg	25.91 Å
Total atoms total_atoms	3436
Residues n_residues	436
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	80.3 Å
Rg (real space) rg_real	26.11 Å
Rg uncertainty (real space) rg_real_error	0.50 Å
I(0) (real space) i0_real	4.1100e+07
I(0) uncertainty (real space) i0_real_error	5.2670e+05
Rg (reciprocal space) rg_reciprocal	26.12 Å
I(0) (reciprocal space) i0_reciprocal	41100000.0000
Solution quality estimate total_estimate	0.9075
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	27.6 Å
Skewness Skewness skewness	0.269
Kurtosis Kurtosis kurtosis	-0.570
Angular range angular_range	— – 0.3050 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	7535000.0000
Real-space data points n_real_points	62
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.973; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.885

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	IGG1-KAPPA B13I2 FAB (LIGHT CHAIN)
Molecular weight formula_weight	24148.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L
Atom count atom_count	3436

DVLMTQTPLSLPVSLGDQASISCRSNQTILLSDGDTYLEWYLQKPGQSPKLLIYKVSNRFSGVPDRFSGSGSGTDFTLKISRVEAEDLGVYYCFQGSHVPPTFGGGTKLEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090

Entity 2 Entity 2 polymer

Description description	IGG1-KAPPA B13I2 FAB (HEAVY CHAIN)
Molecular weight formula_weight	23807.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

EVQLVESGGDLVKPGGSLKLSCAASGFTFSRCAMSWVRQTPEKRLEWVAGISSGGSYTFYPDTVKGRFIISRNNARNTLSLQMSSLRSEDTAIYYCTRYSSDPFYFDYWGQGTTLTVSSAKTTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSPRPSETVTCNVAHPASSTKVDKKIVPRDC

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090

Entity 3 Entity 3 polymer

Description description	PEPTIDE (RESIDUES 69-87 OF MYOHEMERYTHRIN)
Molecular weight formula_weight	2211.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P

EVVPHKKMHKDFLEKIGGL

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	1

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2igfh1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d2igfh2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d2igfl1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d2igfl2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (4 domains)

Domain ID domain_id	2igfH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2igfH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2igfL01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2igfL02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (2)

▶

Unit-cell length a length_a	142.500 Å
Unit-cell length b length_b	142.500 Å
Unit-cell length c length_c	101.500 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 63 2 2
Space-group number int_tables_number	182
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	—
R_work r_work	0.2200
R_free r_free	—

fit	/app/data/saxs_computation/ig/2igf/2igf.fit
pddf	/app/data/pr_computation/ig/2igf/2igf.pr.out
profile	/app/data/saxs_computation/ig/2igf/2igf.dat

CRYSTAL STRUCTURES OF AN ANTIBODY TO A PEPTIDE AND ITS COMPLEX WITH PEPTIDE ANTIGEN AT 2.8 ANGSTROMS

1. Protein Identity and Related Structures Protein Identity & Related Structures

PEPTIDE (RESIDUES 69-87 OF MYOHEMERYTHRIN)

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

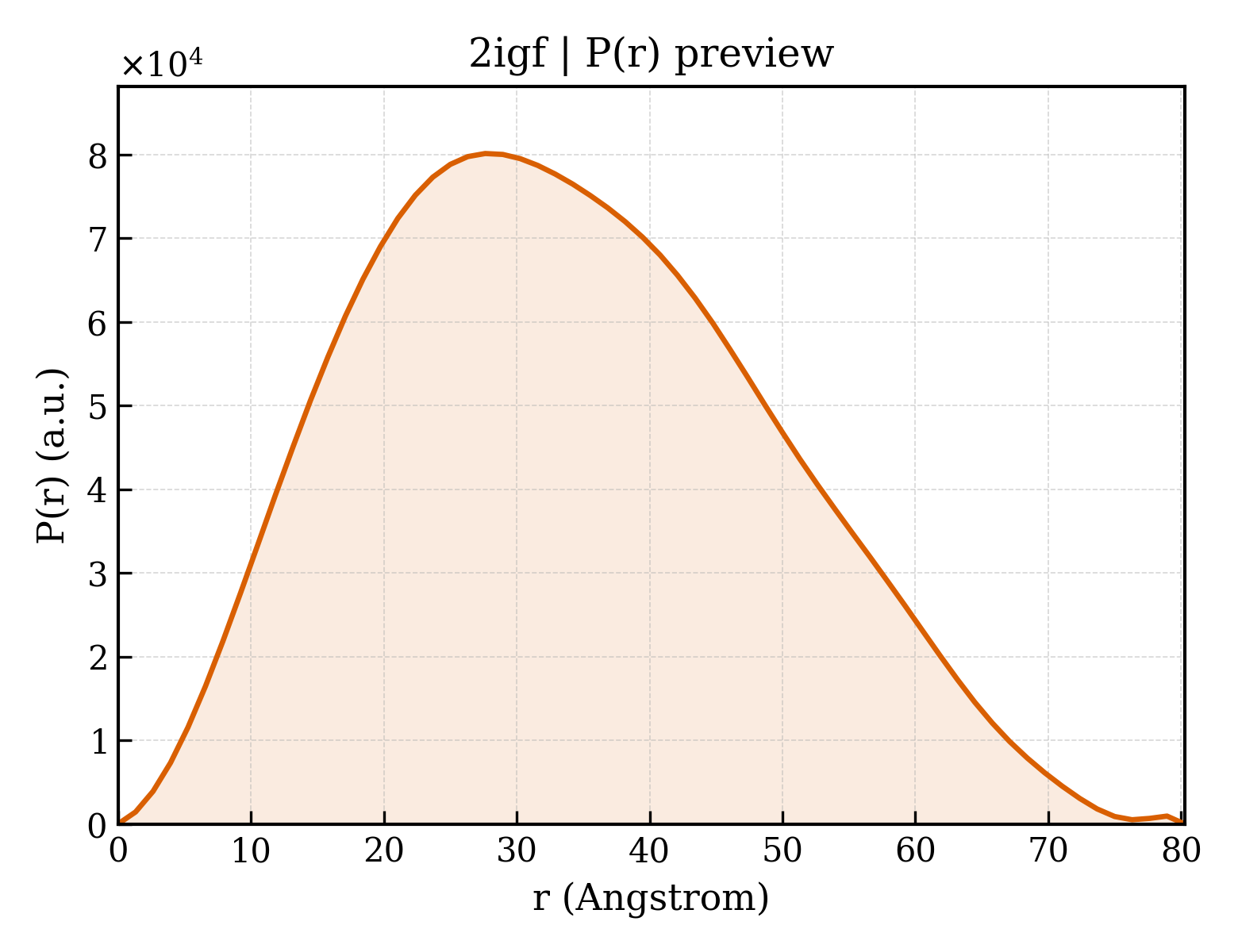

P(r) Distance Distribution P(r) Distribution
