;FV FRAGMENT OF MOUSE MONOCLONAL ANTIBODY D1.3 (BALB/C, IGG1, K) R96L DELETION MUTANT ON VARIANT FOR CHAIN L GLU81->ASP AND CHAIN H LEU312->VAL ;

entry_id	1a7o
deposition_date	1998-03-16
title	;FV FRAGMENT OF MOUSE MONOCLONAL ANTIBODY D1.3 (BALB/C, IGG1, K) R96L DELETION MUTANT ON VARIANT FOR CHAIN L GLU81->ASP AND CHAIN H LEU312->VAL ;
keywords	IMMUNOGLOBULIN, DELETION MUTANT; IMMUNOGLOBULIN
method	X-RAY DIFFRACTION

rg_guinier	18.30 Å
rg_electron	17.30 Å
i0	10605700.00
molecular_weight	24013.0 kDa
excluded_volume	29941 ų
envelope_volume	33729 ų
shell_volume	16582 ų
envelope_diameter	58.0 Å
shell_rg	23.10 Å
envelope_rg	17.44 Å
shape_rg	17.26 Å
total_rg	18.32 Å
total_atoms	1694
n_residues	222
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	56.8 Å
rg_real	18.23 Å
rg_real_error	0.27 Å
i0_real	1.0610e+07
i0_real_error	1.2010e+05
rg_reciprocal	18.24 Å
i0_reciprocal	10610000.0000
total_estimate	0.9060
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	23.0 Å
skewness	0.202
kurtosis	-0.444
angular_range	— – 0.4350 Å−1
current_alpha	0.0000
highest_alpha	3145000.0000
n_real_points	75
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.930; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.986

Unit Cell

length_a	90.423 Å
length_b	90.423 Å
length_c	56.661 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

Symmetry

space_group	P 43 21 2
int_tables_number	96
crystal_system	—

Refinement

resolution	2.000 Å
resolution_low	6.000 Å
r_factor	—
r_work	0.1670
r_free	—

Diffraction

temperature

269.0 K

Files (7)

• pr_distribution /app/data/pr_computation/a7/1a7o/pr_distribution.json
• pr_output /app/data/pr_computation/a7/1a7o/1a7o.pr.out

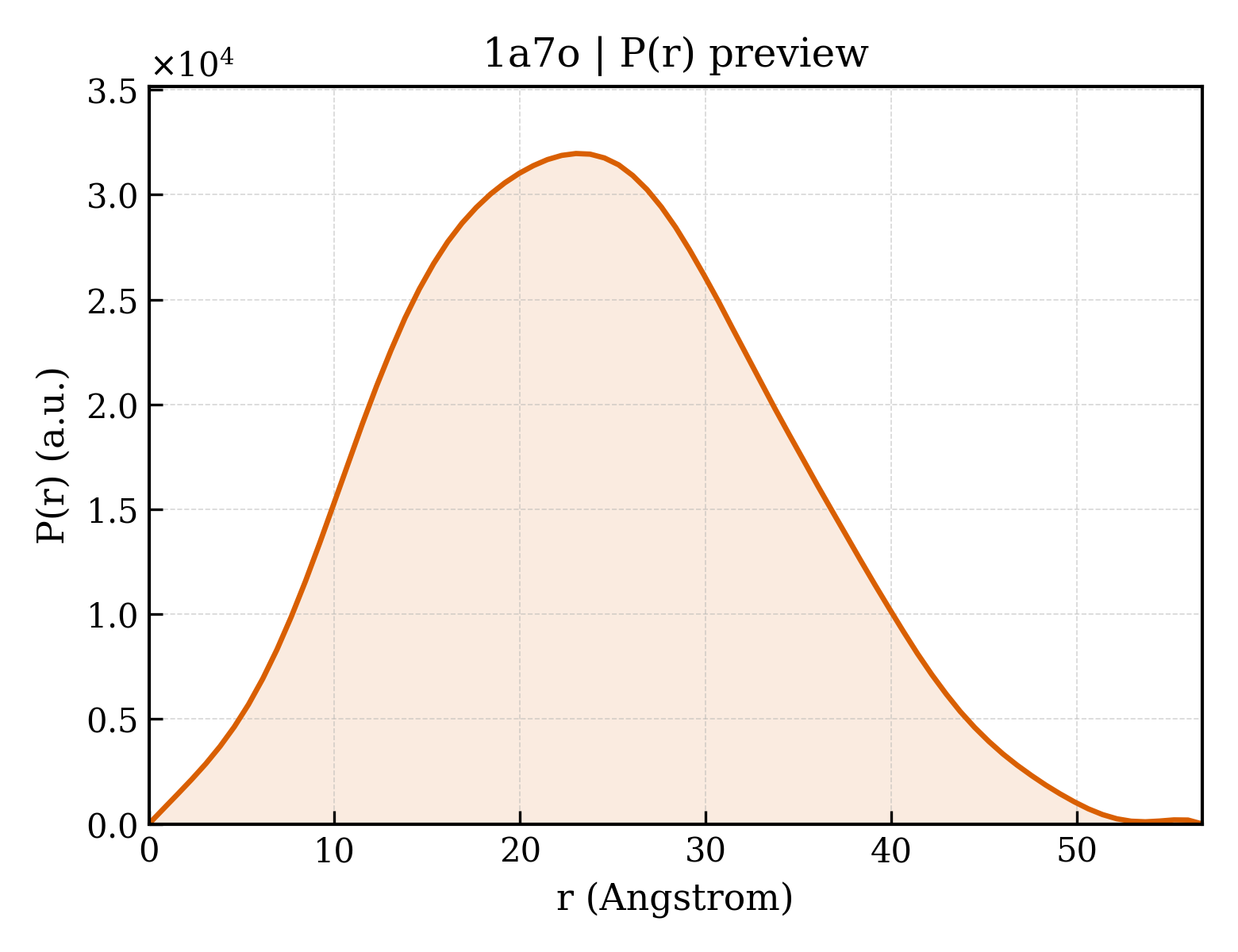

• pr_plot /app/data/visualization/pr_computation/a7/1a7o/1a7o_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/a7/1a7o/1a7o.dat
• saxs_fit /app/data/saxs_computation/a7/1a7o/1a7o.fit
• saxs_log /app/data/saxs_computation/a7/1a7o/1a7o.log
• saxs_plot /app/data/visualization/saxs_computation/a7/1a7o/1a7o_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/a7/1a7o/1a7o.fit
pddf	/app/data/pr_computation/a7/1a7o/1a7o.pr.out
profile	/app/data/saxs_computation/a7/1a7o/1a7o.dat
