1ab0
C1G/V32D/F57H MUTANT OF MURINE ADIPOCYTE LIPID BINDING PROTEIN AT PH 4.5
SAXS Profile

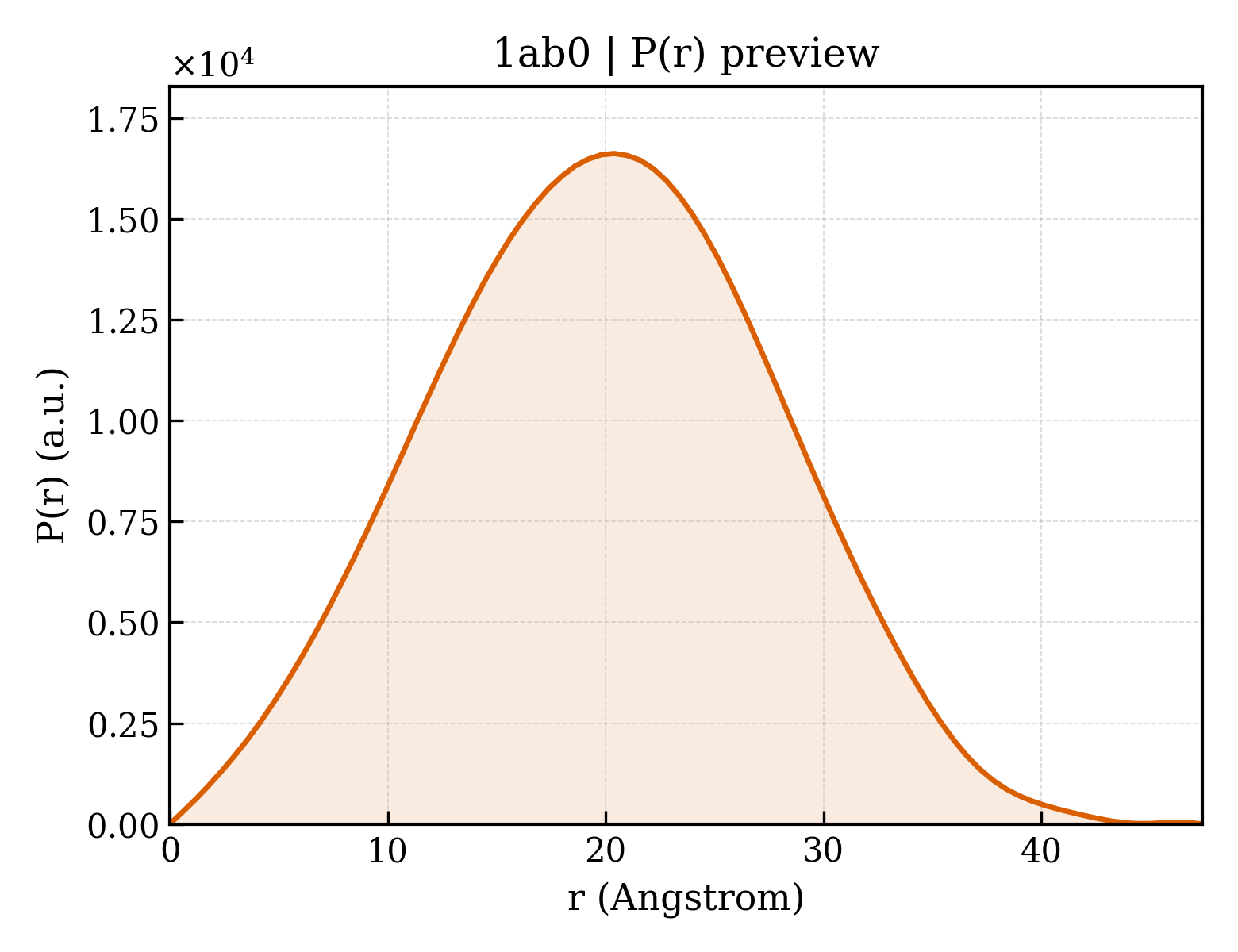

P(r) Distribution
1. Structure Basics
| entry_id | 1ab0 |
| deposition_date | 1997-01-30 |
| title | C1G/V32D/F57H MUTANT OF MURINE ADIPOCYTE LIPID BINDING PROTEIN AT PH 4.5 |
| keywords | FATTY ACID BINDING PROTEIN; FATTY ACID BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.28 Å |
| rg_electron | 13.96 Å |
| i0 | 4277210.00 |
| molecular_weight | 14463.0 kDa |
| excluded_volume | 18093 ų |
| envelope_volume | 20913 ų |
| shell_volume | 12735 ų |
| envelope_diameter | 45.2 Å |
| shell_rg | 19.78 Å |
| envelope_rg | 14.03 Å |
| shape_rg | 13.95 Å |
| total_rg | 15.20 Å |
| total_atoms | 1014 |
| n_residues | 131 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 47.4 Å |
| rg_real | 15.14 Å |
| rg_real_error | 0.27 Å |
| i0_real | 4.2770e+06 |
| i0_real_error | 4.9420e+04 |
| rg_reciprocal | 15.15 Å |
| i0_reciprocal | 4277000.0000 |
| total_estimate | 0.8934 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 20.4 Å |
| skewness | 0.042 |
| kurtosis | -0.420 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 873500.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.877; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.996 |
