SAXSdb — 1lie

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ADIPOCYTE LIPID-BINDING PROTEIN

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–131	Non-standard monomer：Yes (specific site not provided by mmCIF)	PLM PALMITIC ACID × 2 PPI PROPANOIC ACID × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 1.60 Å R-free 0.239

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1LIE	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1A18 PHENANTHROLINE MODIFIED MURINE ADIPOCYTE LIPID BINDING PROTEIN Deposited 1997-12-23	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–131（131 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.5	Resolution 2.40 Å R-free 0.273
1A2D PYRIDOXAMINE MODIFIED MURINE ADIPOCYTE LIPID BINDING PROTEIN Deposited 1997-12-29	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–131（131 aa） Chain B 1–131（131 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.5	Resolution 2.40 Å R-free 0.273
1AB0 C1G/V32D/F57H MUTANT OF MURINE ADIPOCYTE LIPID BINDING PROTEIN AT PH 4.5 Deposited 1997-01-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–131（130 aa）	Mutation：C1G, V32D, F57H	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.5；2.4M AMSO4 50MM NAKPO4 100 MM ACETATE, PH 4.5	Resolution 1.90 Å R-free 0.253
1ACD V32D/F57H MUTANT OF MURINE ADIPOCYTE LIPID BINDING PROTEIN Deposited 1997-02-06	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–131（130 aa）	Mutation：C1G, V32D, F57H Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.4；2.4M PHOSPHATE, PH 6.4	Resolution 2.70 Å R-free 0.276
1ADL ADIPOCYTE LIPID BINDING PROTEIN COMPLEXED WITH ARACHIDONIC ACID: X-RAY CRYSTALLOGRAPHIC AND TITRATION CALORIMETRY STUDIES Deposited 1994-03-25	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–132（131 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ACD ARACHIDONIC ACID × 2 PPI PROPANOIC ACID × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.60 Å R-free 0.220
1ALB CRYSTAL STRUCTURE OF RECOMBINANT MURINE ADIPOCYTE LIPID-BINDING PROTEIN Deposited 1992-09-03	Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–131（131 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.50 Å
1G74 Toward changing specificity: adipocyte lipid binding protein mutant, oleic acid bound form Deposited 2000-11-08	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–131（131 aa）	Mutation：I73E,A75V,D77G	PO4 PHOSPHATE ION × 1 OLA OLEIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；291 K；sodium/potassium phosphate, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.70 Å R-free 0.238
1G7N Toward changing specificity: adipocyte lipid binding protein mutant, apo form Deposited 2000-11-10	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–131（131 aa）	Mutation：I73E,A75V,D77G	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；sodium/potassium phosphate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.50 Å R-free 0.225
1LIB THE ADIPOCYTE LIPID-BINDING PROTEIN AT 1.6 ANGSTROMS RESOLUTION: CRYSTAL STRUCTURES OF THE APOPROTEIN AND WITH BOUND SATURATED AND UNSATURATED FATTY ACIDS Deposited 1993-12-21	Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–131（131 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.70 Å
1LIC X-RAY CRYSTALLOGRAPHIC STRUCTURES OF ADIPOCYTE LIPID BINDING PROTEIN COMPLEXED WITH PALMITATE AND HEXADECANESULFONIC ACID. PROPERTIES OF CAVITY BINDING SITES. Deposited 1993-12-21	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–131（131 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	HDS 1-HEXADECANOSULFONIC ACID × 2 PPI PROPANOIC ACID × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.60 Å R-free 0.225
1LID THE ADIPOCYTE LIPID-BINDING PROTEIN AT 1.6 ANGSTROMS RESOLUTION: CRYSTAL STRUCTURES OF THE APOPROTEIN AND WITH BOUND SATURATED AND UNSATURATED FATTY ACIDS Deposited 1993-12-21	Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–131（131 aa）	Not recorded	OLA OLEIC ACID × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.60 Å
1LIF THE ADIPOCYTE LIPID-BINDING PROTEIN AT 1.6 ANGSTROMS RESOLUTION: CRYSTAL STRUCTURES OF THE APOPROTEIN AND WITH BOUND SATURATED AND UNSATURATED FATTY ACIDS Deposited 1993-12-21	Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–131（131 aa）	Not recorded	STE STEARIC ACID × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.60 Å
2ANS ADIPOCYTE LIPID BINDING PROTEIN COMPLEXED WITH 1-ANILINO-8-NAPHTHALENE SULFONATE Deposited 1999-01-19	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–131（131 aa） Chain B 1–131（131 aa）	Not recorded	CL CHLORIDE ION × 1 2AN 8-ANILINO-1-NAPHTHALENE SULFONATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 2.50 Å R-free 0.247
2Q9S Linoleic Acid Bound to Fatty Acid Binding Protein 4 Deposited 2007-06-13	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–132（132 aa）	Not recorded	SO4 SULFATE ION × 2 EIC LINOLEIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1 M Sodium Cacodylate, 0.1 M Ammonium Sulfate, 35% PEG 8000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.30 Å R-free 0.264
2Q9S Linoleic Acid Bound to Fatty Acid Binding Protein 4 Deposited 2007-06-13	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–132（132 aa）	Not recorded	SO4 SULFATE ION × 2 EIC LINOLEIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.1 M Sodium Cacodylate, 0.1 M Ammonium Sulfate, 35% PEG 8000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.30 Å R-free 0.264
2QM9 Troglitazone Bound to Fatty Acid Binding Protein 4 Deposited 2007-07-14	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–132（132 aa） Chain B 1–132（132 aa）	Not recorded	SO4 SULFATE ION × 3 TDZ (5R)-5-(4-{[(2R)-6-HYDROXY-2,5,7,8-TETRAMETHYL-3,4-DIHYDRO-2H-CHROMEN-2-YL]METHOXY}BENZYL)-1,3-THIAZOLIDINE-2,4-DIONE × 2	X-RAY DIFFRACTION X-ray crystallization conditions hanging drop；pH 4.5；298 K；1.6 M ammonium sulfate, 0.1 M sodium acetate, 0.05 M K/Na phosphate, pH 4.5, hanging drop, temperature 298K	Resolution 2.31 Å R-free 0.276
3HK1 Identification and Characterization of a Small Molecule Inhibitor of Fatty Acid Binding Proteins Deposited 2009-05-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–132（131 aa）	Not recorded	B64 4-{[2-(methoxycarbonyl)-5-(2-thienyl)-3-thienyl]amino}-4-oxo-2-butenoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291 K；2.5 M sodium/potassium phosphate, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 1.70 Å R-free 0.195
3JS1 Crystal structure of adipocyte fatty acid binding protein covalently modified with 4-hydroxy-2-nonenal Deposited 2009-09-09	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–132（131 aa） Chain B 2–132（131 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；1.9 M Sodium/potassium phosphate, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 1.81 Å R-free 0.228
3JSQ Crystal structure of adipocyte fatty acid binding protein non-covalently modified with 4-hydroxy-2-nonenal Deposited 2009-09-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–132（131 aa）	Not recorded	CL CHLORIDE ION × 2 HNE (2E,4R)-4-HYDROXYNON-2-ENAL × 2 PO4 PHOSPHATE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；0.1 M HEPES, 1.6 M Sodium/potassium phosphate, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.30 Å R-free 0.263
5C0N Development of a monoclonal antibody targeting secreted aP2 to treat diabetes and fatty liver disease Deposited 2015-06-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–132（132 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；296 K；0.1M Hepes pH 7.5, 0.2M NH2SO4, 16% PEG 4K and 10% isopropanol	Resolution 3.00 Å R-free 0.265
5C0N Development of a monoclonal antibody targeting secreted aP2 to treat diabetes and fatty liver disease Deposited 2015-06-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–132（132 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；296 K；0.1M Hepes pH 7.5, 0.2M NH2SO4, 16% PEG 4K and 10% isopropanol	Resolution 3.00 Å R-free 0.265
5D8J Development of a therapeutic monoclonal antibody targeting secreted aP2 to treat type 2 diabetes. Deposited 2015-08-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–132（132 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；296 K；100mM 2-(N-morpholino)ethanesulfonic acid, 150mM ammonium sulfate, 24% PEG 4000	Resolution 3.00 Å R-free 0.269
7FWT Crystal Structure of apo mouse FABP4 Deposited 2023-04-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–132（132 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；protein in 25mM Tris/HCl pH 7.5 100mM NaCl, see also PMID 27658368	Resolution 1.54 Å R-free 0.197
7FWT Crystal Structure of apo mouse FABP4 Deposited 2023-04-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–132（132 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；protein in 25mM Tris/HCl pH 7.5 100mM NaCl, see also PMID 27658368	Resolution 1.54 Å R-free 0.197
7FZG Crystal Structure of apo mouse FABP4, C-centered orthorhombic form Deposited 2023-04-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–132（132 aa）	Not recorded	FLC CITRATE ANION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；protein in 25mM Tris/HCl pH 7.5 100mM NaCl, see also PMID 27658368	Resolution 1.49 Å R-free 0.170

22 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	FABPA_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–131； UniProt 1–131

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1lie
Deposition date deposition_date	1993-12-21
Structure title title	X-RAY CRYSTALLOGRAPHIC STRUCTURES OF ADIPOCYTE LIPID BINDING PROTEIN COMPLEXED WITH PALMITATE AND HEXADECANESULFONIC ACID. PROPERTIES OF CAVITY BINDING SITES
Keywords keywords	LIPID-BINDING PROTEIN, LIPID BINDING PROTEIN; LIPID BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

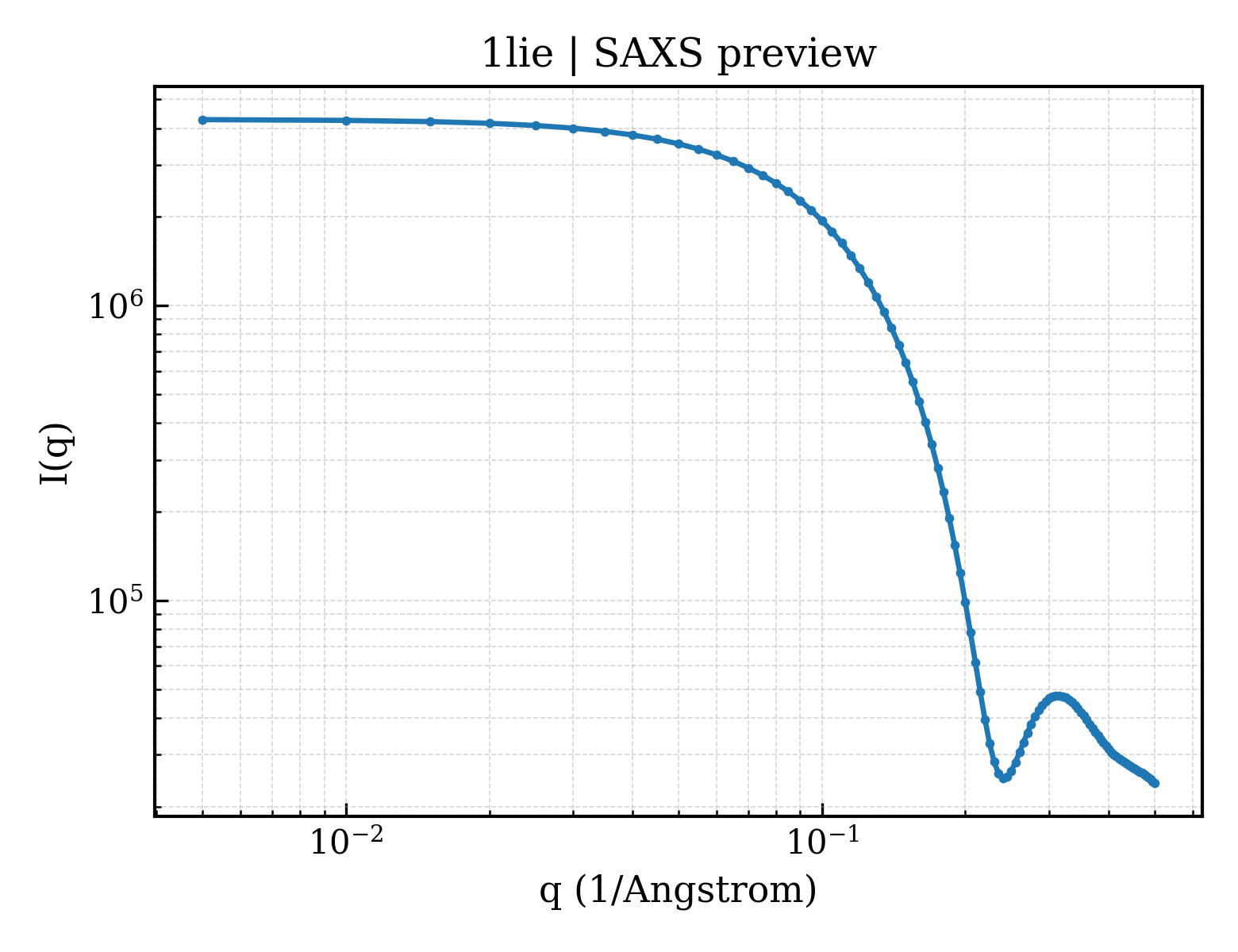

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.20 Å
Radius of gyration Rg (electron density) rg_electron	13.90 Å
Forward intensity I(0) i0	4282240.00
Molecular weight molecular_weight	14884.0 kDa
Excluded volume excluded_volume	18798 Å³
Envelope volume envelope_volume	21070 Å³
Hydration-shell volume shell_volume	12797 Å³
Envelope diameter envelope_diameter	45.6 Å
Shell Rg shell_rg	19.78 Å
Envelope Rg envelope_rg	14.06 Å
Shape Rg shape_rg	13.89 Å
Total Rg total_rg	15.16 Å
Total atoms total_atoms	1042
Residues n_residues	130
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

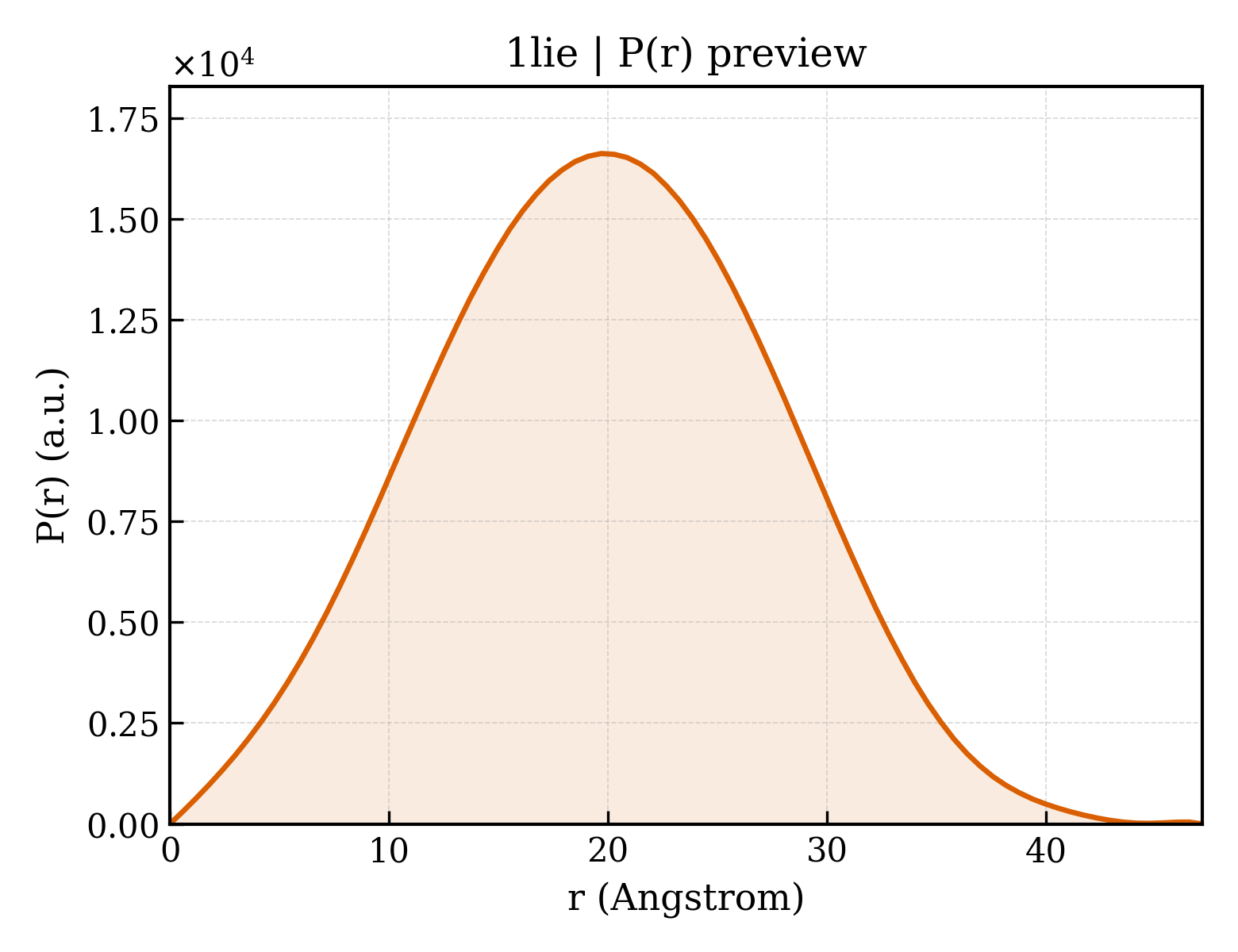

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	47.1 Å
Rg (real space) rg_real	15.06 Å
Rg uncertainty (real space) rg_real_error	0.19 Å
I(0) (real space) i0_real	4.2820e+06
I(0) uncertainty (real space) i0_real_error	4.3750e+04
Rg (reciprocal space) rg_reciprocal	15.07 Å
I(0) (reciprocal space) i0_reciprocal	4282000.0000
Solution quality estimate total_estimate	0.7482
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	19.7 Å
Skewness Skewness skewness	0.057
Kurtosis Kurtosis kurtosis	-0.415
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	934000.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.881; Stabil: 1.000; Sysdev: 0.368; Positv: 1.000; Valcen: 0.984; Smooth: 0.992

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	ADIPOCYTE LIPID-BINDING PROTEIN
Molecular weight formula_weight	14587.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1128

CDAFVGTWKLVSSENFDDYMKEVGVGFATRKVAGMAKPNMIISVNGDLVTIRSESTFKNTEISFKLGVEFDEITADDRKVKSIITLDGGALVQVQKWDGKSTTIKRKRDGDKLVVECVMKGVTSTRVYERA

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090

Entity 2 Entity 2 non-polymer

Description description	PALMITIC ACID
Molecular weight formula_weight	256.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	PROPANOIC ACID
Molecular weight formula_weight	74.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	82

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1liea_
Class class	b — All beta proteins
Fold Fold fold	b.60 — Lipocalins
Superfamily Superfamily superfamily	b.60.1 — Lipocalins
Family Family family	b.60.1.2 — Fatty acid binding protein-like

CATH v4.4 (1 domains)

Domain ID domain_id	1lieA00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	128 — Lipocalin
Homologous superfamily homologous superfamily	20 — Calycin beta-barrel core domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	119.540 Å
Unit-cell length b length_b	37.860 Å
Unit-cell length c length_c	28.570 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	92.66 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1980
R_work r_work	0.1980
R_free r_free	0.2390

fit	/app/data/saxs_computation/li/1lie/1lie.fit
pddf	/app/data/pr_computation/li/1lie/1lie.pr.out
profile	/app/data/saxs_computation/li/1lie/1lie.dat

X-RAY CRYSTALLOGRAPHIC STRUCTURES OF ADIPOCYTE LIPID BINDING PROTEIN COMPLEXED WITH PALMITATE AND HEXADECANESULFONIC ACID. PROPERTIES OF CAVITY BINDING SITES
