1aci
L11 RIBOSOMAL PROTEIN RNA BINDING DOMAIN, NMR, 20 STRUCTURES

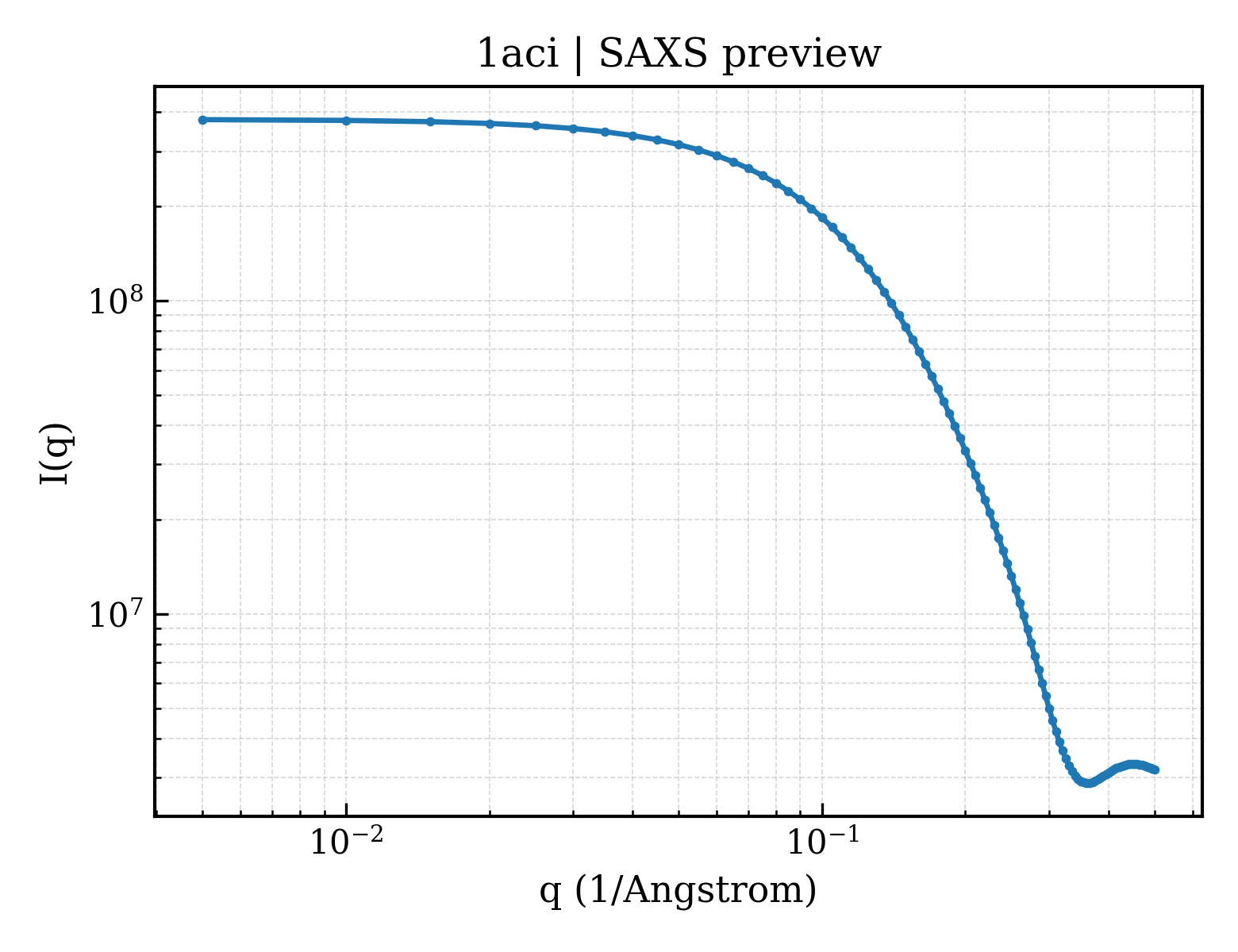

SAXS Profile

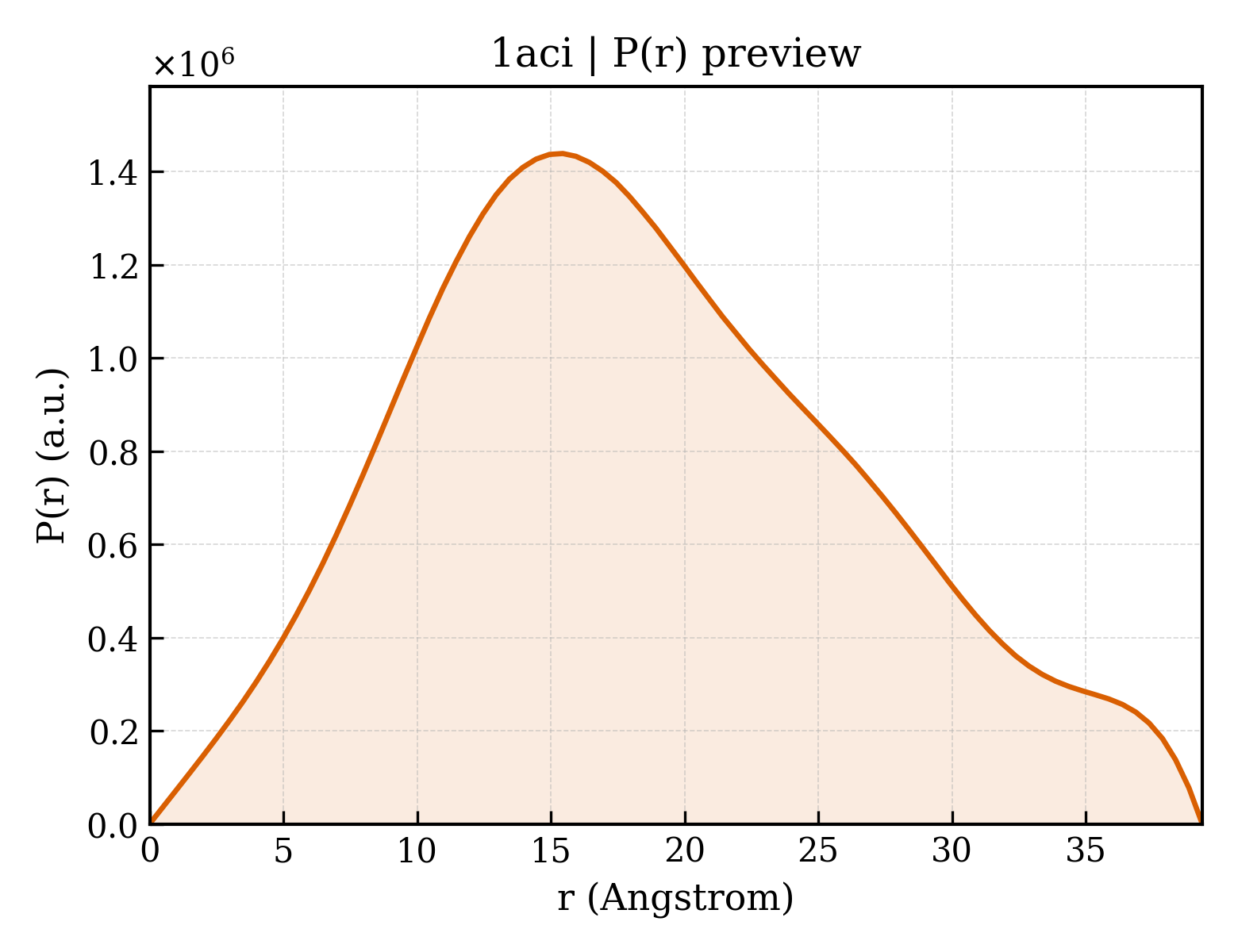

P(r) Distribution
1. Structure Basics
| entry_id | 1aci |
| deposition_date | 1997-02-07 |
| title | L11 RIBOSOMAL PROTEIN RNA BINDING DOMAIN, NMR, 20 STRUCTURES |
| keywords | L11-C76, RIBOSOMAL PROTEIN; RIBOSOMAL PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.86 Å |
| rg_electron | 14.53 Å |
| i0 | 379418000.00 |
| molecular_weight | 162850.0 kDa |
| excluded_volume | 204500 ų |
| envelope_volume | 35971 ų |
| shell_volume | 16986 ų |
| envelope_diameter | 63.7 Å |
| shell_rg | 24.20 Å |
| envelope_rg | 18.70 Å |
| shape_rg | 14.52 Å |
| total_rg | 14.86 Å |
| total_atoms | 23380 |
| n_residues | 1520 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 39.4 Å |
| rg_real | 14.15 Å |
| rg_real_error | 0.05 Å |
| i0_real | 3.6300e+08 |
| i0_real_error | 2.6060e+06 |
| rg_reciprocal | 14.94 Å |
| i0_reciprocal | 379400000.0000 |
| total_estimate | 0.6845 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 15.4 Å |
| skewness | 0.322 |
| kurtosis | -0.469 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 3.6340 |
| highest_alpha | 392600.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.001; Oscil: 0.984; Stabil: 0.983; Sysdev: 0.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.000 |
