SAXSdb — 1adq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

IGG4 REA FC

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 118–323	Fragment：FC	IGM-LAMBDA RF-AN FAB (LIGHT CHAIN) × 1 IGM-LAMBDA RF-AN FAB (HEAVY CHAIN) × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；CRYSTALS WERE GROWN BY HANGING DROP VAPOR DIFFUSION. THE HANGING DROPS CONSISTED OF 2UL OF PROTEIN SOLUTION CONTAINING EACH PROTEIN AT 1MG/ML IN 0.1 % SODIUM AZIDE, 20MM TRIS-HCL AT PH 7.0, MIXED WITH AN EQUAL VOLUME OF THE RESERVOIR SOLUTION TO BE SCREENED. CRYSTALS WERE OBTAINED WITH RESERVOIR SOLUTIONS CONTAINING 17.5 - 22.5 % (W/V) POLYETHYLENE GLYCOL (MEAN MW 8000) IN 0.1 % SODIUM AZIDE, 100MM TRIS-HCL, PH 7.0, AT TEMPERATURES BETWEEN 17.5 AND 21.5 (CELSIUS)., vapor diffusion - hanging drop	Resolution 3.15 Å R-free 0.289

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1ADQ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BBJ CRYSTAL STRUCTURE OF A CHIMERIC FAB' FRAGMENT OF AN ANTIBODY BINDING TUMOUR CELLS Deposited 1992-04-30	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–98（98 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.10 Å
1BBJ CRYSTAL STRUCTURE OF A CHIMERIC FAB' FRAGMENT OF AN ANTIBODY BINDING TUMOUR CELLS Deposited 1992-04-30	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–98（98 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.10 Å
4B53 Crystal structure of the isolated IgG4 CH3 domain Deposited 2012-08-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 222–327（106 aa） Fragment：CH3 DOMAIN, RESIDUES 222-327 Chain B 222–327（106 aa） Fragment：CH3 DOMAIN, RESIDUES 222-327	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 5 PEG DI(HYDROXYETHYL)ETHER × 4 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；SITTING DROP AT 291K. RESERVOIR OF 100 MICROLITRE 22% PEG 3350 AND 150MM CALCIUM ACETATE. DROP SIZE 100 NANOLITRE PROTEIN AND 100 NANOLITRE RESERVOIR. PROTEIN CONCENTRATION OF 1.5MG/ML	Resolution 1.80 Å R-free 0.237
4C54 Crystal structure of recombinant human IgG4 Fc Deposited 2013-09-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 114–327（214 aa） Fragment：FC FRAGMENT, RESIDUES 114-327 Chain B 114–327（214 aa） Fragment：FC FRAGMENT, RESIDUES 114-327	Not recorded	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 EDO 1,2-ETHANEDIOL × 9	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；MES PH6.5. 18-20% PEG 20 000	Resolution 1.90 Å R-free 0.209
4C55 Crystal structure of serum-derived human IgG4 Fc Deposited 2013-09-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 110–327（218 aa） Fragment：FC FRAGMENT, RESIDUES 110-327	Not recorded	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；MES PH6.5. 18-20% PEG 20 000	Resolution 2.35 Å R-free 0.238
4C55 Crystal structure of serum-derived human IgG4 Fc Deposited 2013-09-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain B 110–327（218 aa） Fragment：FC FRAGMENT, RESIDUES 110-327	Not recorded	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；MES PH6.5. 18-20% PEG 20 000	Resolution 2.35 Å R-free 0.238
4D2N Crystal structure of deglycosylated serum-derived human IgG4 Fc Deposited 2014-05-12	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 102–327（226 aa） Fragment：FC FRAGMENT, RESIDUES 102-327 Chain D 102–327（226 aa） Fragment：FC FRAGMENT, RESIDUES 102-327	Mutation：YES Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；291 K；CRYSTALS WERE GROWN AT 291K USING A RESERVOIR OF 100MM BIS-TRIS PROPANE PH7.5, 20% PEG 3350 AND 200MM SODIUM CITRATE, AND A PROTEIN CONCENTRATION OF 6MG/ML.	Resolution 2.70 Å R-free 0.254
4D2N Crystal structure of deglycosylated serum-derived human IgG4 Fc Deposited 2014-05-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 102–327（226 aa） Fragment：FC FRAGMENT, RESIDUES 102-327 Chain B 102–327（226 aa） Fragment：FC FRAGMENT, RESIDUES 102-327	Mutation：YES Mutation：YES	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；291 K；CRYSTALS WERE GROWN AT 291K USING A RESERVOIR OF 100MM BIS-TRIS PROPANE PH7.5, 20% PEG 3350 AND 200MM SODIUM CITRATE, AND A PROTEIN CONCENTRATION OF 6MG/ML.	Resolution 2.70 Å R-free 0.254
5HVW Monomeric IgG4 Fc Deposited 2016-01-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 115–324（210 aa）	Mutation：L351F, T366R, P395K, F405R, Y407E	ZN ZINC ION × 12 GOL GLYCEROL × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；9 mM ZnCl2, 90 mM Hepes, pH 7.0, 18% PEG 6000 (w/v)	Resolution 1.95 Å R-free 0.258
5HVW Monomeric IgG4 Fc Deposited 2016-01-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 115–324（210 aa）	Mutation：L351F, T366R, P395K, F405R, Y407E	ZN ZINC ION × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；9 mM ZnCl2, 90 mM Hepes, pH 7.0, 18% PEG 6000 (w/v)	Resolution 1.95 Å R-free 0.258
5LG1 Room temperature structure of human IgG4-Fc from crystals analysed in situ Deposited 2016-07-05	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 114–327（214 aa） Chain B 114–327（214 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；0.1M MES, 18-20% PEG 20 000	Resolution 2.70 Å R-free 0.231
5W5M Crystal structure of human IgG4-Sigma1 Fc fragment Deposited 2017-06-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 106–327（222 aa） Fragment：Sigma1 Fc fragment, UNP residues 106-327 Chain B 106–327（222 aa） Fragment：Sigma1 Fc fragment, UNP residues 106-327	Not recorded	GOL GLYCEROL × 2 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；9% (w/v) PEG 20K, 0.1 M sodium acetate, pH 5.5	Resolution 1.90 Å R-free 0.225
5W5N Crystal structure of human IgG4-Sigma2 Fc fragment Deposited 2017-06-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 106–327（222 aa） Fragment：Sigma2 Fc fragment, UNP residues 106-327 Chain B 106–327（222 aa） Fragment：Sigma2 Fc fragment, UNP residues 106-327	Not recorded	GOL GLYCEROL × 2 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；10% (w/v) PEG 20K, 0.1 M sodium acetate, 5.5, 5% (v/v) MPD	Resolution 1.85 Å R-free 0.215
6WIB Next generation monomeric IgG4 Fc Deposited 2020-04-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 115–325（211 aa）	Mutation：L351F, T366R, P395K, F405R, Y407e, L432C, H433S, N434W, Y436L, T437C, Q438 deleted	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；298 K；0.01 M zinc sulfate heptahydrate; 0.1 M morpholineethanesulfonic acid (MES) monohydrate, pH 6.5, and 25% (w/v) PEG 550 MME at a protein concentration of 5.5 mg/mL	Resolution 2.55 Å R-free 0.266
6WMH Next generation monomeric IgG4 Fc Deposited 2020-04-21	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain H 118–324（207 aa） Fragment：domains Ch2 and Ch3	Mutation：M252Y, S254T, T256E, N297D, L351F, S354E, T366R, P395K, F405R, Y407E	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；295 K；DL-Glutamic acid monohydrate, DL-Alanine, Glycine, DL-Lysine monohydrochloride, DL-Serine, Sodium HEPES, MOPS (acid), Ethylene glycol, PEG 8000	Resolution 2.30 Å R-free 0.243
6WMH Next generation monomeric IgG4 Fc Deposited 2020-04-21	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 118–324（207 aa） Fragment：domains Ch2 and Ch3	Mutation：M252Y, S254T, T256E, N297D, L351F, S354E, T366R, P395K, F405R, Y407E	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；295 K；DL-Glutamic acid monohydrate, DL-Alanine, Glycine, DL-Lysine monohydrochloride, DL-Serine, Sodium HEPES, MOPS (acid), Ethylene glycol, PEG 8000	Resolution 2.30 Å R-free 0.243
6WNA Next generation monomeric IgG4 Fc Deposited 2020-04-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 118–324（207 aa） Fragment：domains Ch2 and Ch3	Mutation：M252Y, S254T, T256E, L351F, S354E, T366R, P395K, F405R, Y407E,	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；295 K；0.2 M magnesium chloride hexahydrate, 30% 1,5-diaminopentane dihydrochloride, 0.1 M MES, pH 6 and 20% PEG 6000 at a protein concentration of 6 mg/mL	Resolution 2.40 Å R-free 0.263
6WOL Next generation monomeric IgG4 Fc bound to neonatal Fc receptor Deposited 2020-04-24	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 117–326（210 aa） Fragment：domains Ch3 and Ch4	Mutation：L351F, S354E, T366R, P395K, F405R, Y407E, L432C, H433S, N434Y, Y436L, T437C, Q438 deleted	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；295 K；0.2 M magnesium chloride hexahydrate, 1 M sodium iodide, 0.1 M MES, pH 6 and 20% PEG 6000 at a protein concentration of 6.35 mg/mL	Resolution 2.49 Å R-free 0.270

13 other PDB entries and 18 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IGHG4_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–206； UniProt 118–323

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1adq
Deposition date deposition_date	1997-02-18
Structure title title	CRYSTAL STRUCTURE OF A HUMAN IGM RHEUMATOID FACTOR FAB IN COMPLEX WITH ITS AUTOANTIGEN IGG FC
Keywords keywords	COMPLEX (IMMUNOGLOBULIN-AUTOANTIGEN), RHEUMATOID FACTOR AUTO-ANTIBODY COMPLEX, COMPLEX (IMMUNOGLOBULIN-AUTOANTIGEN) complex; COMPLEX (IMMUNOGLOBULIN/AUTOANTIGEN)
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	32.97 Å
Radius of gyration Rg (electron density) rg_electron	33.04 Å
Forward intensity I(0) i0	81323900.00
Molecular weight molecular_weight	70646.0 kDa
Excluded volume excluded_volume	88013 Å³
Envelope volume envelope_volume	118760 Å³
Hydration-shell volume shell_volume	32641 Å³
Envelope diameter envelope_diameter	126.9 Å
Shell Rg shell_rg	36.62 Å
Envelope Rg envelope_rg	33.58 Å
Shape Rg shape_rg	32.99 Å
Total Rg total_rg	33.50 Å
Total atoms total_atoms	4977
Residues n_residues	644
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

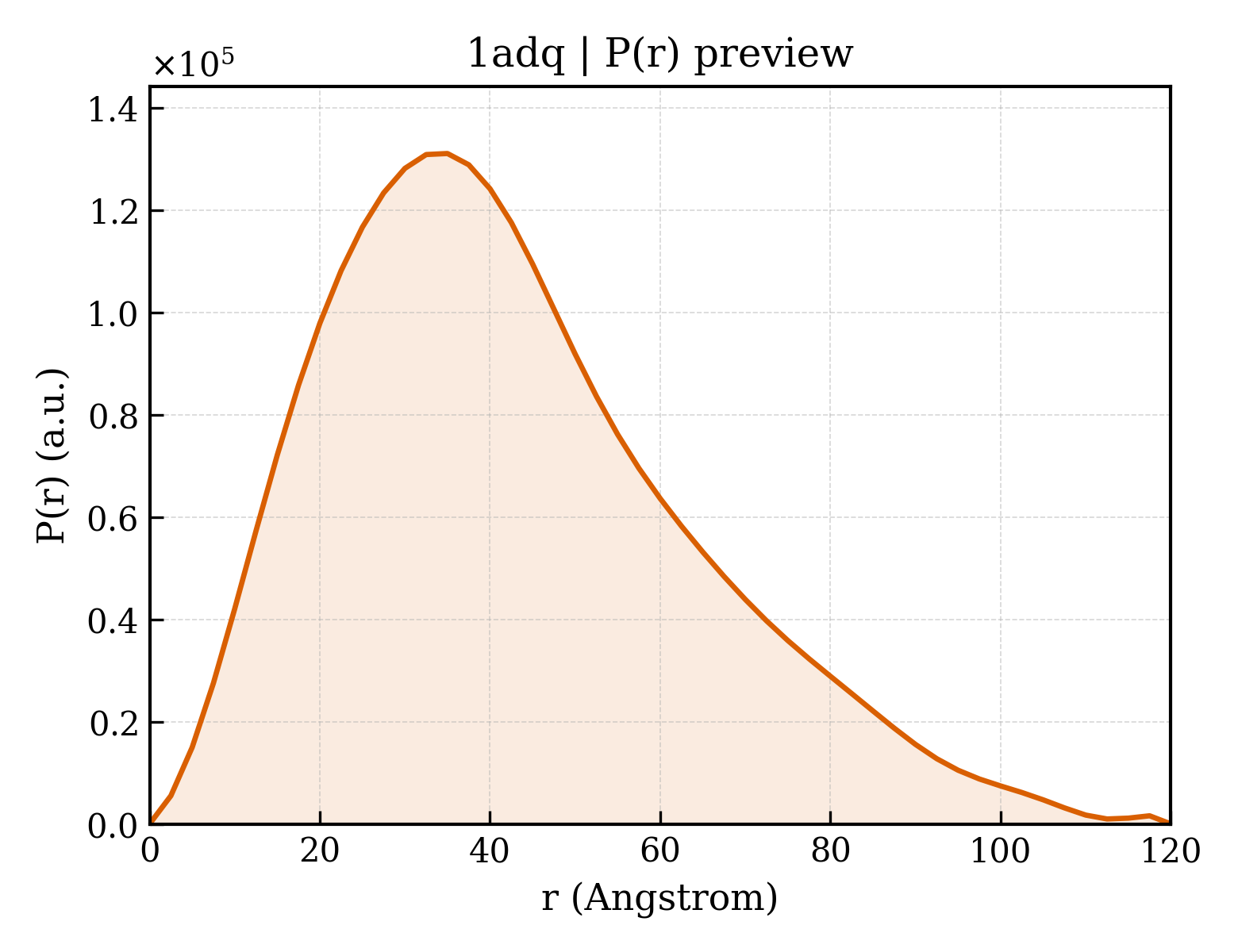

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	120.0 Å
Rg (real space) rg_real	33.43 Å
Rg uncertainty (real space) rg_real_error	1.32 Å
I(0) (real space) i0_real	8.1320e+07
I(0) uncertainty (real space) i0_real_error	1.4980e+06
Rg (reciprocal space) rg_reciprocal	33.24 Å
I(0) (reciprocal space) i0_reciprocal	81310000.0000
Solution quality estimate total_estimate	0.8127
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	35.0 Å
Skewness Skewness skewness	0.652
Kurtosis Kurtosis kurtosis	0.047
Angular range angular_range	— – 0.2400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	7775000.0000
Real-space data points n_real_points	49
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.649; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.691; Smooth: 0.924

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	IGG4 REA FC
Molecular weight formula_weight	23484.5 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4977

PSVFLFPPKPKDTLMISRTPEVTCVVVDVSQEDPQVQFNWYVDGVQVHNAKTKPREQQFNSTYRVVSVLTVLHQNWLDGKEYKCKVSNKGLPSSIEKTISKAKGQPREPQVYTLPPSQEEMTKNQVSLTCLVKGFYPSDIAVEWESNGQPENNYKTTPPVLDSDGSFFLYSRLTVDKSRWQEGNVFSCSVMHEALHNHYTQKSLSL

Entity 2 Entity 2 polymer

Description description	IGM-LAMBDA RF-AN FAB (LIGHT CHAIN)
Molecular weight formula_weight	22567.9 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

YVLTQPPSVSVAPGQTARITCGGNNIGSKSVHWYQQKPGQAPVLVVYDDSDRPPGIPERFSGSNSGNTATLTISRVEAGDEADYYCQVWDSSSDHAVFGGGTKLTVLGQPKAAPSVTLFPPSSEELQANKATLVCLISDFYPGAVTVAWKADGSPVKAGVETTTPSKQSNNKYAASSYLSLTPEQWKSHKSYSCQVTHEGSTVEKTVAPTECS

Entity 3 Entity 3 polymer

Description description	IGM-LAMBDA RF-AN FAB (HEAVY CHAIN)
Molecular weight formula_weight	24665.7 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

EVQLVESGGGLVQPGRSLRLSCVTSGFTFDDYAMHWVRQSPGKGLEWVSGISWNTGTIIYADSVKGRFIISRDNAKNSLYLQMNSLRVEDTALYYCAKTRSYVVAAEYYFHYWGQGILVTVSSGSASAPTLFPLVSCENSNPSSTVAVGCLAQDFLPDSITFSWKYKNNSDISSTRGFPSVLRGGKYAATSQVLLPSKDVMQGTNEHVVCKVQHPNGNKEKDVPL

▼

7. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1adqa1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d1adqa2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d1adqh1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d1adqh2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d1adql1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d1adql2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (6 domains)

Domain ID domain_id	1adqA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1adqA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1adqH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1adqH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1adqL01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1adqL02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (2)

▶

Unit-cell length a length_a	160.350 Å
Unit-cell length b length_b	81.950 Å
Unit-cell length c length_c	64.240 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	98.27 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	3.150 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.2250
R_work r_work	0.2250
R_free r_free	0.2890

fit	/app/data/saxs_computation/ad/1adq/1adq.fit
pddf	/app/data/pr_computation/ad/1adq/1adq.pr.out
profile	/app/data/saxs_computation/ad/1adq/1adq.dat
