1aho
THE AB INITIO STRUCTURE DETERMINATION AND REFINEMENT OF A SCORPION PROTEIN TOXIN

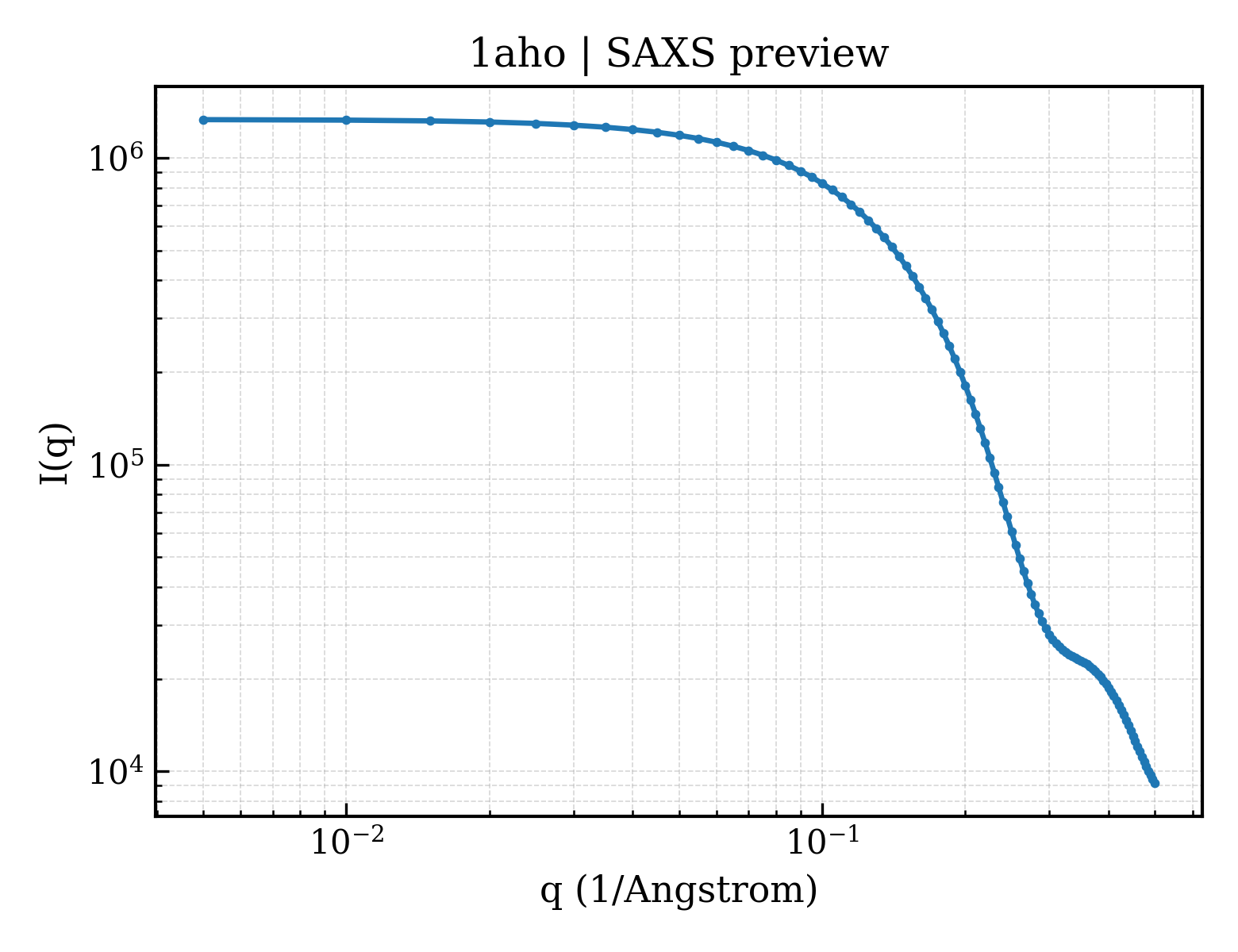

SAXS Profile

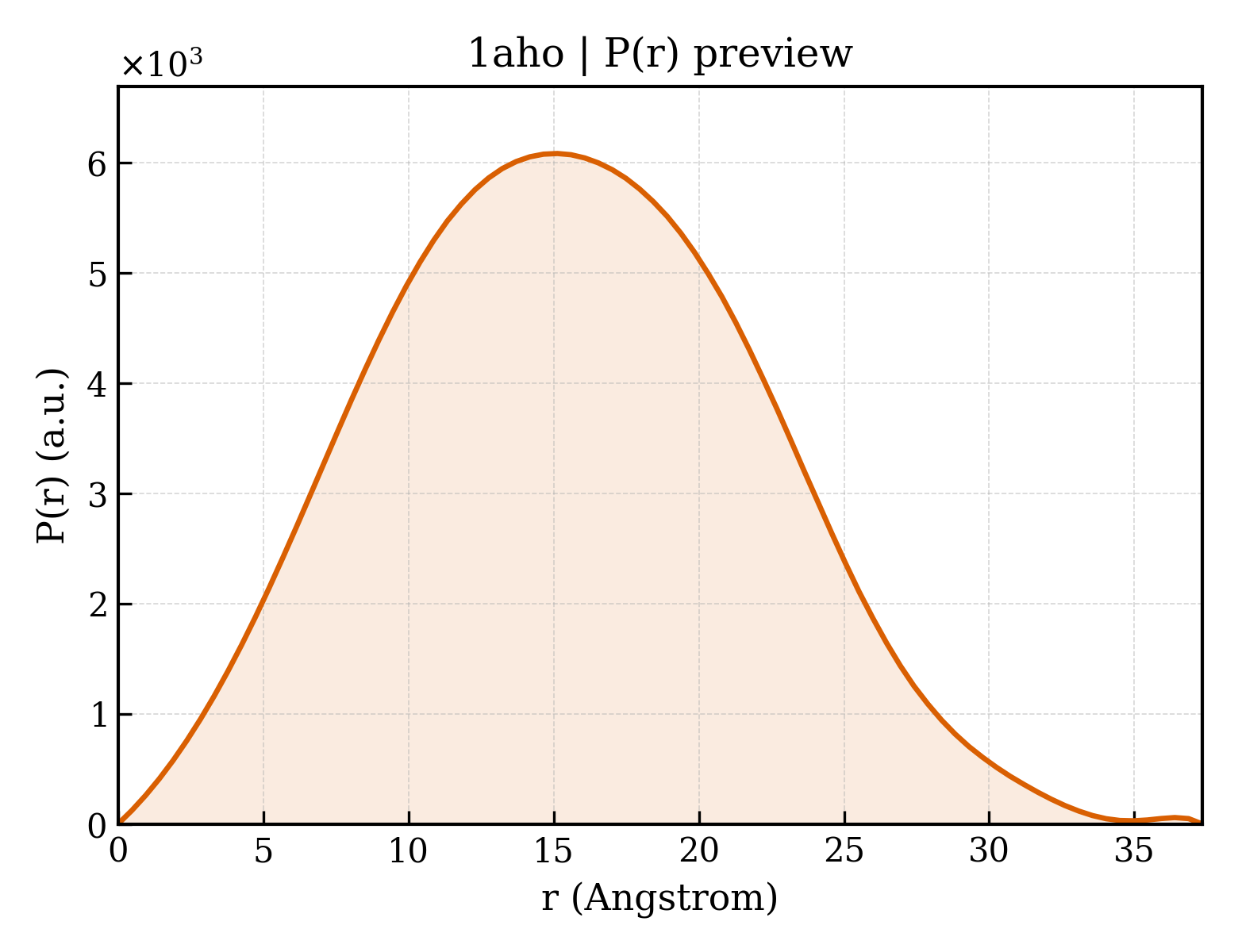

P(r) Distribution
1. Structure Basics
| entry_id | 1aho |
| deposition_date | 1997-04-08 |
| title | THE AB INITIO STRUCTURE DETERMINATION AND REFINEMENT OF A SCORPION PROTEIN TOXIN |
| keywords | TOXIN II, SCORPION, AB INITIO PHASING, NEUROTOXIN; NEUROTOXIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.95 Å |
| rg_electron | 10.81 Å |
| i0 | 1335250.00 |
| molecular_weight | 7175.0 kDa |
| excluded_volume | 8700 ų |
| envelope_volume | 9557 ų |
| shell_volume | 7804 ų |
| envelope_diameter | 34.5 Å |
| shell_rg | 16.04 Å |
| envelope_rg | 11.12 Å |
| shape_rg | 10.83 Å |
| total_rg | 12.10 Å |
| total_atoms | 907 |
| n_residues | 64 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 37.3 Å |
| rg_real | 11.89 Å |
| rg_real_error | 0.17 Å |
| i0_real | 1.3350e+06 |
| i0_real_error | 1.1720e+04 |
| rg_reciprocal | 11.89 Å |
| i0_reciprocal | 1335000.0000 |
| total_estimate | 0.9042 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 15.1 Å |
| skewness | 0.144 |
| kurtosis | -0.437 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 183900.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.931; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.958 |
