SAXSdb — 1seg

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

AAH2: LQH-ALPHA-IT (FACE) CHIMERIC TOXIN

Androctonus australis hector

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 20–83	Mutation：D8K, D9N, V10Y, G17F, R56P, T57I, K58R, G59V, R62K	SO4 SULFATE ION × 1 NO3 NITRATE ION × 2 PPI PROPANOIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.6；296 K；100mM trisodium citrate dihydrate, 1M mono-ammonium dihydrogen phosphate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 1.30 Å R-free 0.178

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1SEG	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AHO THE AB INITIO STRUCTURE DETERMINATION AND REFINEMENT OF A SCORPION PROTEIN TOXIN Deposited 1997-04-08	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 20–83（64 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.8；pH 6.8	Resolution 0.96 Å
1PTX CRYSTAL STRUCTURE OF TOXIN II FROM THE SCORPION ANDROCTONUS AUSTRALIS HECTOR REFINED AT 1.3 ANGSTROMS RESOLUTION Deposited 1994-09-02	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 20–83（64 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.30 Å
4AEI Crystal structure of the AaHII-Fab4C1 complex Deposited 2012-01-10	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 20–83（64 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CL CHLORIDE ION × 2 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；15% PEG 2000 MME, 0.1 M HEPES PH 8.0, 0.1 M NACL	Resolution 2.30 Å R-free 0.254
4AEI Crystal structure of the AaHII-Fab4C1 complex Deposited 2012-01-10	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 20–83（64 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CL CHLORIDE ION × 2 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；15% PEG 2000 MME, 0.1 M HEPES PH 8.0, 0.1 M NACL	Resolution 2.30 Å R-free 0.254
4AEI Crystal structure of the AaHII-Fab4C1 complex Deposited 2012-01-10	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 20–83（64 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CL CHLORIDE ION × 2 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；15% PEG 2000 MME, 0.1 M HEPES PH 8.0, 0.1 M NACL	Resolution 2.30 Å R-free 0.254
6NT4 Cryo-EM structure of a human-cockroach hybrid Nav channel bound to alpha-scorpion toxin AaH2. Deposited 2019-01-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 20–83（64 aa） Chain C 20–83（64 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 76F (7E,21R,24S)-27-amino-24-hydroxy-18,24-dioxo-19,23,25-trioxa-24lambda~5~-phosphaheptacos-7-en-21-yl (9Z,12E)-octadeca-9,12-dienoate × 5 AJP Digitonin × 1 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 1 Y01 CHOLESTEROL HEMISUCCINATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å

4 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SCX2_ANDAU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–64； UniProt 20–83

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1seg
Deposition date deposition_date	2004-02-17
Structure title title	Crystal structure of a toxin chimera between Lqh-alpha-IT from the scorpion Leiurus quinquestriatus hebraeus and AAH2 from Androctonus australis hector
Keywords keywords	TOXIN, CHIMERA, SCORPION; TOXIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	12.10 Å
Radius of gyration Rg (electron density) rg_electron	11.02 Å
Forward intensity I(0) i0	1491760.00
Molecular weight molecular_weight	7711.0 kDa
Excluded volume excluded_volume	9371 Å³
Envelope volume envelope_volume	9922 Å³
Hydration-shell volume shell_volume	7955 Å³
Envelope diameter envelope_diameter	38.9 Å
Shell Rg shell_rg	16.35 Å
Envelope Rg envelope_rg	11.47 Å
Shape Rg shape_rg	11.04 Å
Total Rg total_rg	12.29 Å
Total atoms total_atoms	536
Residues n_residues	64
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	40.0 Å
Rg (real space) rg_real	12.05 Å
Rg uncertainty (real space) rg_real_error	0.24 Å
I(0) (real space) i0_real	1.4920e+06
I(0) uncertainty (real space) i0_real_error	1.6210e+04
Rg (reciprocal space) rg_reciprocal	12.05 Å
I(0) (reciprocal space) i0_reciprocal	1492000.0000
Solution quality estimate total_estimate	0.8907
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	15.2 Å
Skewness Skewness skewness	0.203
Kurtosis Kurtosis kurtosis	-0.368
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	193700.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.867; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.987

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	AAH2: LQH-ALPHA-IT (FACE) CHIMERIC TOXIN
Molecular weight formula_weight	7423.5 kDa
Mutation mutation	D8K, D9N, V10Y, G17F, R56P, T57I, K58R, G59V, R62K
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	655

VKDGYIVKNYNCTYFCFRNAYCNEECTKLKGESGYCQWASPYGNACYCYKLPDHVPIRVPGKCH

来源 Source

来源生物 organism	Androctonus australis hector
NCBI Class编号 ncbi_taxonomy_id	70175
宿主生物 host_organism	Escherichia coli BL21

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	NITRATE ION
Molecular weight formula_weight	62.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	PROPANOIC ACID
Molecular weight formula_weight	74.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	119

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1sega_
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.7 — Scorpion toxin-like
Family Family family	g.3.7.1 — Long-chain scorpion toxins

CATH v4.4 (1 domains)

Domain ID domain_id	1segA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	30 — Defensin A-like
Homologous superfamily homologous superfamily	10 — Knottin, scorpion toxin-like

▶

8. Citations (1)

▶

Unit-cell length a length_a	74.523 Å
Unit-cell length b length_b	74.523 Å
Unit-cell length c length_c	56.973 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	I 4 2 2
Space-group number int_tables_number	97
Crystal system crystal_system	—

Resolution resolution	1.300 Å
Low-resolution limit resolution_low	52.700 Å
R factor r_factor	0.1547
R_work r_work	0.1535
R_free r_free	0.1780

fit	/app/data/saxs_computation/se/1seg/1seg.fit
pddf	/app/data/pr_computation/se/1seg/1seg.pr.out
profile	/app/data/saxs_computation/se/1seg/1seg.dat

Crystal structure of a toxin chimera between Lqh-alpha-IT from the scorpion Leiurus quinquestriatus hebraeus and AAH2 from Androctonus australis hector

1. Protein Identity and Related Structures Protein Identity & Related Structures

AAH2: LQH-ALPHA-IT (FACE) CHIMERIC TOXIN

State in the Current Structure

Other States of the Same Protein in the Database

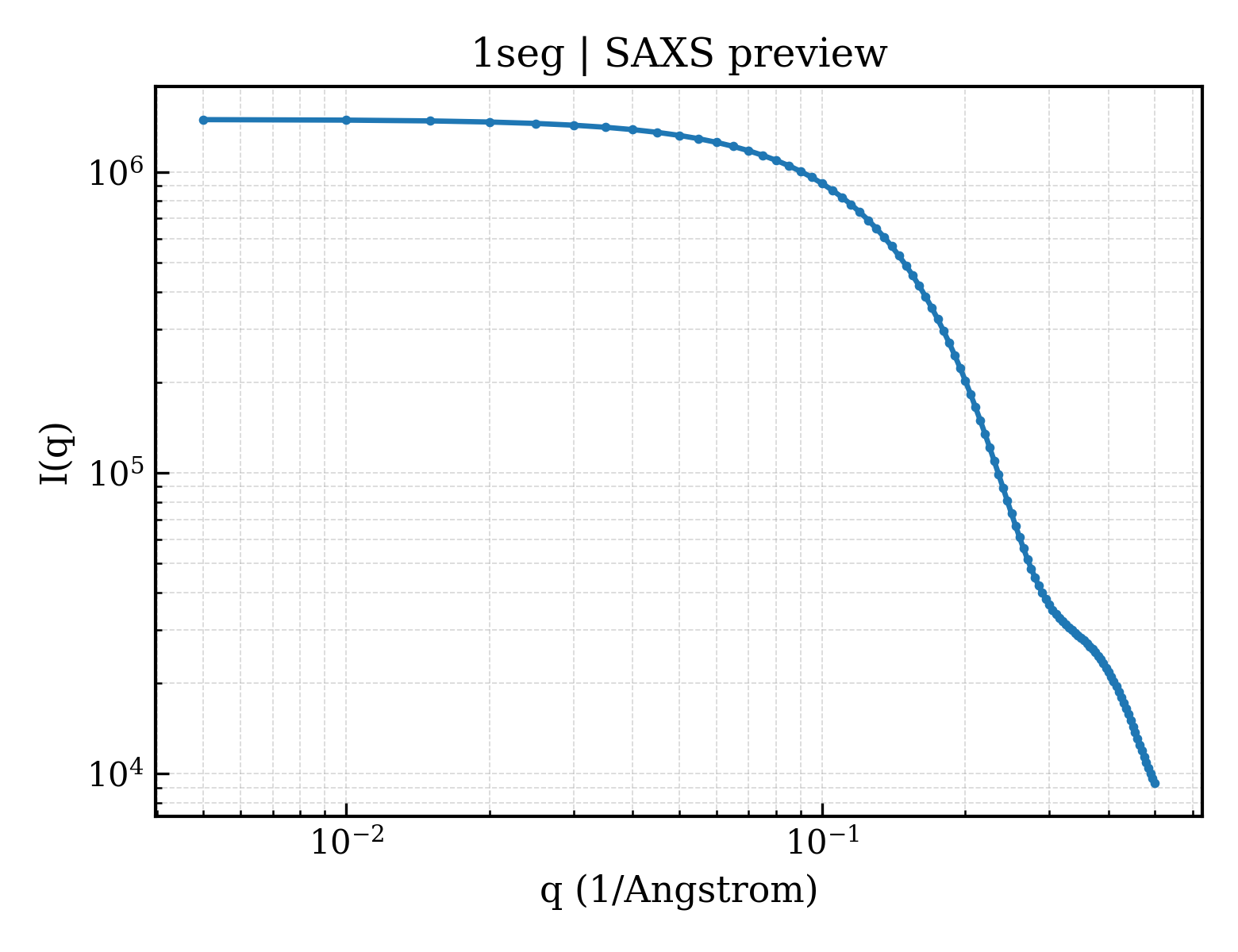

SAXS scattering curve SAXS Profile
