1akl
ALKALINE PROTEASE FROM PSEUDOMONAS AERUGINOSA IFO3080
SAXS Profile

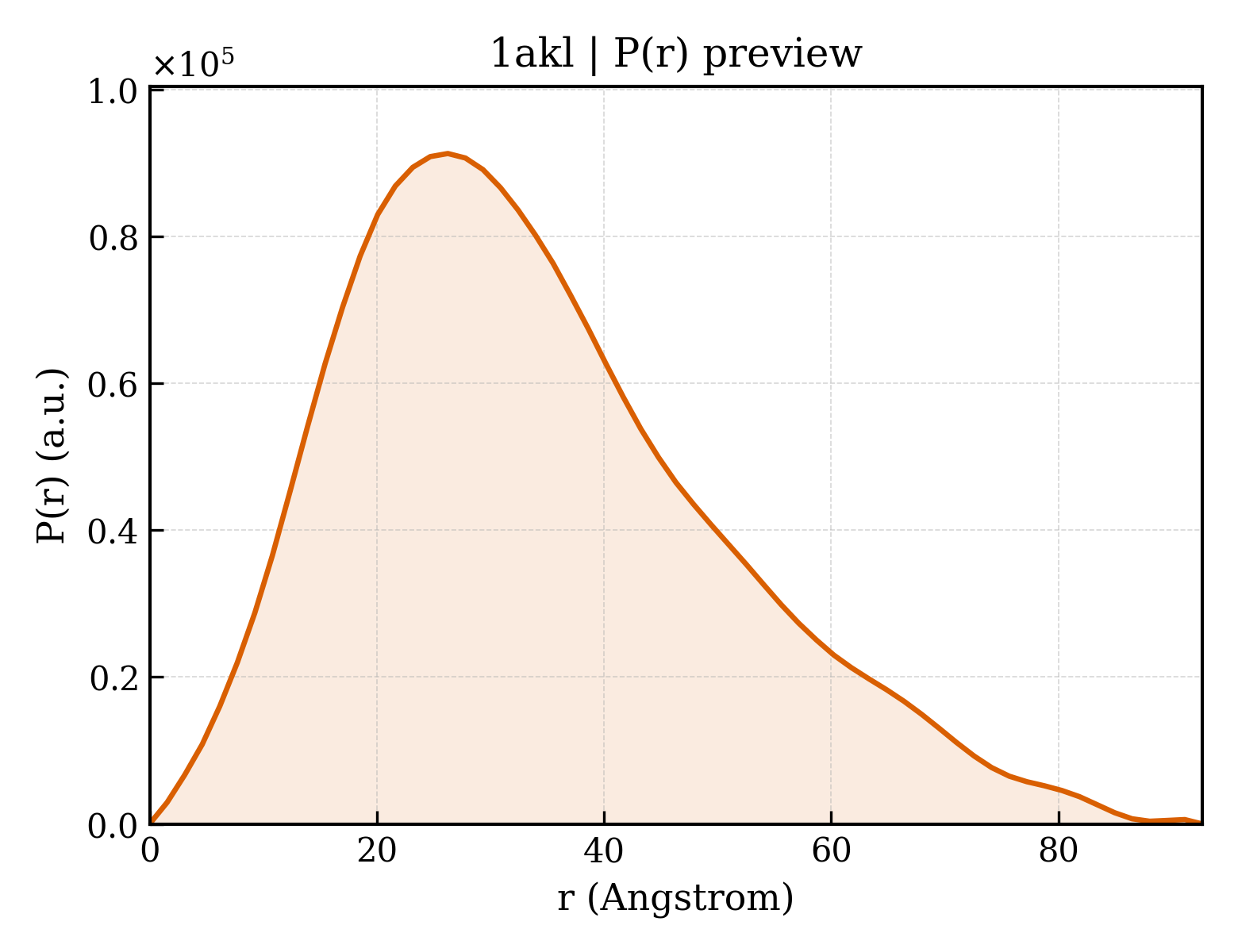

P(r) Distribution
1. Structure Basics
| entry_id | 1akl |
| deposition_date | 1995-09-16 |
| title | ALKALINE PROTEASE FROM PSEUDOMONAS AERUGINOSA IFO3080 |
| keywords | HYDROLASE (METALLOPROTEINASE); HYDROLASE (METALLOPROTEINASE) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 26.30 Å |
| rg_electron | 26.13 Å |
| i0 | 43696100.00 |
| molecular_weight | 49856.0 kDa |
| excluded_volume | 61526 ų |
| envelope_volume | 73403 ų |
| shell_volume | 25093 ų |
| envelope_diameter | 95.2 Å |
| shell_rg | 31.58 Å |
| envelope_rg | 26.57 Å |
| shape_rg | 26.14 Å |
| total_rg | 26.68 Å |
| total_atoms | 3514 |
| n_residues | 470 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 92.7 Å |
| rg_real | 26.55 Å |
| rg_real_error | 0.86 Å |
| i0_real | 4.3700e+07 |
| i0_real_error | 6.6920e+05 |
| rg_reciprocal | 26.47 Å |
| i0_reciprocal | 43690000.0000 |
| total_estimate | 0.8195 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 26.3 Å |
| skewness | 0.626 |
| kurtosis | -0.026 |
| angular_range | — – 0.3000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 9204000.0000 |
| n_real_points | 61 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.649; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.755; Smooth: 0.949 |
