SAXSdb — 1jiw

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ALKALINE METALLOPROTEINASE

Pseudomonas aeruginosa

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	PROTEINASE INHIBITOR × 1 （Q03026） ZINC ION × 1 CALCIUM ION × 8 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	APRA_PSEAE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain P； PDBConstruct 1–470； UniProt 10–479

PROTEINASE INHIBITOR

Pseudomonas aeruginosa

UniProt Q03026

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	ALKALINE METALLOPROTEINASE × 1 （Q03023） ZINC ION × 1 CALCIUM ION × 8 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	INH_PSEAE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain I； PDBConstruct 1–106； UniProt 27–132

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jiw
Deposition date deposition_date	2001-07-03
Structure title title	Crystal structure of the APR-APRin complex
Keywords keywords	Pseudomonas aeruginosa alkaline protease inhibitor, HYDROLASE-HYDROLASE INHIBITOR COMPLEX; HYDROLASE/HYDROLASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1jiw__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

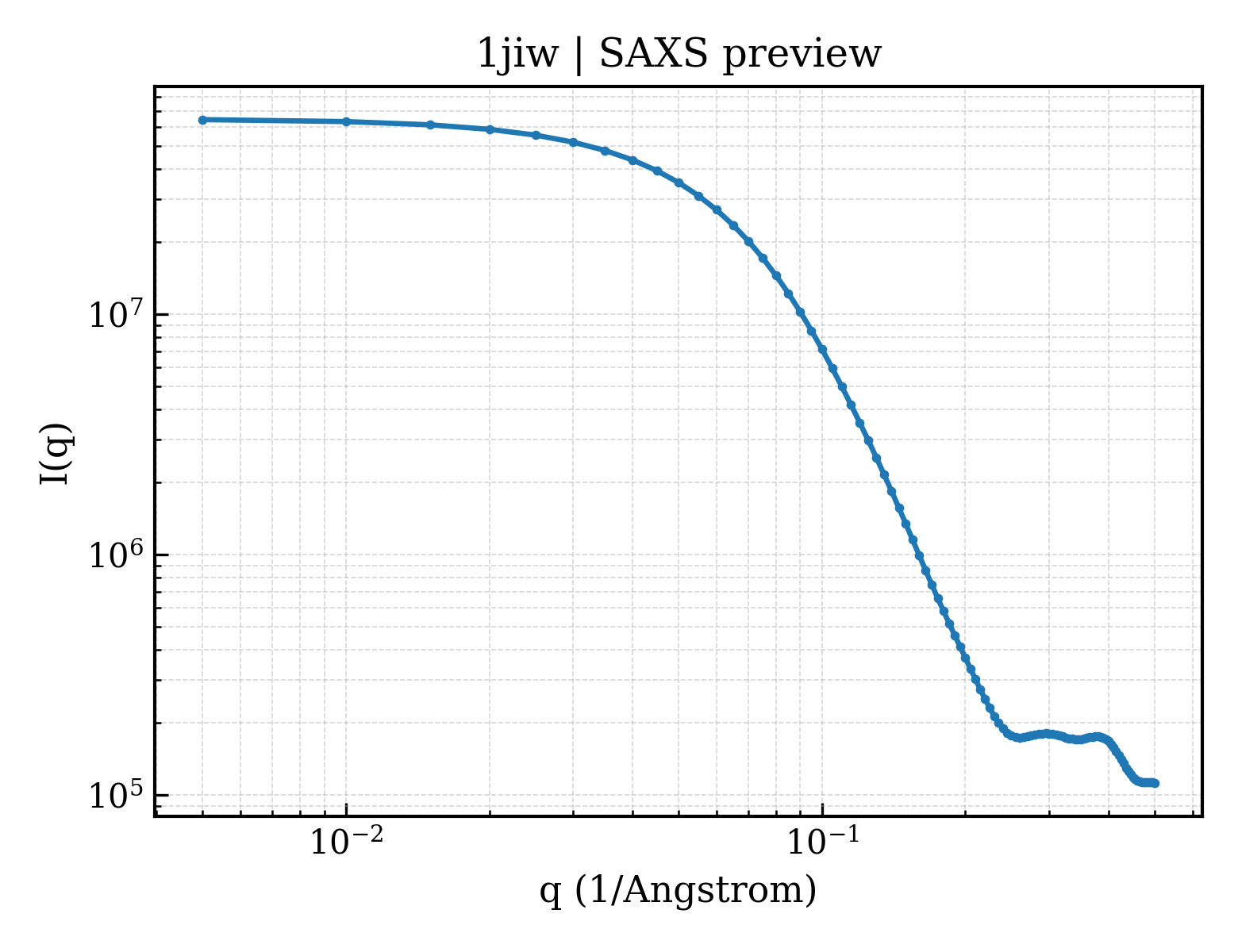

1jiw__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1jiw__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.16 Å
Rg (electron density)	26.69 Å
Total Rg	27.31 Å
Atom count	4306
Residues	575
Excluded volume	75485 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1jiw__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	ALKALINE METALLOPROTEINASE
Molecular weight formula_weight	49531.4 kDa
EC 编号 ec_number	3.4.24.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P
Atom count atom_count	4898

GRSDAYTQVDNFLHAYARGGDELVNGHPSYTVDQAAEQILREQASWQKAPGDSVLTLSYSFLTKPNDFFNTPWKYVSDIYSLGKFSAFSAQQQAQAKLSLQSWSDVTNIHFVDAGQGDQGDLTFGNFSSSVGGAAFAFLPDVPDALKGQSWYLINSSYSANVNPANGNYGRQTLTHEIGHTLGLSHPGDYNAGEGDPTYADATYAEDTRAYSVMSYWEEQNTGQDFKGAYSSAPLLDDIAAIQKLYGANLTTRTGDTVYGFNSNTERDFYSATSSSSKLVFSVWDAGGNDTLDFSGFSQNQKINLNEKALSDVGGLKGNVSIAAGVTVENAIGGSGSDLLIGNDVANVLKGGAGNDILYGGLGADQLWGGAGADTFVYGDIAESSAAAPDTLRDFVSGQDKIDLSGLDAFVNGGLVLQYVDAFAGKAGQAILSYDAASKAGSLAIDFSGDAHADFAINLIGQATQADIVV

Source Source

Source organism organism	Pseudomonas aeruginosa
NCBI taxonomy ID ncbi_taxonomy_id	287
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	PROTEINASE INHIBITOR
Molecular weight formula_weight	11396.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

SSLILLSASDLAGQWTLQQDEAPAICHLELRDSEVAEASGYDLGGDTACLTRWLPSEPRAWRPTPAGIALLERGGLTLMLLGRQGEGDYRVQKGDGGQLVLRRATP

Source Source

Source organism organism	Pseudomonas aeruginosa
NCBI taxonomy ID ncbi_taxonomy_id	287
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	592

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1jiwi_
Class class	b — All beta proteins
Fold Fold fold	b.61 — Streptavidin-like
Superfamily Superfamily superfamily	b.61.2 — beta-Barrel protease inhibitors
Family Family family	b.61.2.1 — Metalloprotease inhibitor

Domain ID domain_id	d1jiwp1
Class class	b — All beta proteins
Fold Fold fold	b.80 — Single-stranded right-handed beta-helix
Superfamily Superfamily superfamily	b.80.7 — beta-Roll
Family Family family	b.80.7.1 — Serralysin-like metalloprotease, C-terminal domain

Domain ID domain_id	d1jiwp2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.92 — Zincin-like
Superfamily Superfamily superfamily	d.92.1 — Metalloproteases ('zincins'), catalytic domain
Family Family family	d.92.1.6 — Serralysin-like metalloprotease, catalytic (N-terminal) domain

CATH v4.4 (3 domains)

Domain ID domain_id	1jiwI00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	128 — Lipocalin
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1jiwP01
Class class	2 — Mainly Beta
Architecture architecture	150 — 2 Solenoid
Topology topology	10 — Alkaline Protease, subunit P, domain 1
Homologous superfamily homologous superfamily	10 — Serralysin-like metalloprotease, C-terminal

Domain ID domain_id	1jiwP02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	390 — Collagenase (Catalytic Domain)
Homologous superfamily homologous superfamily	10 — Collagenase (Catalytic Domain)

▶

Unit-cell length a length_a	75.627 Å
Unit-cell length b length_b	118.432 Å
Unit-cell length c length_c	91.995 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	1.740 Å
Low-resolution limit resolution_low	14.930 Å
R factor r_factor	0.1850
R_work r_work	0.1840
R_free r_free	0.2040
