1akm
ORNITHINE TRANSCARBAMYLASE FROM ESCHERICHIA COLI
SAXS Profile

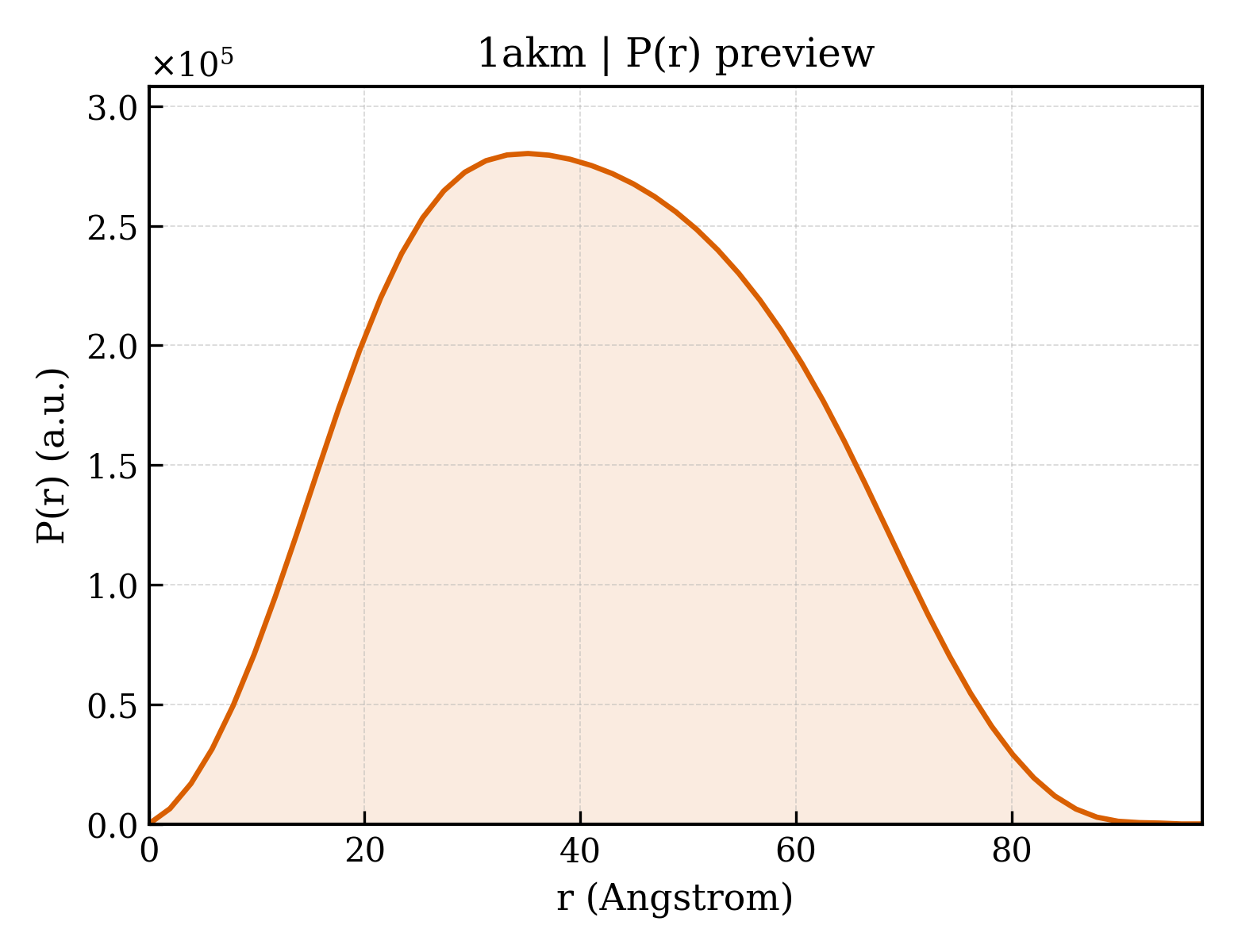

P(r) Distribution
1. Structure Basics
| entry_id | 1akm |
| deposition_date | 1997-05-23 |
| title | ORNITHINE TRANSCARBAMYLASE FROM ESCHERICHIA COLI |
| keywords | TRANSFERASE, ANABOLIC, UREA CYCLE, CARBAMYL PHOSPHATE; TRANSFERASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 31.80 Å |
| rg_electron | 30.95 Å |
| i0 | 178068000.00 |
| molecular_weight | 106510.0 kDa |
| excluded_volume | 133210 ų |
| envelope_volume | 156610 ų |
| shell_volume | 41878 ų |
| envelope_diameter | 95.7 Å |
| shell_rg | 38.33 Å |
| envelope_rg | 30.73 Å |
| shape_rg | 30.94 Å |
| total_rg | 31.57 Å |
| total_atoms | 7482 |
| n_residues | 966 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 97.7 Å |
| rg_real | 31.68 Å |
| rg_real_error | 0.75 Å |
| i0_real | 1.7810e+08 |
| i0_real_error | 2.9650e+06 |
| rg_reciprocal | 31.74 Å |
| i0_reciprocal | 178100000.0000 |
| total_estimate | 0.9121 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 1 |
| r_peak_primary | 35.2 Å |
| skewness | 0.147 |
| kurtosis | -0.709 |
| angular_range | — – 0.2500 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 67470000.0000 |
| n_real_points | 51 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.963; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.964 |
