1duv

CRYSTAL STRUCTURE OF E. COLI ORNITHINE TRANSCARBAMOYLASE COMPLEXED WITH NDELTA-L-ORNITHINE-DIAMINOPHOSPHINYL-N-SULPHONIC ACID (PSORN)

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ORNITHINE TRANSCARBAMOYLASE

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	NDELTA-(N'-SULPHODIAMINOPHOSPHINYL)-L-ORNITHINE × 3 (4S)-2-METHYL-2,4-PENTANEDIOL × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	OTC1_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain G； PDBConstruct 1–333； UniProt 1–333 Author chain H； PDBConstruct 1–333； UniProt 1–333 Author chain I； PDBConstruct 1–333； UniProt 1–333

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1duv
Deposition date deposition_date	2000-01-18
Structure title title	CRYSTAL STRUCTURE OF E. COLI ORNITHINE TRANSCARBAMOYLASE COMPLEXED WITH NDELTA-L-ORNITHINE-DIAMINOPHOSPHINYL-N-SULPHONIC ACID (PSORN)
Keywords keywords	ENZYME-INHIBITOR COMPLEX, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1duv__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1duv__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

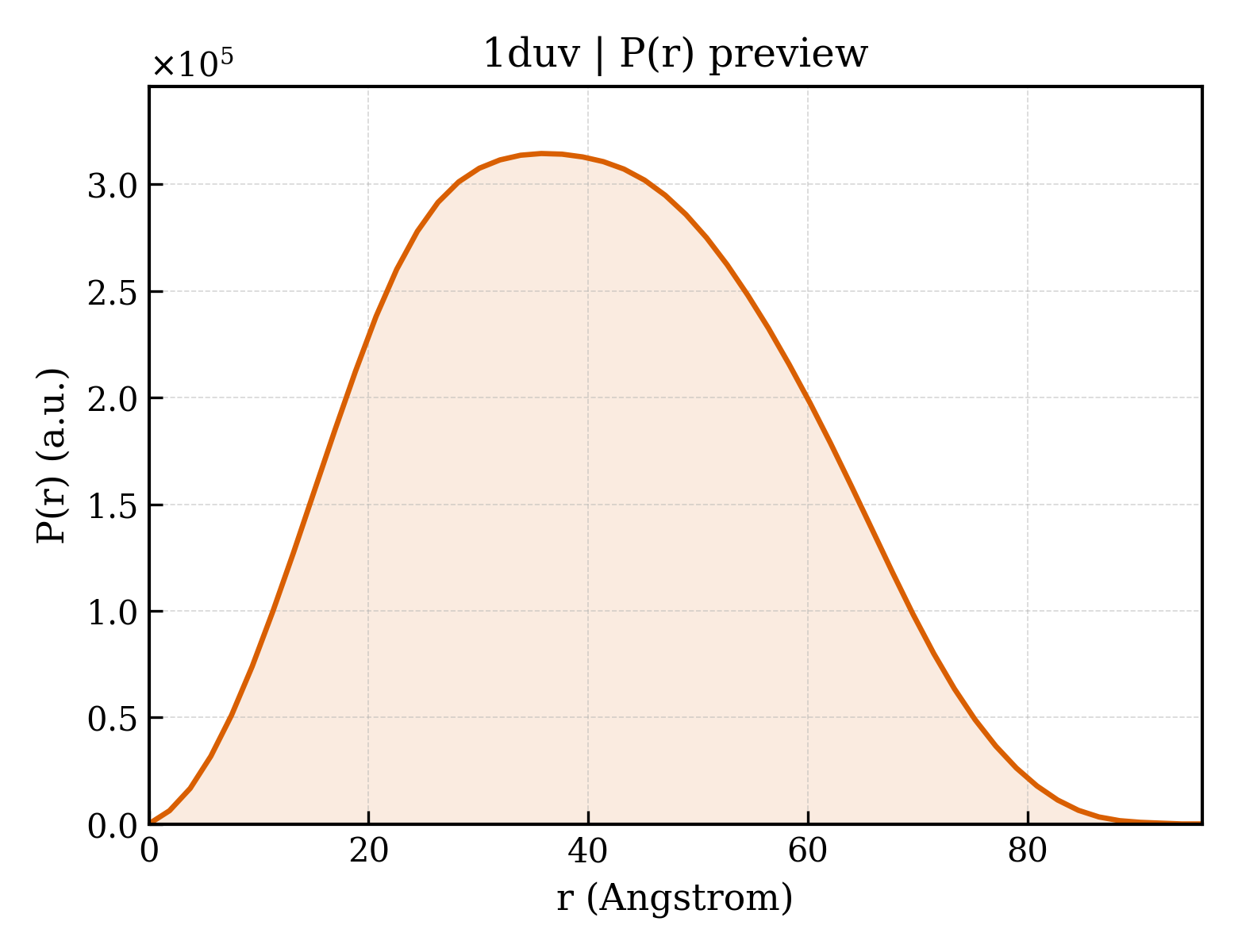

1duv__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.93 Å
Rg (electron density)	30.16 Å
Total Rg	30.76 Å
Atom count	7707
Residues	999
Excluded volume	136960 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1duv__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	ORNITHINE TRANSCARBAMOYLASE
Molecular weight formula_weight	36818.8 kDa
EC 编号 ec_number	2.1.3.3
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H,I
Atom count atom_count	8442

SGFYHKHFLKLLDFTPAELNSLLQLAAKLKADKKSGKEEAKLTGKNIALIFEKDSTRTRCSFEVAAYDQGARVTYLGPSGSQIGHKESIKDTARVLGRMYDGIQYRGYGQEIVETLAEYASVPVWNGLTNEFHPTQLLADLLTMQEHLPGKAFNEMTLVYAGDARNNMGNSMLEAAALTGLDLRLVAPQACWPEAALVTECRALAQQNGGNITLTEDVAKGVEGADFIYTDVWVSMGEAKEKWAERIALLREYQVNSKMMQLTGNPEVKFLHCLPAFHDDQTTLGKKMAEEFGLHGGMEVTDEVFESAASIVFDQAENRMHTIKAVMVATLSK

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	NDELTA-(N'-SULPHODIAMINOPHOSPHINYL)-L-ORNITHINE
Molecular weight formula_weight	290.2 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	(4S)-2-METHYL-2,4-PENTANEDIOL
Molecular weight formula_weight	118.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	735

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1duvg1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.78 — ATC-like
Superfamily Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
Family Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

Domain ID domain_id	d1duvg2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.78 — ATC-like
Superfamily Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
Family Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

Domain ID domain_id	d1duvh1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.78 — ATC-like
Superfamily Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
Family Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

Domain ID domain_id	d1duvh2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.78 — ATC-like
Superfamily Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
Family Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

Domain ID domain_id	d1duvi1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.78 — ATC-like
Superfamily Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
Family Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

Domain ID domain_id	d1duvi2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.78 — ATC-like
Superfamily Superfamily superfamily	c.78.1 — Aspartate/ornithine carbamoyltransferase
Family Family family	c.78.1.1 — Aspartate/ornithine carbamoyltransferase

CATH v4.4 (6 domains)

Domain ID domain_id	1duvG01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

Domain ID domain_id	1duvG02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

Domain ID domain_id	1duvH01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

Domain ID domain_id	1duvH02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

Domain ID domain_id	1duvI01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

Domain ID domain_id	1duvI02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1370 — Aspartate/ornithine carbamoyltransferase

▶

Unit-cell length a length_a	86.680 Å
Unit-cell length b length_b	134.230 Å
Unit-cell length c length_c	109.300 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	1.700 Å
Low-resolution limit resolution_low	40.000 Å
R factor r_factor	0.1940
R_work r_work	0.1920
R_free r_free	0.2210
