1akt

G61N OXIDIZED FLAVODOXIN MUTANT

Method: X-RAY DIFFRACTION Dmax: 48.2 Å Quality: GOOD

SAXS Profile

SAXS profile for 1akt

P(r) Distribution

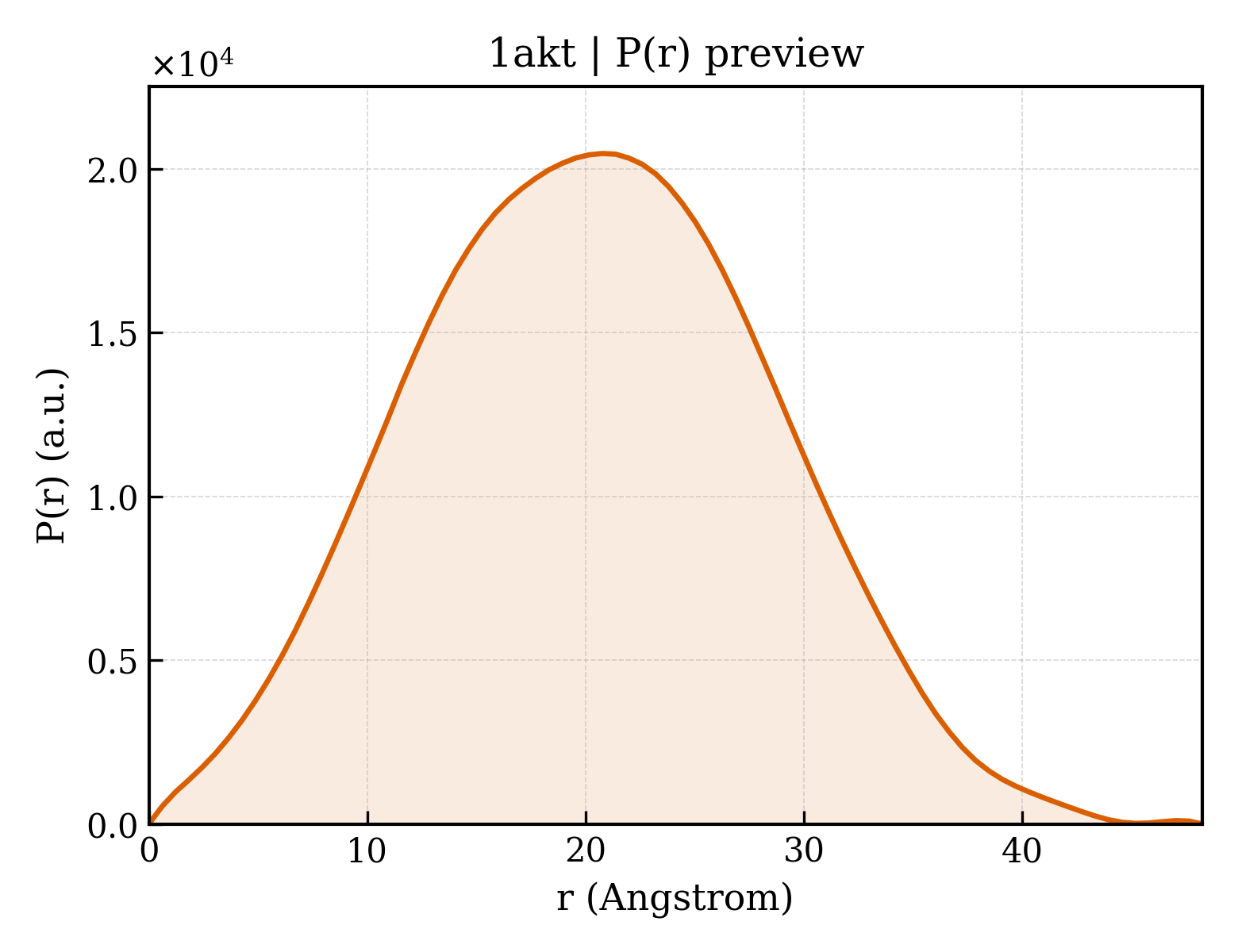

P(r) distribution for 1akt

1. Structure Basics

entry_id1akt
deposition_date1997-05-27
titleG61N OXIDIZED FLAVODOXIN MUTANT
keywordsELECTRON TRANSPORT, ELECTRON TRANSFER, FLAVOPROTEIN, FMN, FLAVODOXIN, MUTANT; ELECTRON TRANSPORT
methodX-RAY DIFFRACTION

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier15.56
rg_electron14.05
i05570100.00
molecular_weight16186.0 kDa
excluded_volume19828 ų
envelope_volume21858 ų
shell_volume13031 ų
envelope_diameter47.4
shell_rg20.11
envelope_rg14.37
shape_rg14.08
total_rg15.09
total_atoms1139
n_residues147
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax48.2
rg_real15.45
rg_real_error0.28
i0_real5.5700e+06
i0_real_error6.8050e+04
rg_reciprocal15.46
i0_reciprocal5570000.0000
total_estimate0.8966
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary20.8
skewness0.085
kurtosis-0.411
angular_range— – 0.5000 −1
current_alpha0.0000
highest_alpha924700.0000
n_real_points80
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.895; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.981

4. Crystallography & Experiment

5. Entities & Polymer Info (3)

6. Citations (6)

7. Files & Curves (10)
