1alj
ALKALINE PHOSPHATASE MUTANT (H412N)

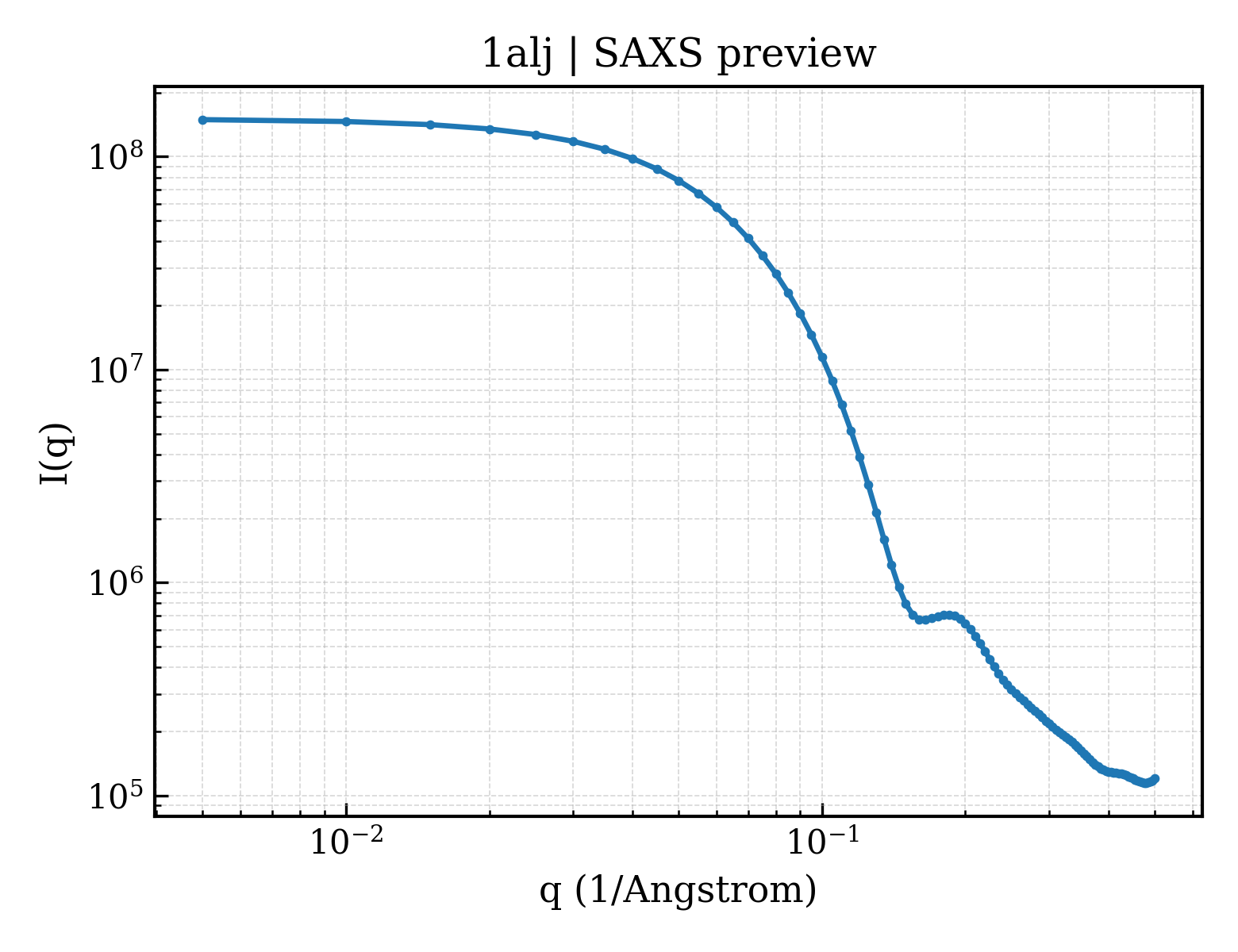

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1alj |
| deposition_date | 1995-06-02 |
| title | ALKALINE PHOSPHATASE MUTANT (H412N) |
| keywords | HYDROLASE (PHOSPHORIC MONOESTER), TRANSFERASE (PHOSPHO, ALCOHOL ACCEPTOR); HYDROLASE (PHOSPHORIC MONOESTER) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 28.33 Å |
| rg_electron | 27.78 Å |
| i0 | 150261000.00 |
| molecular_weight | 93736.0 kDa |
| excluded_volume | 115680 ų |
| envelope_volume | 131640 ų |
| shell_volume | 38968 ų |
| envelope_diameter | 106.3 Å |
| shell_rg | 35.77 Å |
| envelope_rg | 28.14 Å |
| shape_rg | 27.78 Å |
| total_rg | 28.41 Å |
| total_atoms | 6572 |
| n_residues | 892 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 100.0 Å |
| rg_real | 28.38 Å |
| rg_real_error | 0.95 Å |
| i0_real | 1.5030e+08 |
| i0_real_error | 2.4900e+06 |
| rg_reciprocal | 28.37 Å |
| i0_reciprocal | 150300000.0000 |
| total_estimate | 0.8419 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 33.9 Å |
| skewness | 0.511 |
| kurtosis | 0.083 |
| angular_range | — – 0.2800 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 37500000.0000 |
| n_real_points | 57 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.667; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.967; Smooth: 0.972 |
