1amx
COLLAGEN-BINDING DOMAIN FROM A STAPHYLOCOCCUS AUREUS ADHESIN
SAXS Profile

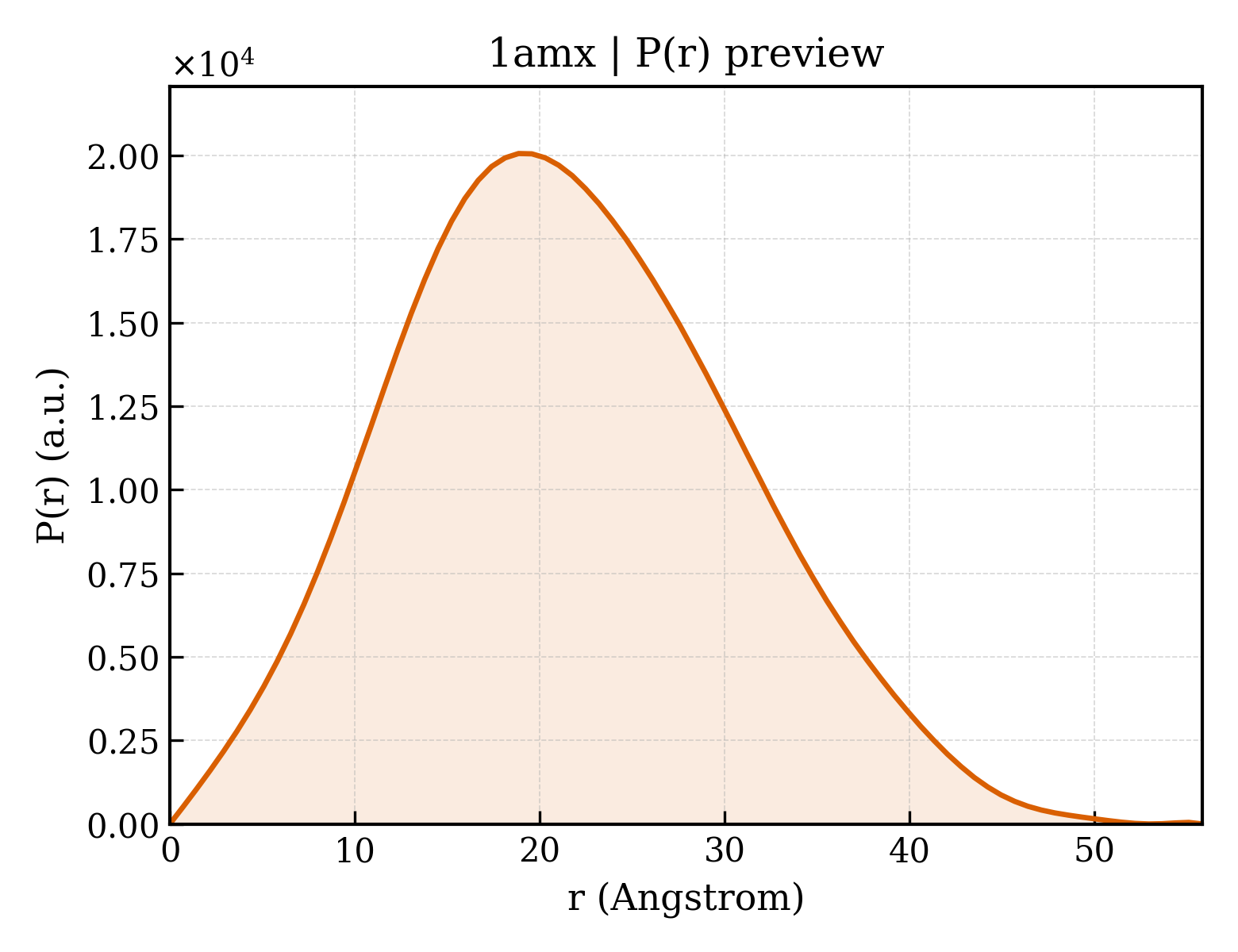

P(r) Distribution
1. Structure Basics
| entry_id | 1amx |
| deposition_date | 1997-06-19 |
| title | COLLAGEN-BINDING DOMAIN FROM A STAPHYLOCOCCUS AUREUS ADHESIN |
| keywords | BACTERIAL ADHESIN, MSCRAMM; BACTERIAL ADHESIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.59 Å |
| rg_electron | 15.40 Å |
| i0 | 5889770.00 |
| molecular_weight | 17073.0 kDa |
| excluded_volume | 21106 ų |
| envelope_volume | 23778 ų |
| shell_volume | 13314 ų |
| envelope_diameter | 55.5 Å |
| shell_rg | 21.02 Å |
| envelope_rg | 15.75 Å |
| shape_rg | 15.38 Å |
| total_rg | 16.49 Å |
| total_atoms | 1498 |
| n_residues | 150 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 55.8 Å |
| rg_real | 16.54 Å |
| rg_real_error | 0.29 Å |
| i0_real | 5.8900e+06 |
| i0_real_error | 6.9300e+04 |
| rg_reciprocal | 16.54 Å |
| i0_reciprocal | 5890000.0000 |
| total_estimate | 0.7568 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 18.9 Å |
| skewness | 0.260 |
| kurtosis | -0.334 |
| angular_range | — – 0.4800 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 934900.0000 |
| n_real_points | 78 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.813; Stabil: 1.000; Sysdev: 0.471; Positv: 1.000; Valcen: 0.998; Smooth: 0.984 |
