1d2p
CRYSTAL STRUCTURE OF TWO B REPEAT UNITS (B1B2) OF THE COLLAGEN BINDING PROTEIN (CNA) OF STAPHYLOCOCCUS AUREUS
SAXS Profile

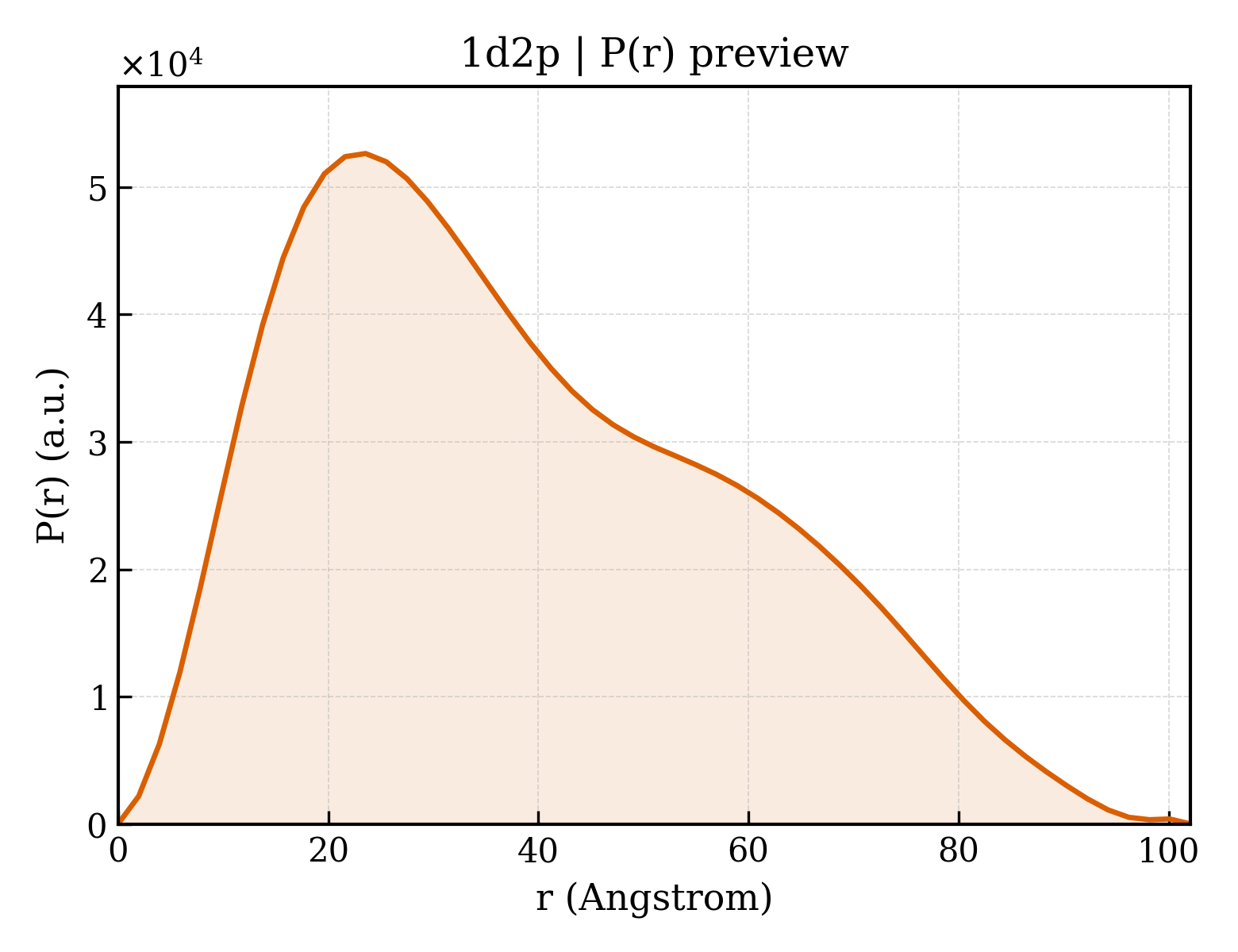

P(r) Distribution
1. Structure Basics
| entry_id | 1d2p |
| deposition_date | 1999-09-25 |
| title | CRYSTAL STRUCTURE OF TWO B REPEAT UNITS (B1B2) OF THE COLLAGEN BINDING PROTEIN (CNA) OF STAPHYLOCOCCUS AUREUS |
| keywords | COLLAGEN, IGG, IGSF, MSCRAMM, CNA, STAPHYLOCOCCUS AUREUS, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 30.47 Å |
| rg_electron | 30.47 Å |
| i0 | 31715600.00 |
| molecular_weight | 42341.0 kDa |
| excluded_volume | 52298 ų |
| envelope_volume | 69723 ų |
| shell_volume | 21022 ų |
| envelope_diameter | 107.0 Å |
| shell_rg | 34.08 Å |
| envelope_rg | 30.23 Å |
| shape_rg | 30.45 Å |
| total_rg | 30.89 Å |
| total_atoms | 2986 |
| n_residues | 373 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 102.1 Å |
| rg_real | 30.86 Å |
| rg_real_error | 1.00 Å |
| i0_real | 3.1720e+07 |
| i0_real_error | 5.3350e+05 |
| rg_reciprocal | 30.70 Å |
| i0_reciprocal | 31710000.0000 |
| total_estimate | 0.7721 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 23.6 Å |
| skewness | 0.495 |
| kurtosis | -0.616 |
| angular_range | — – 0.2600 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3874000.0000 |
| n_real_points | 53 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.658; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.398; Smooth: 0.660 |
