HUMAN ARGININOSUCCINATE LYASE

Method: X-RAY DIFFRACTION D_max: 108.3 Å Quality: EXCELLENT

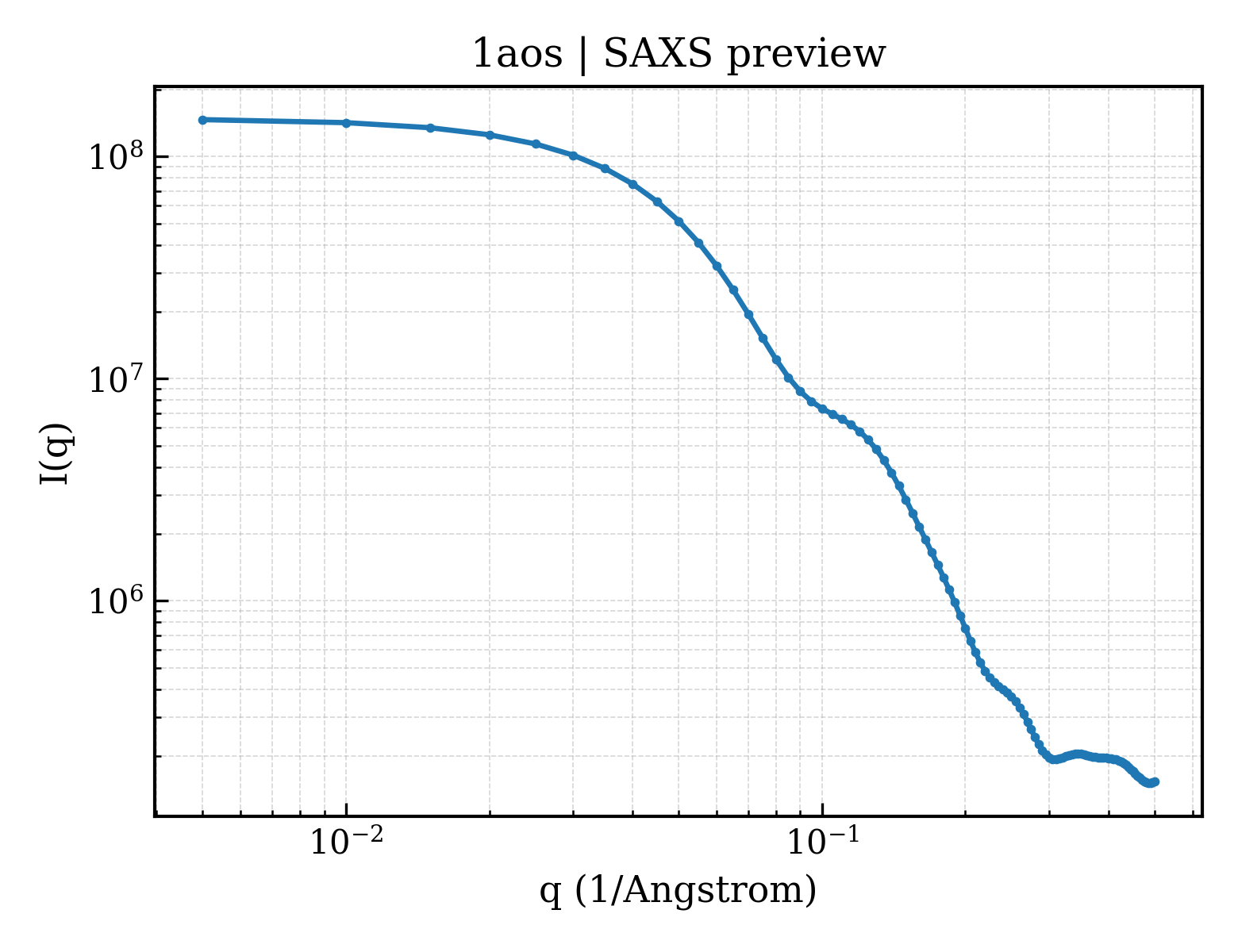

SAXS Profile

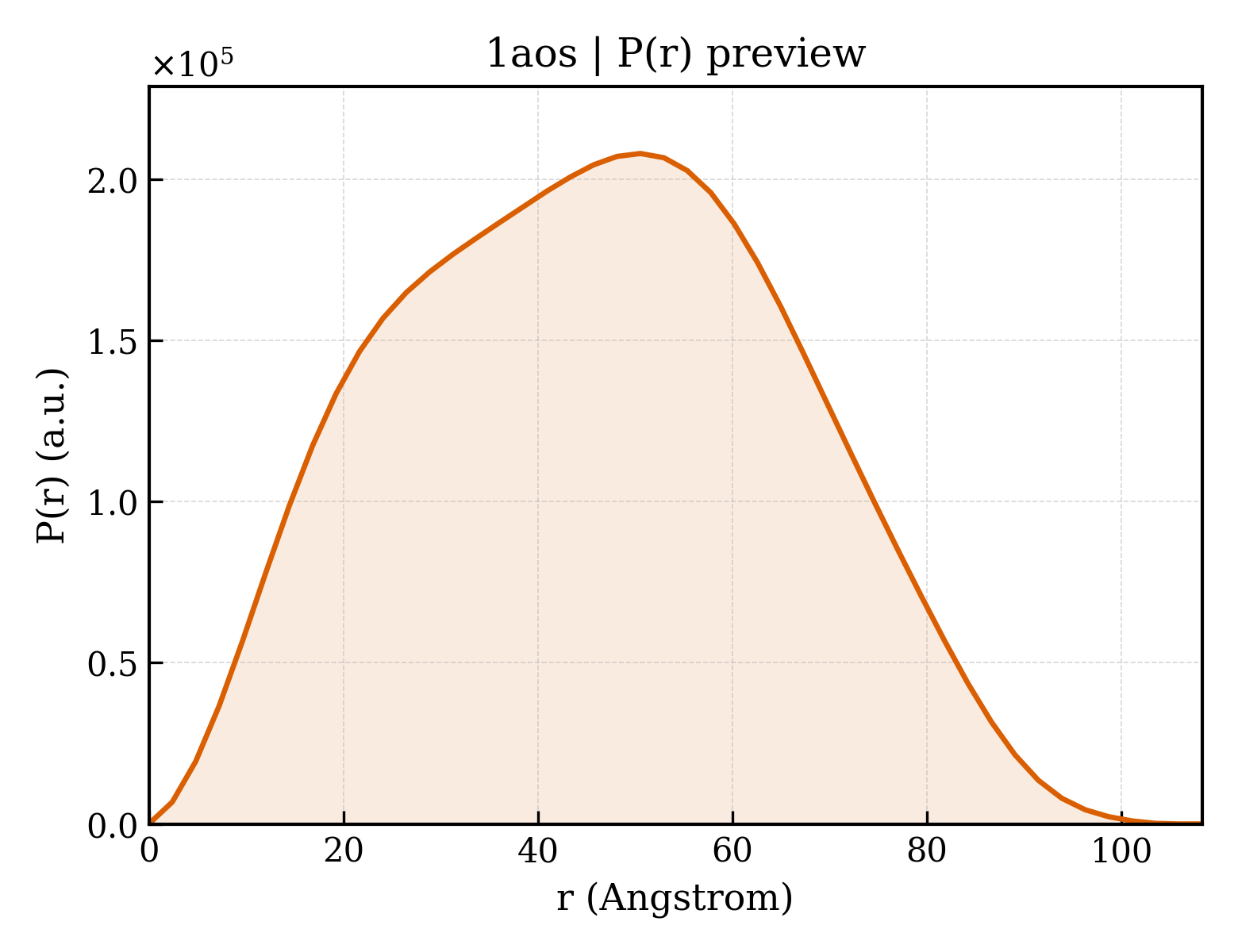

P(r) Distribution

▼

1. Structure Basics

entry_id	1aos
deposition_date	1997-07-10
title	HUMAN ARGININOSUCCINATE LYASE
keywords	ARGININE BIOSYNTHESIS, LYASE, UREA CYCLE; LYASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	35.47 Å
rg_electron	34.92 Å
i0	148024000.00
molecular_weight	96649.0 kDa
excluded_volume	120720 Å³
envelope_volume	160410 Å³
shell_volume	39013 Å³
envelope_diameter	109.5 Å
shell_rg	40.61 Å
envelope_rg	34.25 Å
shape_rg	34.90 Å
total_rg	35.37 Å
total_atoms	6788
n_residues	868
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	108.3 Å
rg_real	35.34 Å
rg_real_error	0.75 Å
i0_real	1.4800e+08
i0_real_error	2.1010e+06
rg_reciprocal	35.42 Å
i0_reciprocal	148000000.0000
total_estimate	0.9065
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	1
r_peak_primary	50.5 Å
skewness	0.072
kurtosis	-0.728
angular_range	— – 0.2250 Å⁻¹
current_alpha	0.0000
highest_alpha	15540000.0000
n_real_points	46
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.975; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.858

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

▶

6. Citations (1)

▶

length_a	104.600 Å
length_b	104.600 Å
length_c	183.200 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	12

space_group	P 31 2 1
int_tables_number	152
crystal_system	—

resolution	4.200 Å
resolution_low	8.000 Å
r_factor	0.1879
r_work	0.1879
r_free	0.2980

description	ARGININOSUCCINATE LYASE
formula_weight	51976.2 kDa
ec_number	4.3.2.1
src_method	man
entity_count	2

type	polypeptide(L)
strand_id	A,B
atom_count	6788

HUMAN ARGININOSUCCINATE LYASE

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (1)

Entity 1 polymer

Polymer

Source

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli BL21
