SAXSdb — 1k62

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Argininosuccinate Lyase

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ARLY_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–464； UniProt 1–464 Author chain B； PDBConstruct 1–464； UniProt 1–464

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1k62
Deposition date deposition_date	2001-10-14
Structure title title	Crystal Structure of the Human Argininosuccinate Lyase Q286R Mutant
Keywords keywords	intragenic complementation, arginiosuccinate lyase, delta crystallin, enzyme mechanism, lyase; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1k62__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1k62__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

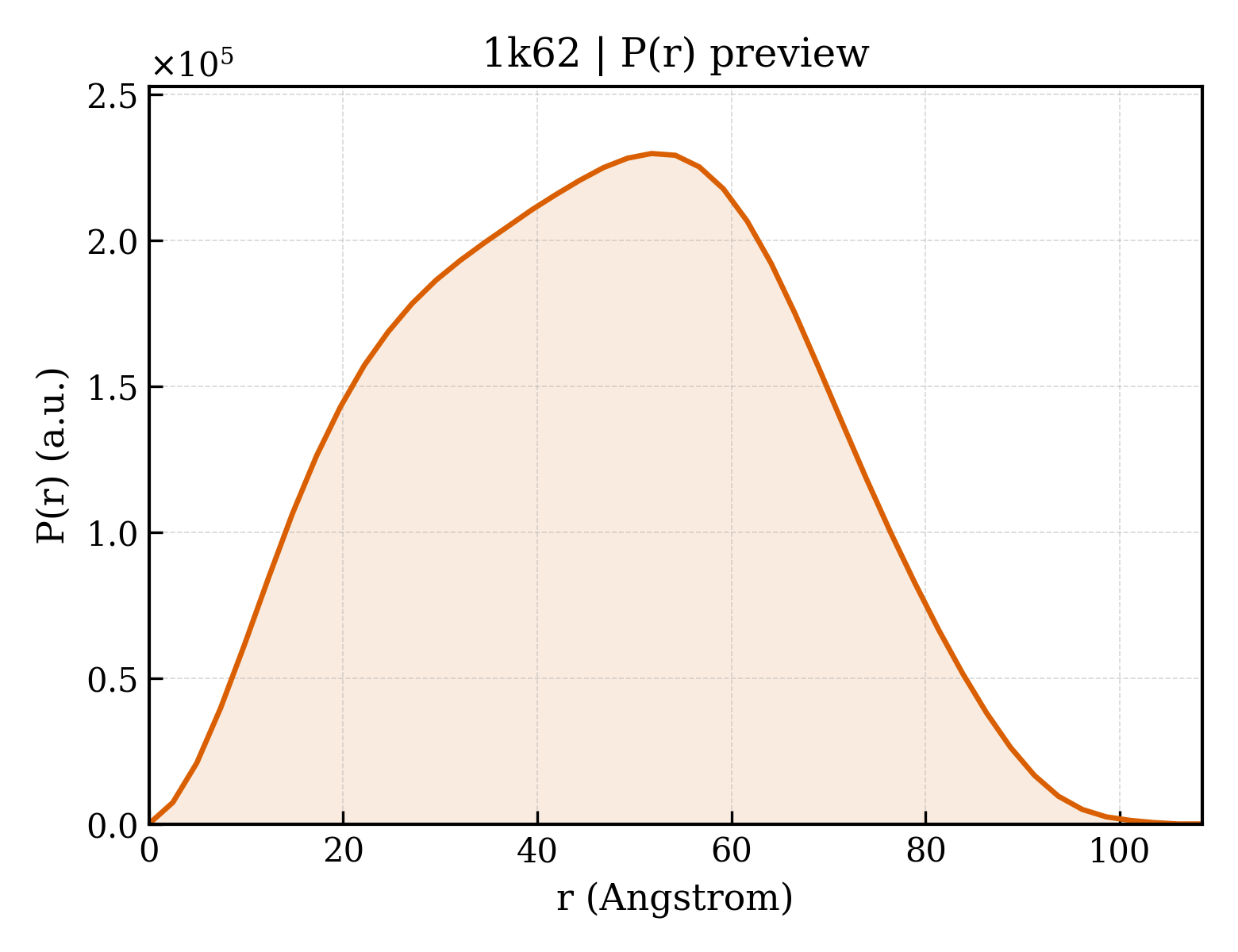

1k62__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.04 Å
Rg (electron density)	36.40 Å
Total Rg	36.89 Å
Atom count	14244
Residues	1818
Excluded volume	252950 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1k62__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Argininosuccinate Lyase
Molecular weight formula_weight	51934.2 kDa
EC 编号 ec_number	4.3.2.1
Mutation mutation	Q286R
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	7344

MASESGKLWGGRFVGAVDPIMEKFNASIAYDRHLWEVDVQGSKAYSRGLEKAGLLTKAEMDQILHGLDKVAEEWAQGTFKLNSNDEDIHTANERRLKELIGATAGKLHTGRSRNDQVVTDLRLWMRQTCSTLSGLLWELIRTMVDRAEAERDVLFPGYTHLQRAQPIRWSHWILSHAVALTRDSERLLEVRKRINVLPLGSGAIAGNPLGVDRELLRAELNFGAITLNSMDATSERDFVAEFLFWRSLCMTHLSRMAEDLILYCTKEFSFVQLSDAYSTGSSLMPRKKNPDSLELIRSKAGRVFGRCAGLLMTLKGLPSTYNKDLQEDKEAVFEVSDTMSAVLQVATGVISTLQIHQENMGQALSPDMLATDLAYYLVRKGMPFRQAHEASGKAVFMAETKGVALNQLSLQELQTISPLFSGDVICVWDYRHSVEQYGALGGTARSSVDWQIRQVRALLQAQQA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	222

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1k62a_
Class class	a — All alpha proteins
Fold Fold fold	a.127 — L-aspartase-like
Superfamily Superfamily superfamily	a.127.1 — L-aspartase-like
Family Family family	a.127.1.1 — L-aspartase/fumarase

Domain ID domain_id	d1k62b_
Class class	a — All alpha proteins
Fold Fold fold	a.127 — L-aspartase-like
Superfamily Superfamily superfamily	a.127.1 — L-aspartase-like
Family Family family	a.127.1.1 — L-aspartase/fumarase

CATH v4.4 (6 domains)

Domain ID domain_id	1k62A01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	275 — Fumarase C; Chain B, domain 1
Homologous superfamily homologous superfamily	10 — Fumarase/aspartase (N-terminal domain)

Domain ID domain_id	1k62A02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	200 — Fumarase C; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

Domain ID domain_id	1k62A03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	40 — Ribonucleotide Reductase Protein R1; domain 1
Homologous superfamily homologous superfamily	30 — Fumarase/aspartase (C-terminal domain)

Domain ID domain_id	1k62B01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	275 — Fumarase C; Chain B, domain 1
Homologous superfamily homologous superfamily	10 — Fumarase/aspartase (N-terminal domain)

Domain ID domain_id	1k62B02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	200 — Fumarase C; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Fumarase/aspartase (Central domain)

Domain ID domain_id	1k62B03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	40 — Ribonucleotide Reductase Protein R1; domain 1
Homologous superfamily homologous superfamily	30 — Fumarase/aspartase (C-terminal domain)

▶

Unit-cell length a length_a	104.202 Å
Unit-cell length b length_b	104.202 Å
Unit-cell length c length_c	183.019 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	2.650 Å
Low-resolution limit resolution_low	16.980 Å
R factor r_factor	0.1750
R_work r_work	0.1750
R_free r_free	0.2290

Crystal Structure of the Human Argininosuccinate Lyase Q286R Mutant
