BACTERIOPHAGE MS2 CAPSID PROTEIN/RNA COMPLEX

entry_id	1aq3
deposition_date	1997-08-06
title	BACTERIOPHAGE MS2 CAPSID PROTEIN/RNA COMPLEX
keywords	COMPLEX (COAT PROTEIN-RNA), COAT PROTEIN, RNA-BINDING, VIRAL PROTEIN CAPSID, RNA FRAGMENT, Icosahedral virus, Virus-RNA COMPLEX; Virus/RNA
method	X-RAY DIFFRACTION

rg_guinier	27.49 Å
rg_electron	26.63 Å
i0	54417300.00
molecular_weight	50135.0 kDa
excluded_volume	59842 ų
envelope_volume	90516 ų
shell_volume	28766 ų
envelope_diameter	91.8 Å
shell_rg	33.47 Å
envelope_rg	26.42 Å
shape_rg	26.62 Å
total_rg	27.39 Å
total_atoms	3486
n_residues	415
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	87.4 Å
rg_real	27.37 Å
rg_real_error	0.60 Å
i0_real	5.4420e+07
i0_real_error	8.2270e+05
rg_reciprocal	27.41 Å
i0_reciprocal	54420000.0000
total_estimate	0.9054
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	36.1 Å
skewness	0.165
kurtosis	-0.494
angular_range	— – 0.2900 Å−1
current_alpha	0.0000
highest_alpha	3929000.0000
n_real_points	59
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.924; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.996

Unit Cell

length_a	288.000 Å
length_b	288.000 Å
length_c	653.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	540

Symmetry

space_group	H 3 2
int_tables_number	155
crystal_system	—

Refinement

resolution	2.800 Å
resolution_low	10.000 Å
r_factor	—
r_work	0.2040
r_free	—

Diffraction

temperature

290.0 K

Files (7)

• pr_distribution /app/data/pr_computation/aq/1aq3/pr_distribution.json
• pr_output /app/data/pr_computation/aq/1aq3/1aq3.pr.out
• pr_plot /app/data/visualization/pr_computation/aq/1aq3/1aq3_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/aq/1aq3/1aq3.dat
• saxs_fit /app/data/saxs_computation/aq/1aq3/1aq3.fit
• saxs_log /app/data/saxs_computation/aq/1aq3/1aq3.log

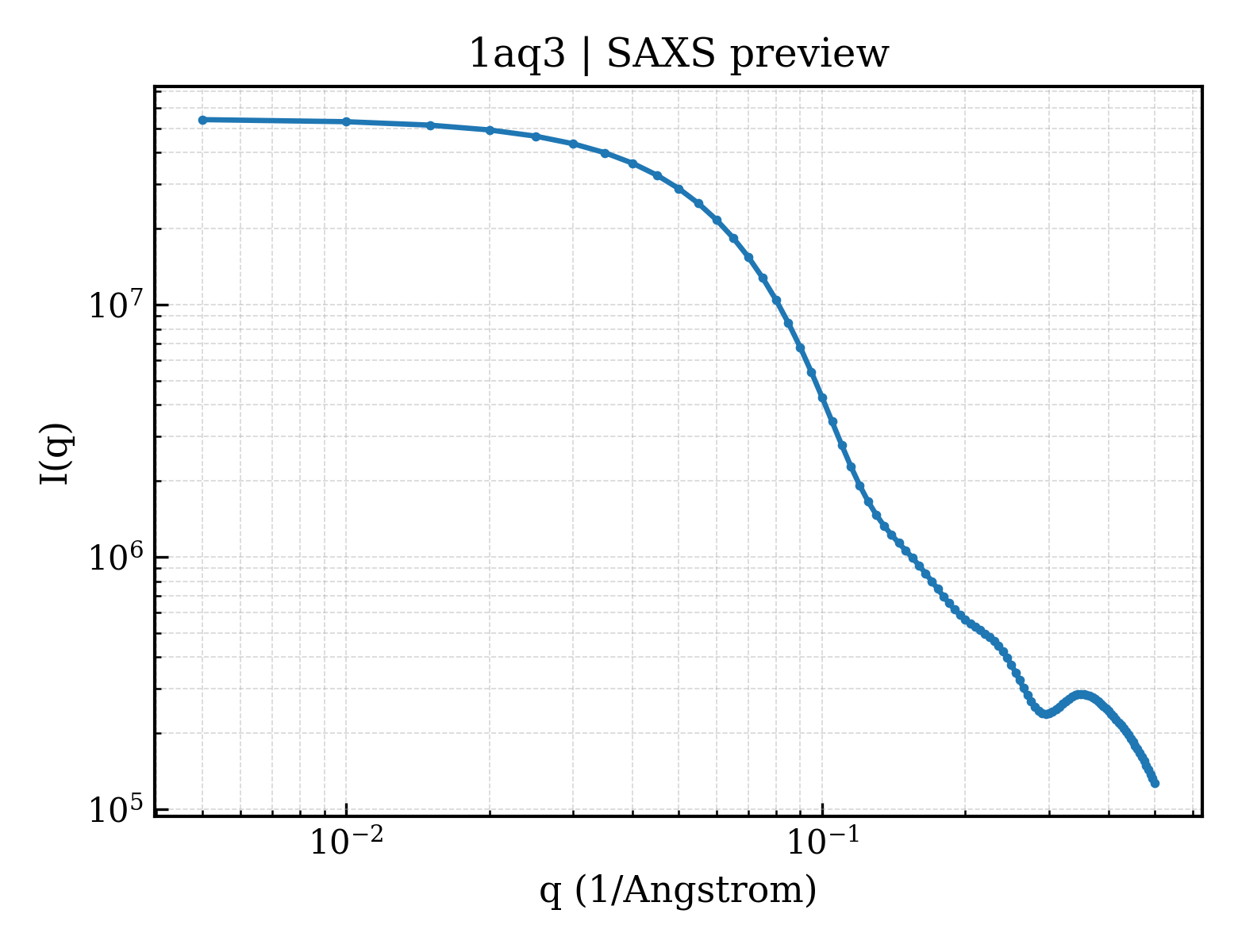

• saxs_plot /app/data/visualization/saxs_computation/aq/1aq3/1aq3_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/aq/1aq3/1aq3.fit
pddf	/app/data/pr_computation/aq/1aq3/1aq3.pr.out
profile	/app/data/saxs_computation/aq/1aq3/1aq3.dat
