1bms
CRYSTAL STRUCTURE OF MS2 CAPSIDS WITH MUTATIONS IN THE SUBUNIT FG LOOP

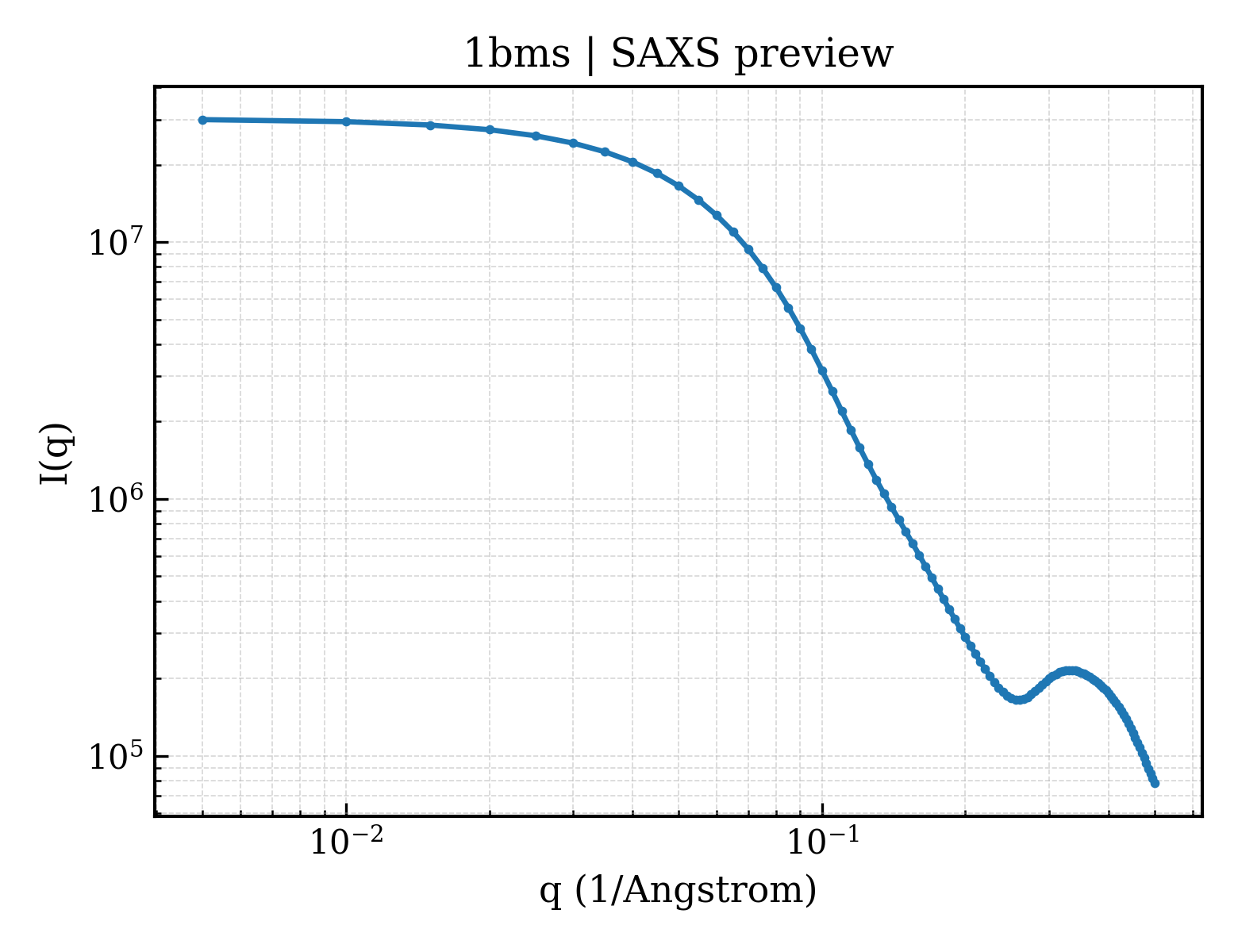

SAXS Profile

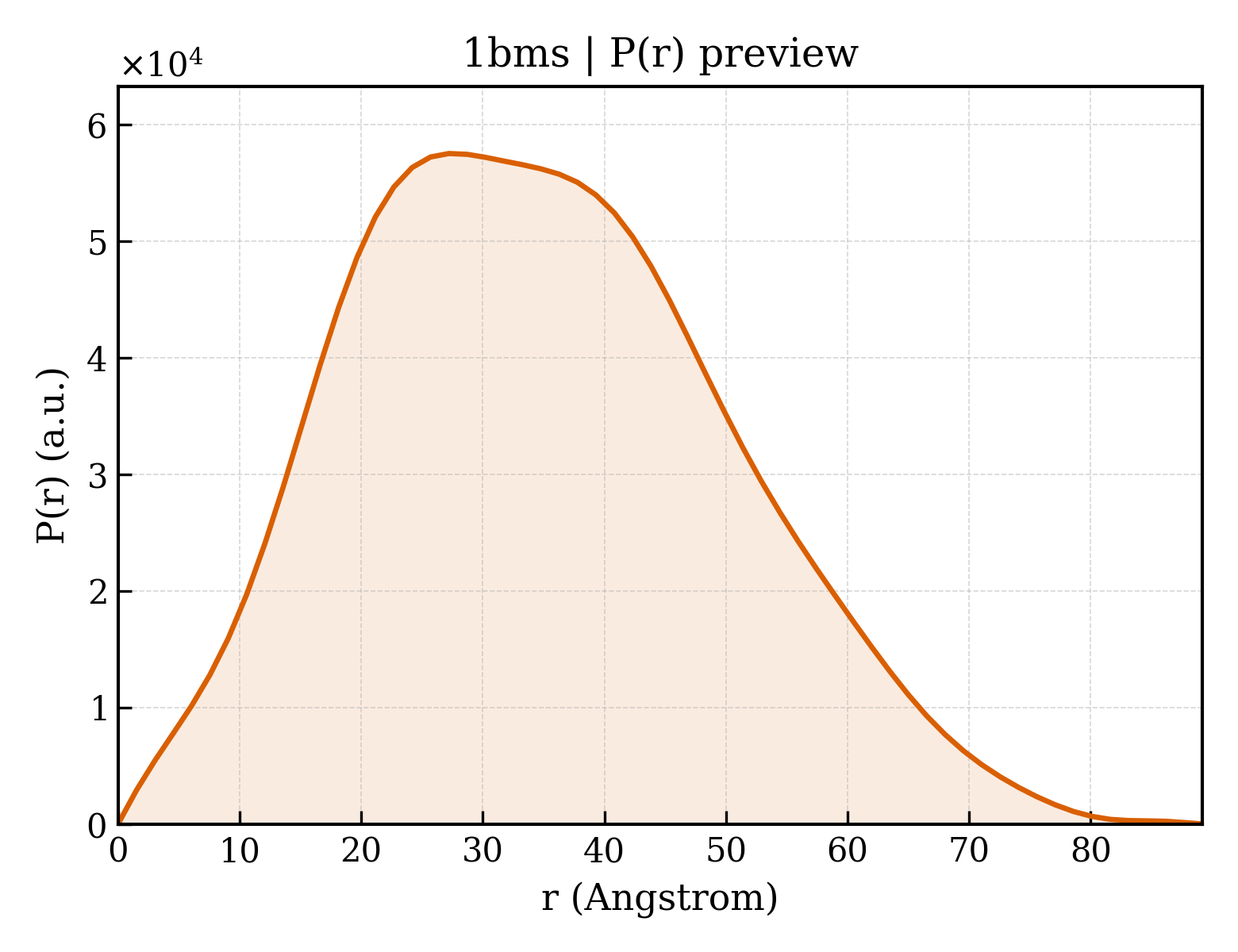

P(r) Distribution
1. Structure Basics
| entry_id | 1bms |
| deposition_date | 1995-08-29 |
| title | CRYSTAL STRUCTURE OF MS2 CAPSIDS WITH MUTATIONS IN THE SUBUNIT FG LOOP |
| keywords | BACTERIOPHAGE COAT PROTEIN, Icosahedral virus, Virus; VIRUS |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 26.85 Å |
| rg_electron | 26.12 Å |
| i0 | 30131900.00 |
| molecular_weight | 41240.0 kDa |
| excluded_volume | 51478 ų |
| envelope_volume | 75701 ų |
| shell_volume | 25215 ų |
| envelope_diameter | 91.9 Å |
| shell_rg | 32.20 Å |
| envelope_rg | 26.07 Å |
| shape_rg | 26.13 Å |
| total_rg | 26.88 Å |
| total_atoms | 2898 |
| n_residues | 387 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 89.2 Å |
| rg_real | 26.84 Å |
| rg_real_error | 0.65 Å |
| i0_real | 3.0130e+07 |
| i0_real_error | 3.9570e+05 |
| rg_reciprocal | 26.84 Å |
| i0_reciprocal | 30130000.0000 |
| total_estimate | 0.8874 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 27.2 Å |
| skewness | 0.298 |
| kurtosis | -0.392 |
| angular_range | — – 0.2950 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 4086000.0000 |
| n_real_points | 60 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.866; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.967; Smooth: 0.966 |
