SAXSdb — 1asx

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

THERMOSOME

Thermoplasma acidophilum

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 214–365	Fragment：ALPHA SUBUNIT, APICAL DOMAIN, SUBSTRATE-BINDING DOMAIN	PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 3.5；pH 3.5	Resolution 2.80 Å R-free 0.272

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1ASX	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1A6D THERMOSOME FROM T. ACIDOPHILUM Deposited 1998-02-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain A 1–545（545 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；pH 5.6	Resolution 2.60 Å R-free 0.298
1A6D THERMOSOME FROM T. ACIDOPHILUM Deposited 1998-02-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–545（545 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；pH 5.6	Resolution 2.60 Å R-free 0.298
1A6E THERMOSOME-MG-ADP-ALF3 COMPLEX Deposited 1998-02-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain A 1–545（545 aa）	Not recorded	MG MAGNESIUM ION × 16 ADP ADENOSINE-5'-DIPHOSPHATE × 16 AF3 ALUMINUM FLUORIDE × 16	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；pH 5.6	Resolution 3.20 Å R-free 0.285
1A6E THERMOSOME-MG-ADP-ALF3 COMPLEX Deposited 1998-02-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–545（545 aa）	Not recorded	MG MAGNESIUM ION × 8 ADP ADENOSINE-5'-DIPHOSPHATE × 8 AF3 ALUMINUM FLUORIDE × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；pH 5.6	Resolution 3.20 Å R-free 0.285
1ASS APICAL DOMAIN OF THE CHAPERONIN FROM THERMOPLASMA ACIDOPHILUM Deposited 1997-08-11	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 214–365（152 aa） Fragment：ALPHA-SUBUNIT, APICAL DOMAIN, SUBSTRATE-BINDING DOMAIN	Not recorded	NA SODIUM ION × 2 PO4 PHOSPHATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions pH 3.5；pH 3.5	Resolution 2.30 Å R-free 0.251

3 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	THSA_THEAC
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–153； UniProt 214–365

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1asx
Deposition date deposition_date	1997-08-11
Structure title title	APICAL DOMAIN OF THE CHAPERONIN FROM THERMOPLASMA ACIDOPHILUM
Keywords keywords	CHAPERONIN, HSP60, THERMOSOME, TCP1, GROEL, THERMOPLASMA ACIDOPHILUM, ATP-BINDING; CHAPERONIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	17.66 Å
Radius of gyration Rg (electron density) rg_electron	16.73 Å
Forward intensity I(0) i0	5547330.00
Molecular weight molecular_weight	16931.0 kDa
Excluded volume excluded_volume	21288 Å³
Envelope volume envelope_volume	25128 Å³
Hydration-shell volume shell_volume	13491 Å³
Envelope diameter envelope_diameter	63.5 Å
Shell Rg shell_rg	21.84 Å
Envelope Rg envelope_rg	17.34 Å
Shape Rg shape_rg	16.72 Å
Total Rg total_rg	17.71 Å
Total atoms total_atoms	1180
Residues n_residues	152
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

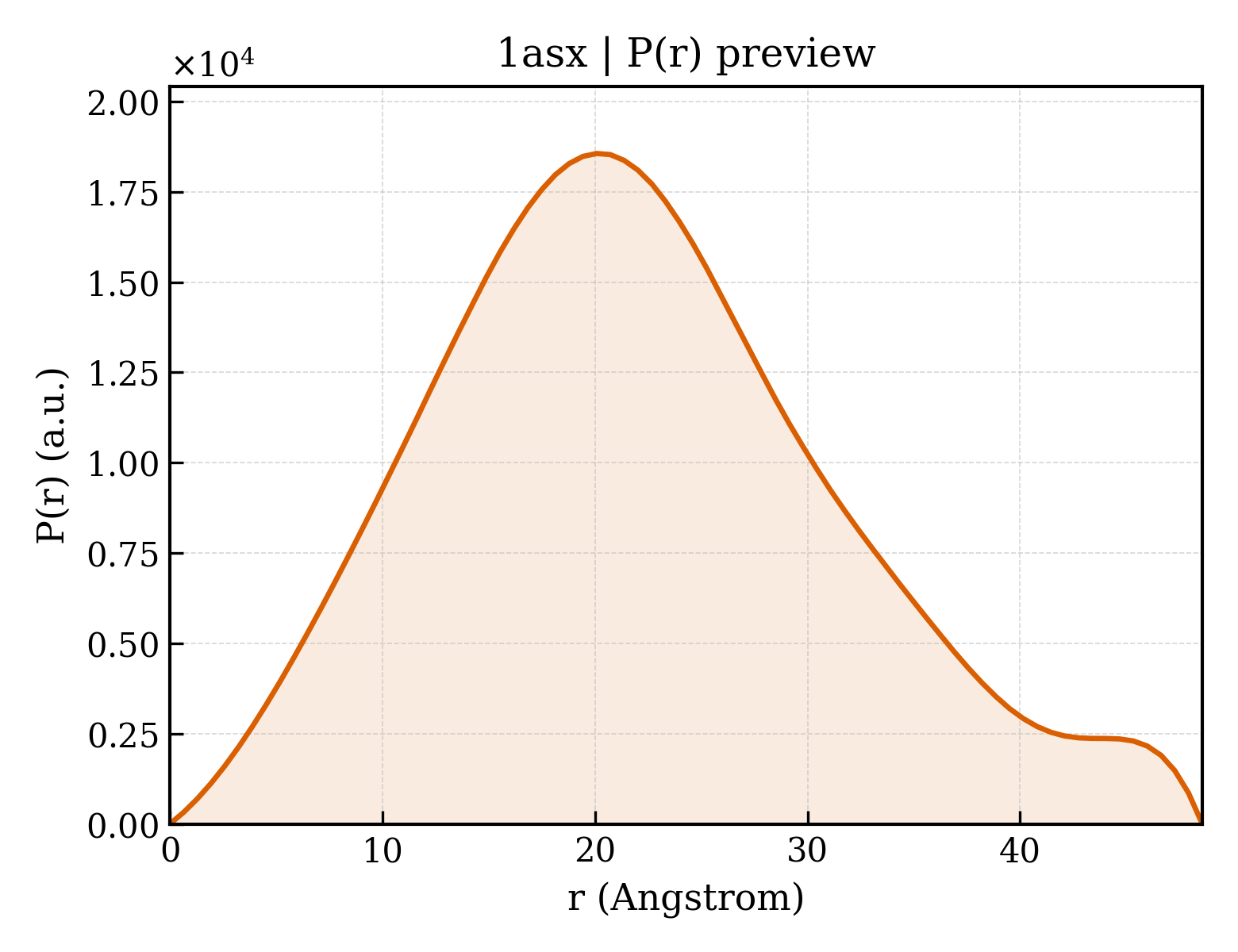

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	48.6 Å
Rg (real space) rg_real	16.85 Å
Rg uncertainty (real space) rg_real_error	0.08 Å
I(0) (real space) i0_real	5.3000e+06
I(0) uncertainty (real space) i0_real_error	5.0920e+04
Rg (reciprocal space) rg_reciprocal	17.74 Å
I(0) (reciprocal space) i0_reciprocal	5547000.0000
Solution quality estimate total_estimate	0.6753
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	20.1 Å
Skewness Skewness skewness	0.371
Kurtosis Kurtosis kurtosis	-0.200
Angular range angular_range	— – 0.4500 Å⁻¹
Current regularization parameter α current_alpha	4.2140
Highest regularization parameter α highest_alpha	762500.0000
Real-space data points n_real_points	76
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.947; Stabil: 0.980; Sysdev: 0.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	THERMOSOME
Molecular weight formula_weight	17822.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1186

MSGIVIDKEKVHSKMPDVVKNAKIALIDSALEIKKTEIEAKVQISDPSKIQDFLNQETNTFKQMVEKIKKSGANVVLCQKGIDDVAQHYLAKEGIYAVRRVKKSDMEKLAKATGAKIVTDLDDLTPSVLGEAETVEERKIGDDRMTFVMGCKNHHHHHH

来源 Source

来源生物 organism	Thermoplasma acidophilum
NCBI Class编号 ncbi_taxonomy_id	2303
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	6

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1asxa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.8 — The 'swivelling' beta/beta/alpha domain
Superfamily Superfamily superfamily	c.8.5 — GroEL apical domain-like
Family Family family	c.8.5.2 — Group II chaperonin (CCT, TRIC), apical domain

CATH v4.4 (1 domains)

Domain ID domain_id	1asxA00
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	7 — GroEL
Homologous superfamily homologous superfamily	10 — GroEL

▶

8. Citations (1)

▶

Unit-cell length a length_a	79.910 Å
Unit-cell length b length_b	79.910 Å
Unit-cell length c length_c	70.250 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.2220
R_work r_work	0.2220
R_free r_free	0.2720

fit	/app/data/saxs_computation/as/1asx/1asx.fit
pddf	/app/data/pr_computation/as/1asx/1asx.pr.out
profile	/app/data/saxs_computation/as/1asx/1asx.dat
