1ass
APICAL DOMAIN OF THE CHAPERONIN FROM THERMOPLASMA ACIDOPHILUM
SAXS Profile

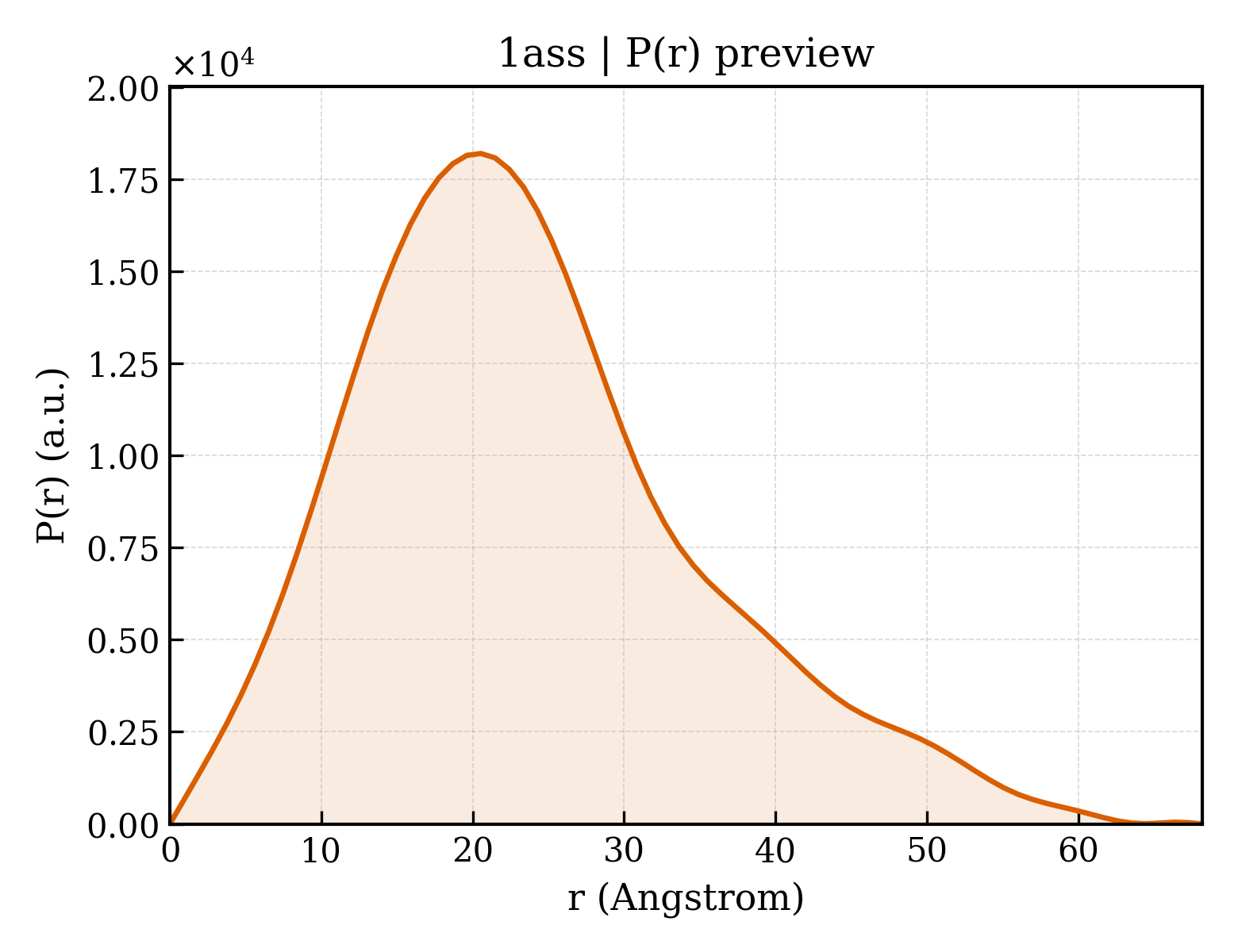

P(r) Distribution
1. Structure Basics
| entry_id | 1ass |
| deposition_date | 1997-08-11 |
| title | APICAL DOMAIN OF THE CHAPERONIN FROM THERMOPLASMA ACIDOPHILUM |
| keywords | CHAPERONIN, HSP60, THERMOSOME, TCP1, GROEL, THERMOPLASMA ACIDOPHILUM, ATP-BINDING; CHAPERONIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.45 Å |
| rg_electron | 17.14 Å |
| i0 | 5793090.00 |
| molecular_weight | 17144.0 kDa |
| excluded_volume | 21422 ų |
| envelope_volume | 25759 ų |
| shell_volume | 13614 ų |
| envelope_diameter | 67.8 Å |
| shell_rg | 22.16 Å |
| envelope_rg | 17.86 Å |
| shape_rg | 17.08 Å |
| total_rg | 18.21 Å |
| total_atoms | 1191 |
| n_residues | 152 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 68.2 Å |
| rg_real | 18.61 Å |
| rg_real_error | 0.68 Å |
| i0_real | 5.7930e+06 |
| i0_real_error | 8.1470e+04 |
| rg_reciprocal | 18.59 Å |
| i0_reciprocal | 5793000.0000 |
| total_estimate | 0.7900 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 20.6 Å |
| skewness | 0.659 |
| kurtosis | 0.192 |
| angular_range | — – 0.4300 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 922200.0000 |
| n_real_points | 74 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.495; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.786; Smooth: 0.994 |
