1at0
17-kDA fragment of hedgehog C-terminal autoprocessing domain
SAXS Profile

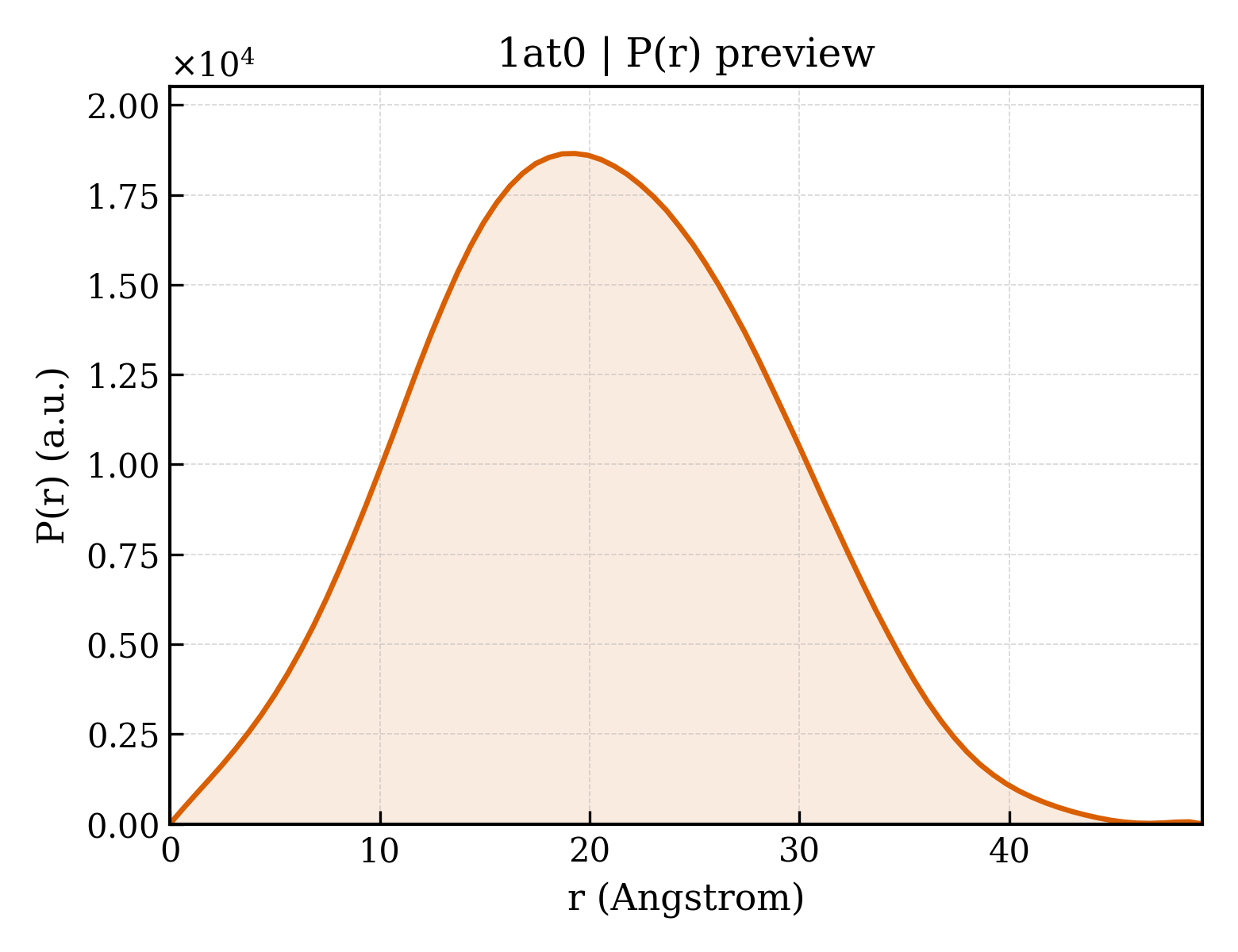

P(r) Distribution
1. Structure Basics
| entry_id | 1at0 |
| deposition_date | 1997-08-15 |
| title | 17-kDA fragment of hedgehog C-terminal autoprocessing domain |
| keywords | DEVELOPMENTAL SIGNALING MOLECULE, CHOLESTEROL TRANSFER, SIGNALING PROTEIN; SIGNALING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.62 Å |
| rg_electron | 14.31 Å |
| i0 | 5106010.00 |
| molecular_weight | 15971.0 kDa |
| excluded_volume | 19883 ų |
| envelope_volume | 21789 ų |
| shell_volume | 12911 ų |
| envelope_diameter | 48.5 Å |
| shell_rg | 20.10 Å |
| envelope_rg | 14.53 Å |
| shape_rg | 14.29 Å |
| total_rg | 15.48 Å |
| total_atoms | 1366 |
| n_residues | 142 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 49.2 Å |
| rg_real | 15.52 Å |
| rg_real_error | 0.27 Å |
| i0_real | 5.1060e+06 |
| i0_real_error | 5.7160e+04 |
| rg_reciprocal | 15.53 Å |
| i0_reciprocal | 5106000.0000 |
| total_estimate | 0.8956 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 19.3 Å |
| skewness | 0.119 |
| kurtosis | -0.423 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 942900.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.886; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.989 |
