2ibg

Crystal Structure of Hedgehog Bound to the FNIII Domains of Ihog

Method: X-RAY DIFFRACTION D_max: 127.8 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CG9211-PA

Drosophila melanogaster

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 466–677	Fragment：Extracellular FNIII Domains	Protein hedgehog × 1 （Q02936） PO4 PHOSPHATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.4；293 K；2.0M Na/K phosphate pH 6.4, 0.2M lithium sulfate, 0.05M CAPS pH 10.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.246
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 466–677	Fragment：Extracellular FNIII Domains	Protein hedgehog × 1 （Q02936） PO4 PHOSPHATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.4；293 K；2.0M Na/K phosphate pH 6.4, 0.2M lithium sulfate, 0.05M CAPS pH 10.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.246
3	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 466–677	Fragment：Extracellular FNIII Domains	Protein hedgehog × 1 （Q02936） PO4 PHOSPHATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.4；293 K；2.0M Na/K phosphate pH 6.4, 0.2M lithium sulfate, 0.05M CAPS pH 10.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.246
4	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 466–677	Fragment：Extracellular FNIII Domains	Protein hedgehog × 1 （Q02936） PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.4；293 K；2.0M Na/K phosphate pH 6.4, 0.2M lithium sulfate, 0.05M CAPS pH 10.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.246

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2IBG	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2IBB Crystal Structure of the First and Second FNIII Domains of Ihog Deposited 2006-09-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 466–676（211 aa） Fragment：Extracellular FNIII Domains	Not recorded	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.9；293 K；0.05M Tris-HCl pH 7.9, 23% PEG 3350, 0.2M ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.40 Å R-free 0.275

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q9VM64_DROME
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–214； UniProt 466–677 Author chain B； PDBConstruct 3–214； UniProt 466–677 Author chain C； PDBConstruct 3–214； UniProt 466–677 Author chain D； PDBConstruct 3–214； UniProt 466–677

Protein hedgehog

Drosophila melanogaster

UniProt Q02936

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain F； UniProt 49–198	Fragment：protein hedgehog N-product	CG9211-PA × 1 （Q9VM64） PO4 PHOSPHATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.4；293 K；2.0M Na/K phosphate pH 6.4, 0.2M lithium sulfate, 0.05M CAPS pH 10.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.246
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain E； UniProt 49–198	Fragment：protein hedgehog N-product	CG9211-PA × 1 （Q9VM64） PO4 PHOSPHATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.4；293 K；2.0M Na/K phosphate pH 6.4, 0.2M lithium sulfate, 0.05M CAPS pH 10.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.246
3	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain H； UniProt 49–198	Fragment：protein hedgehog N-product	CG9211-PA × 1 （Q9VM64） PO4 PHOSPHATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.4；293 K；2.0M Na/K phosphate pH 6.4, 0.2M lithium sulfate, 0.05M CAPS pH 10.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.246
4	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain G； UniProt 49–198	Fragment：protein hedgehog N-product	CG9211-PA × 1 （Q9VM64） PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.4；293 K；2.0M Na/K phosphate pH 6.4, 0.2M lithium sulfate, 0.05M CAPS pH 10.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.246

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 2IBG	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AT0 17-kDA fragment of hedgehog C-terminal autoprocessing domain Deposited 1997-08-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 258–402（145 aa） Fragment：17-KDA FRAGMENT OF C-TERMINAL DOMAIN	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.8；20% PEG 3350, 80 mM AMMONIUM SULFATE, 10 mM SODIUM CACODYLATE pH 5.8	Resolution 1.90 Å R-free 0.275
6TD6 Structure of Drosophila melanogaster Dispatched bound to a modified Hedgehog ligand, HhN-C85II Deposited 2019-11-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–471（471 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.76 Å
6TYY Hedgehog autoprocessing mutant D46H Deposited 2019-08-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 258–403（146 aa）	Mutation：D46H Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1 M Hepes, pH 7.5, 3.4 M sodium formate	Resolution 1.36 Å R-free 0.195

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HH_DROME
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E； PDBConstruct 1–150； UniProt 49–198 Author chain F； PDBConstruct 1–150； UniProt 49–198 Author chain G； PDBConstruct 1–150； UniProt 49–198 Author chain H； PDBConstruct 1–150； UniProt 49–198

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

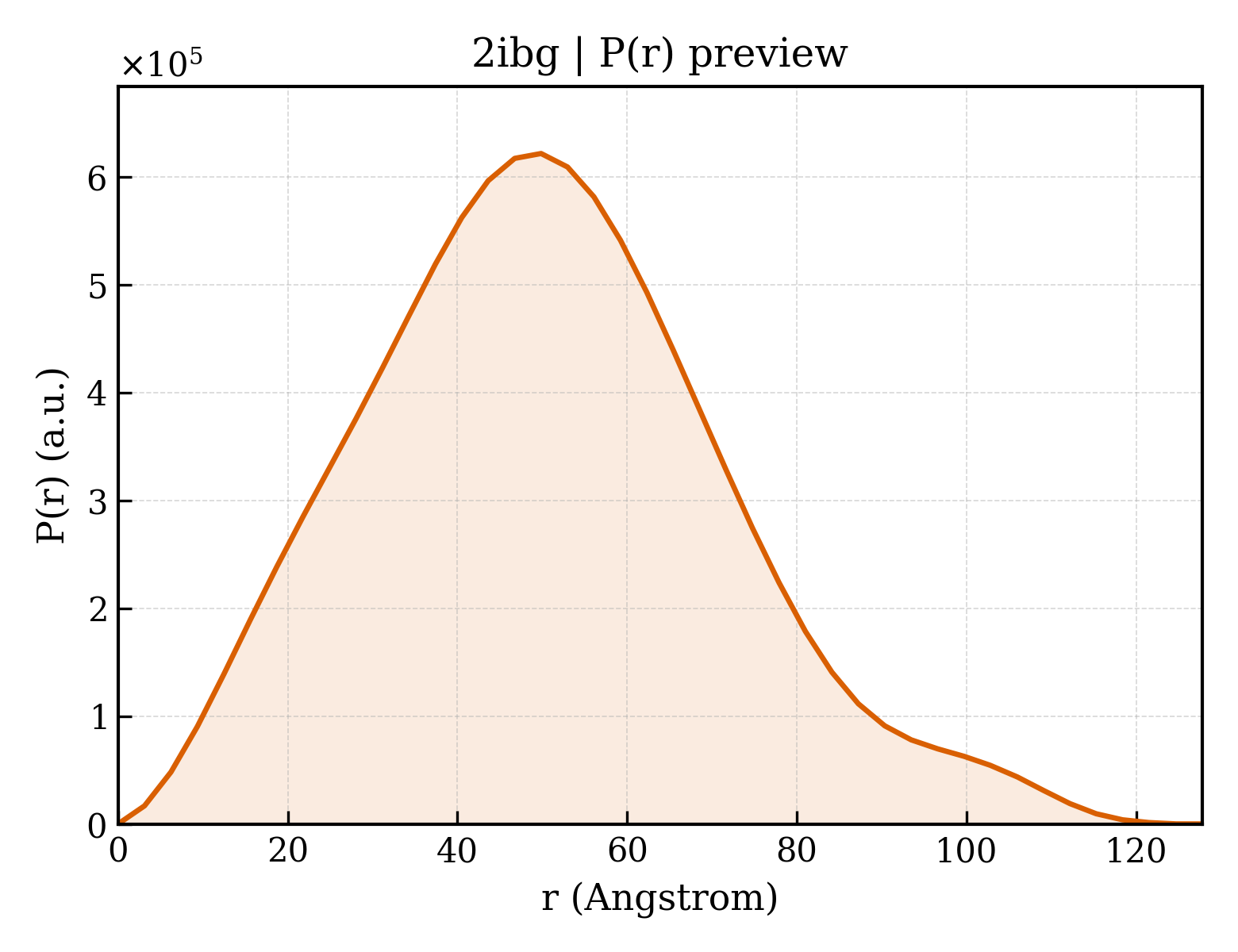

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ibg
Deposition date deposition_date	2006-09-11
Structure title title	Crystal Structure of Hedgehog Bound to the FNIII Domains of Ihog
Keywords keywords	ihog, hedgehog, fibronectin type III, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	38.68 Å
Radius of gyration Rg (electron density) rg_electron	38.17 Å
Forward intensity I(0) i0	403003000.00
Molecular weight molecular_weight	161130.0 kDa
Excluded volume excluded_volume	200960 Å³
Envelope volume envelope_volume	280620 Å³
Hydration-shell volume shell_volume	61440 Å³
Envelope diameter envelope_diameter	129.5 Å
Shell Rg shell_rg	44.21 Å
Envelope Rg envelope_rg	37.06 Å
Shape Rg shape_rg	38.18 Å
Total Rg total_rg	38.55 Å
Total atoms total_atoms	11355
Residues n_residues	1401
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	127.8 Å
Rg (real space) rg_real	38.58 Å
Rg uncertainty (real space) rg_real_error	0.91 Å
I(0) (real space) i0_real	4.0300e+08
I(0) uncertainty (real space) i0_real_error	6.3080e+06
Rg (reciprocal space) rg_reciprocal	38.65 Å
I(0) (reciprocal space) i0_reciprocal	403000000.0000
Solution quality estimate total_estimate	0.8523
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	49.9 Å
Skewness Skewness skewness	0.332
Kurtosis Kurtosis kurtosis	-0.072
Angular range angular_range	— – 0.2050 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	29840000.0000
Real-space data points n_real_points	42
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.770; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.776

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	CG9211-PA
Molecular weight formula_weight	24290.4 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	11644

STYPPTPPNVTRLSDESVMLRWMVPRNDGLPIVIFKVQYRMVGKRKNWQTTNDNIPYGKPKWNSELGKSFTASVTDLKPQHTYRFRILAVYSNNDNKESNTSAKFYLQPGAALDPMPVPELLEIEEYSETAVVLHWSLASDADEHLITGYYAYYRPSSSAGEYFKATIEGAHARSFKIAPLETATMYEFKLQSFSAASASEFSALKQGRTQRPK

来源 Source

来源生物 organism	Drosophila melanogaster
通用名 common_name	fruit fly
NCBI Class编号 ncbi_taxonomy_id	7227
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Protein hedgehog
Molecular weight formula_weight	17271.4 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F,G,H

LYPLVLKQTIPNLSEYTNSASGPLEGVIRRDSPKFKDLVPNYNRDILFRDEEGTGADRLMSKRCKEKLNVLAYSVMNEWPGIRLLVTESWDEDYHHGQESLHYEGRAVTIATSDRDQSKYGMLARLAVEAGFDWVSYVSRRHIYCSVKSD

来源 Source

来源生物 organism	Drosophila melanogaster
通用名 common_name	fruit fly
NCBI Class编号 ncbi_taxonomy_id	7227
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	289

▼

7. Fold Classification (SCOP + CATH) 28 domains

SCOP 2.08 (16 domains)

Domain ID domain_id	d2ibga1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.2 — Fibronectin type III
Family Family family	b.1.2.1 — Fibronectin type III

Domain ID domain_id	d2ibga2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.2 — Fibronectin type III
Family Family family	b.1.2.1 — Fibronectin type III

Domain ID domain_id	d2ibga3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2ibgb1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.2 — Fibronectin type III
Family Family family	b.1.2.1 — Fibronectin type III

Domain ID domain_id	d2ibgb2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.2 — Fibronectin type III
Family Family family	b.1.2.1 — Fibronectin type III

Domain ID domain_id	d2ibgb3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2ibgc1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.2 — Fibronectin type III
Family Family family	b.1.2.1 — Fibronectin type III

Domain ID domain_id	d2ibgc2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.2 — Fibronectin type III
Family Family family	b.1.2.1 — Fibronectin type III

Domain ID domain_id	d2ibgc3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2ibgd1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.2 — Fibronectin type III
Family Family family	b.1.2.1 — Fibronectin type III

Domain ID domain_id	d2ibgd2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.2 — Fibronectin type III
Family Family family	b.1.2.1 — Fibronectin type III

Domain ID domain_id	d2ibgd3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d2ibge1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.65 — Hedgehog/DD-peptidase
Superfamily Superfamily superfamily	d.65.1 — Hedgehog/DD-peptidase
Family Family family	d.65.1.2 — Hedgehog (development protein), N-terminal signaling domain

Domain ID domain_id	d2ibgf_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.65 — Hedgehog/DD-peptidase
Superfamily Superfamily superfamily	d.65.1 — Hedgehog/DD-peptidase
Family Family family	d.65.1.2 — Hedgehog (development protein), N-terminal signaling domain

Domain ID domain_id	d2ibgg_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.65 — Hedgehog/DD-peptidase
Superfamily Superfamily superfamily	d.65.1 — Hedgehog/DD-peptidase
Family Family family	d.65.1.2 — Hedgehog (development protein), N-terminal signaling domain

Domain ID domain_id	d2ibgh_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.65 — Hedgehog/DD-peptidase
Superfamily Superfamily superfamily	d.65.1 — Hedgehog/DD-peptidase
Family Family family	d.65.1.2 — Hedgehog (development protein), N-terminal signaling domain

CATH v4.4 (12 domains)

Domain ID domain_id	2ibgA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2ibgA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2ibgB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2ibgB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2ibgC01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2ibgC02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2ibgD01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2ibgD02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2ibgE00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1380 — Muramoyl-pentapeptide Carboxypeptidase; domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2ibgF00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1380 — Muramoyl-pentapeptide Carboxypeptidase; domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2ibgG00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1380 — Muramoyl-pentapeptide Carboxypeptidase; domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2ibgH00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1380 — Muramoyl-pentapeptide Carboxypeptidase; domain 2
Homologous superfamily homologous superfamily	10 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	75.354 Å
Unit-cell length b length_b	70.003 Å
Unit-cell length c length_c	155.695 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.18 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	37.680 Å
R factor r_factor	0.2000
R_work r_work	0.1980
R_free r_free	0.2460

fit	/app/data/saxs_computation/ib/2ibg/2ibg.fit
pddf	/app/data/pr_computation/ib/2ibg/2ibg.pr.out
profile	/app/data/saxs_computation/ib/2ibg/2ibg.dat

Crystal Structure of Hedgehog Bound to the FNIII Domains of Ihog

1. Protein Identity and Related Structures Protein Identity & Related Structures

CG9211-PA

State in the Current Structure

Other States of the Same Protein in the Database

Protein hedgehog

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 water

7. Fold Classification (SCOP + CATH) 28 domains

SCOP 2.08 (16 domains)

CATH v4.4 (12 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
