1aue
FKBP-RAPAMYCIN BINDING DOMAIN (FRB) OF THE FKBP-RAPAMYCIN ASSOCIATED PROTEIN
SAXS Profile

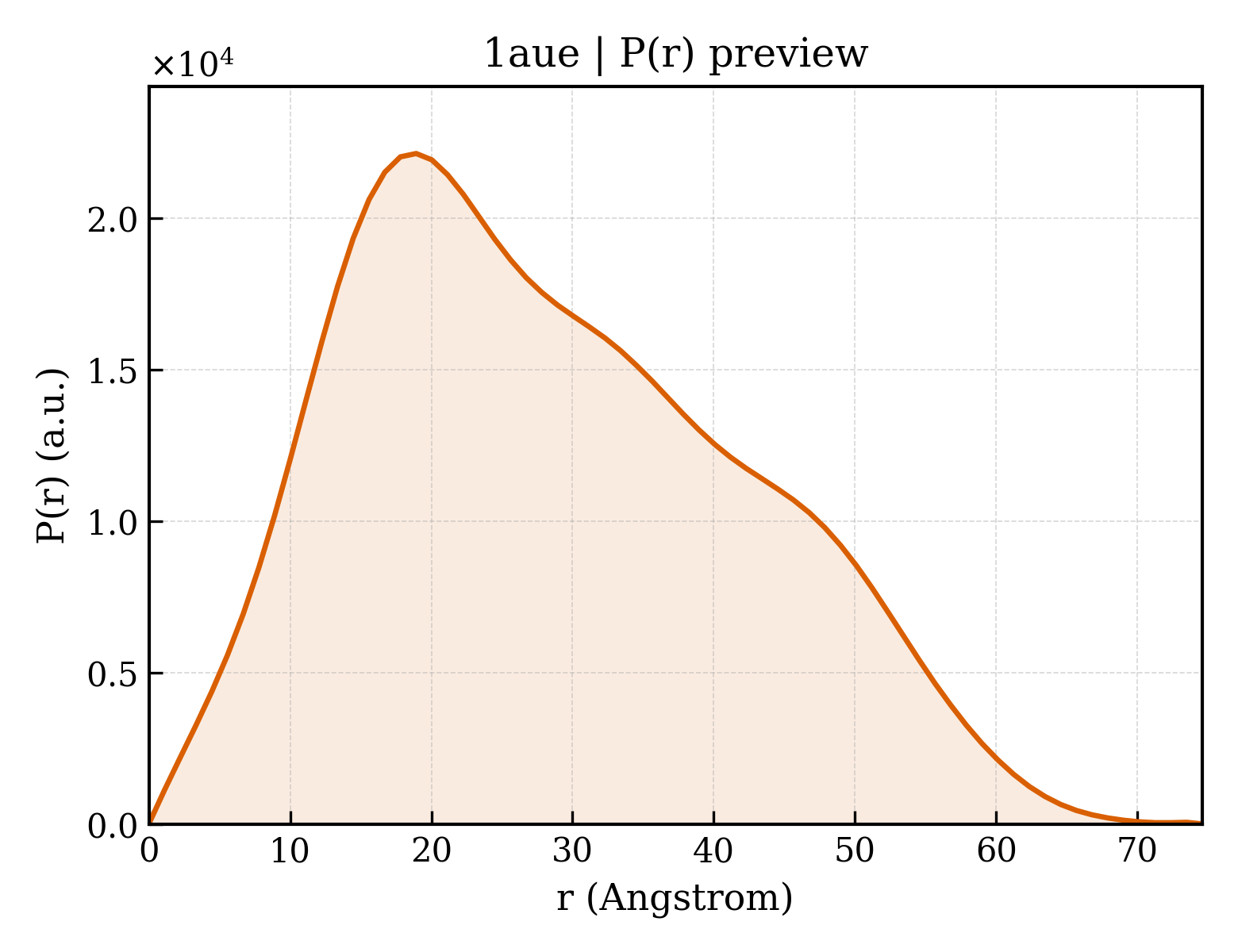

P(r) Distribution
1. Structure Basics
| entry_id | 1aue |
| deposition_date | 1997-08-25 |
| title | FKBP-RAPAMYCIN BINDING DOMAIN (FRB) OF THE FKBP-RAPAMYCIN ASSOCIATED PROTEIN |
| keywords | FKBP-RAPAMYCIN ASSOCIATED PROTEIN G1/S CELL CYCLE, KINASE, TRANSFERASE; TRANSFERASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 22.17 Å |
| rg_electron | 21.69 Å |
| i0 | 9424540.00 |
| molecular_weight | 22414.0 kDa |
| excluded_volume | 27749 ų |
| envelope_volume | 35073 ų |
| shell_volume | 14434 ų |
| envelope_diameter | 76.8 Å |
| shell_rg | 26.69 Å |
| envelope_rg | 21.60 Å |
| shape_rg | 21.68 Å |
| total_rg | 22.41 Å |
| total_atoms | 1941 |
| n_residues | 186 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 74.6 Å |
| rg_real | 22.33 Å |
| rg_real_error | 0.56 Å |
| i0_real | 9.4250e+06 |
| i0_real_error | 1.1610e+05 |
| rg_reciprocal | 22.30 Å |
| i0_reciprocal | 9424000.0000 |
| total_estimate | 0.8402 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 18.9 Å |
| skewness | 0.379 |
| kurtosis | -0.637 |
| angular_range | — – 0.3600 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1586000.0000 |
| n_real_points | 68 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.761; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.642; Smooth: 0.993 |
