SAXSdb — 1avd

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

AVIDIN

Gallus gallus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	2-acetamido-2-deoxy-beta-D-glucopyranose × 2 BIOTIN × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AVID_CHICK
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–128； UniProt 25–152 Author chain B； PDBConstruct 1–128； UniProt 25–152

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1avd
Deposition date deposition_date	1993-03-05
Structure title title	THREE-DIMENSIONAL STRUCTURE OF THE TETRAGONAL CRYSTAL FORM OF EGG-WHITE AVIDIN IN ITS FUNCTIONAL COMPLEX WITH BIOTIN AT 2.7 ANGSTROMS RESOLUTION
Keywords keywords	BIOTIN-BINDING PROTEIN; BIOTIN-BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1avd__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1avd__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

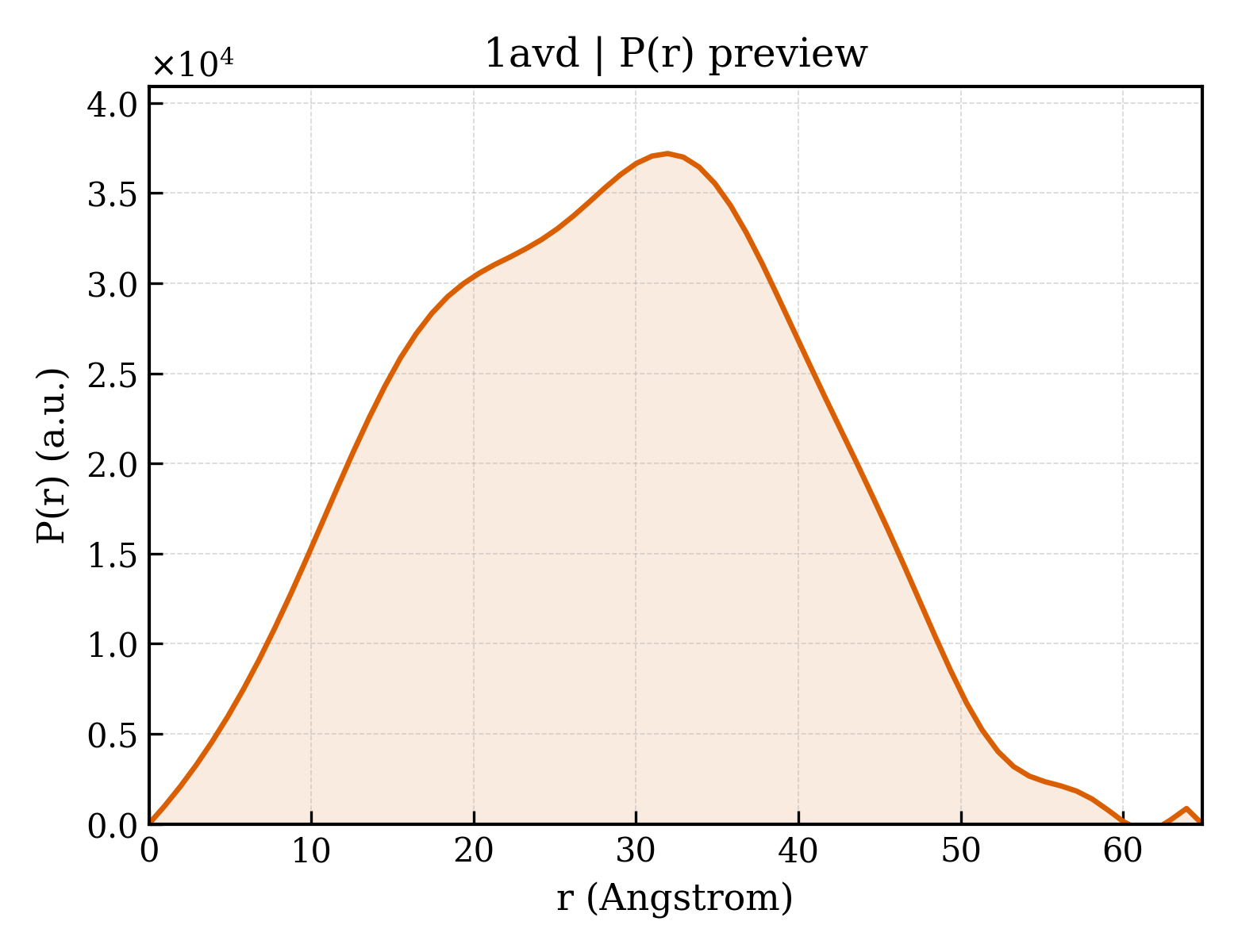

1avd__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.36 Å
Rg (electron density)	22.05 Å
Total Rg	23.08 Å
Atom count	3970
Residues	494
Excluded volume	70177 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1avd__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	AVIDIN
Molecular weight formula_weight	14350.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2022

ARKCSLTGKWTNDLGSNMTIGAVNSRGEFTGTYTTAVTATSNEIKESPLHGTENTINKRTQPTFGFTVNWKFSESTTVFTGQCFIDRNGKEVLKTMWLLRSSVNDIGDDWKATRVGINIFTRLRTQKE

Source Source

Source organism organism	Gallus gallus
Common name common_name	chicken
NCBI taxonomy ID ncbi_taxonomy_id	9031

Entity 2 Entity 2 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	BIOTIN
Molecular weight formula_weight	244.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	37

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1avda_
Class class	b — All beta proteins
Fold Fold fold	b.61 — Streptavidin-like
Superfamily Superfamily superfamily	b.61.1 — Avidin/streptavidin
Family Family family	b.61.1.1 — Avidin/streptavidin

Domain ID domain_id	d1avdb_
Class class	b — All beta proteins
Fold Fold fold	b.61 — Streptavidin-like
Superfamily Superfamily superfamily	b.61.1 — Avidin/streptavidin
Family Family family	b.61.1.1 — Avidin/streptavidin

CATH v4.4 (2 domains)

Domain ID domain_id	1avdA00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	128 — Lipocalin
Homologous superfamily homologous superfamily	30 — Avidin-like

Domain ID domain_id	1avdB00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	128 — Lipocalin
Homologous superfamily homologous superfamily	30 — Avidin-like

▶

Unit-cell length a length_a	80.150 Å
Unit-cell length b length_b	80.150 Å
Unit-cell length c length_c	85.280 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 42 21 2
Space-group number int_tables_number	94
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	0.1740
R_work r_work	—
R_free r_free	—
