1awq
CYPA COMPLEXED WITH HAGPIA (PSEUDO-SYMMETRIC MONOMER)

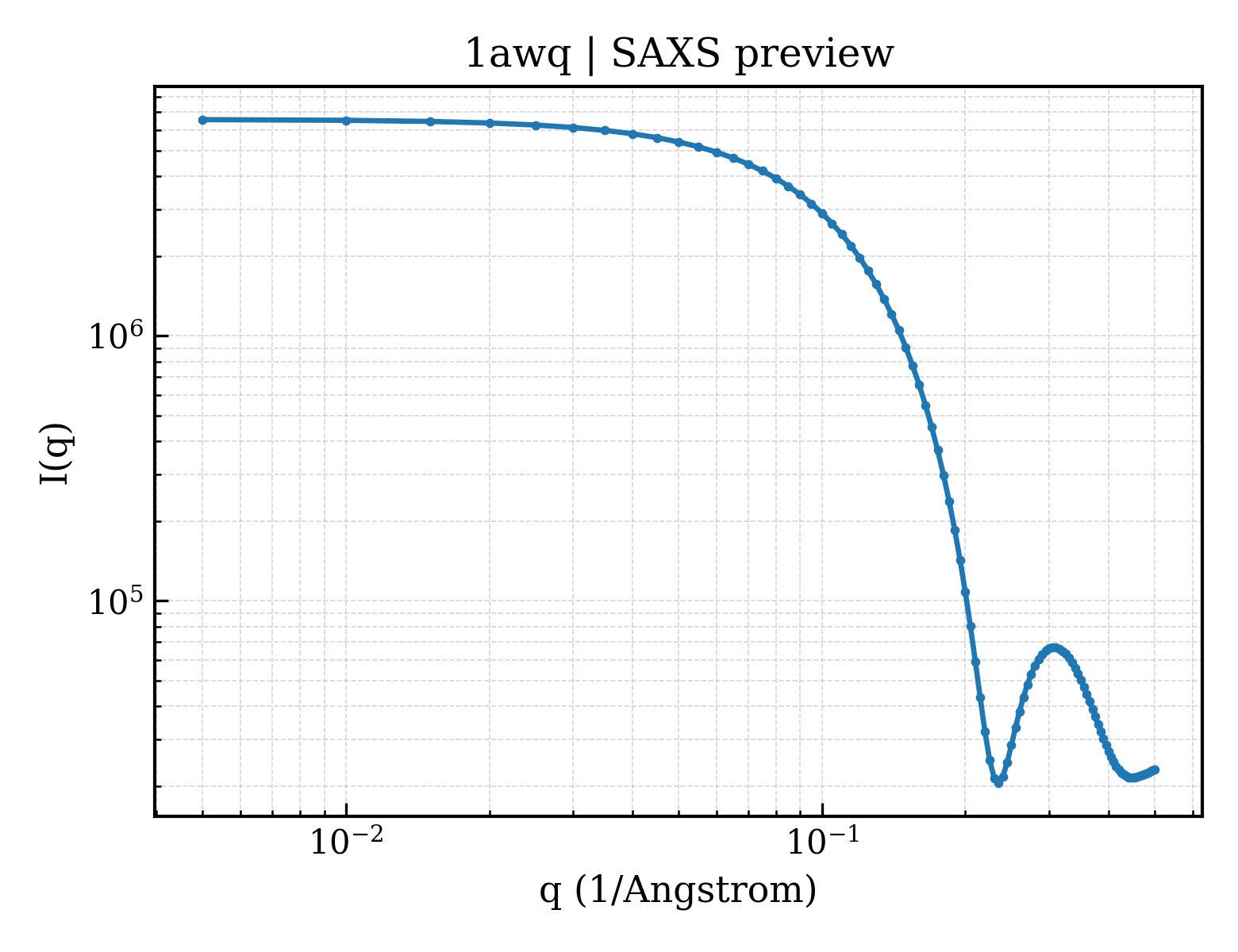

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1awq |
| deposition_date | 1997-10-04 |
| title | CYPA COMPLEXED WITH HAGPIA (PSEUDO-SYMMETRIC MONOMER) |
| keywords | COMPLEX (ISOMERASE-PEPTIDE), CYCLOPHILIN A, HIV-1 CAPSID, PSEUDO-SYMMETRY, COMPLEX (ISOMERASE-PEPTIDE) complex; COMPLEX (ISOMERASE/PEPTIDE) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.38 Å |
| rg_electron | 14.21 Å |
| i0 | 6561870.00 |
| molecular_weight | 18447.0 kDa |
| excluded_volume | 22994 ų |
| envelope_volume | 24348 ų |
| shell_volume | 14097 ų |
| envelope_diameter | 47.6 Å |
| shell_rg | 20.53 Å |
| envelope_rg | 14.50 Å |
| shape_rg | 14.19 Å |
| total_rg | 15.41 Å |
| total_atoms | 1298 |
| n_residues | 170 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 47.2 Å |
| rg_real | 15.25 Å |
| rg_real_error | 0.21 Å |
| i0_real | 6.5620e+06 |
| i0_real_error | 6.8470e+04 |
| rg_reciprocal | 15.26 Å |
| i0_reciprocal | 6562000.0000 |
| total_estimate | 0.8897 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 20.9 Å |
| skewness | 0.042 |
| kurtosis | -0.432 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2510000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.873; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.966 |
