1awt

SECYPA COMPLEXED WITH HAGPIA

Method: X-RAY DIFFRACTION D_max: 198.9 Å Quality: REASONABLE

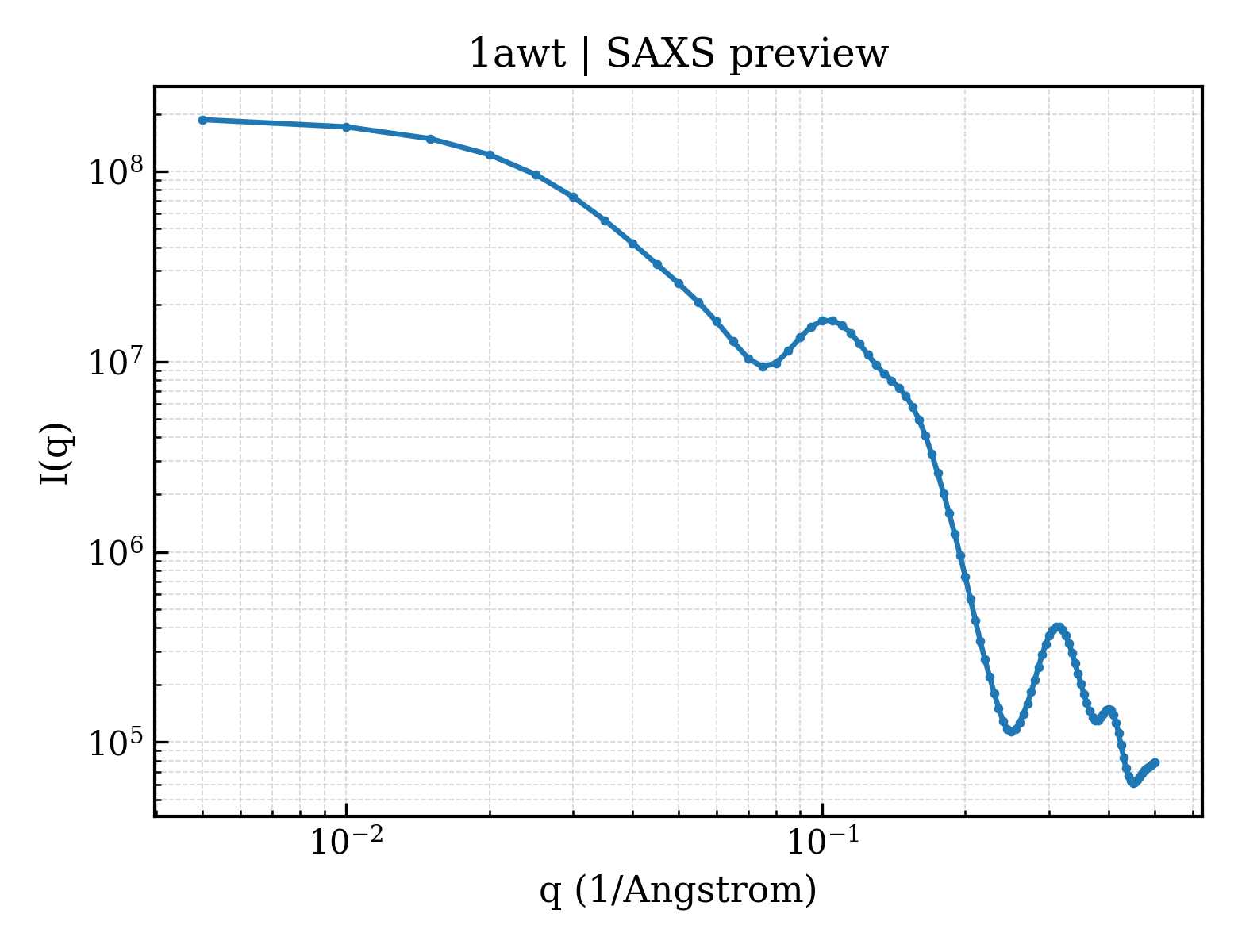

SAXS Profile

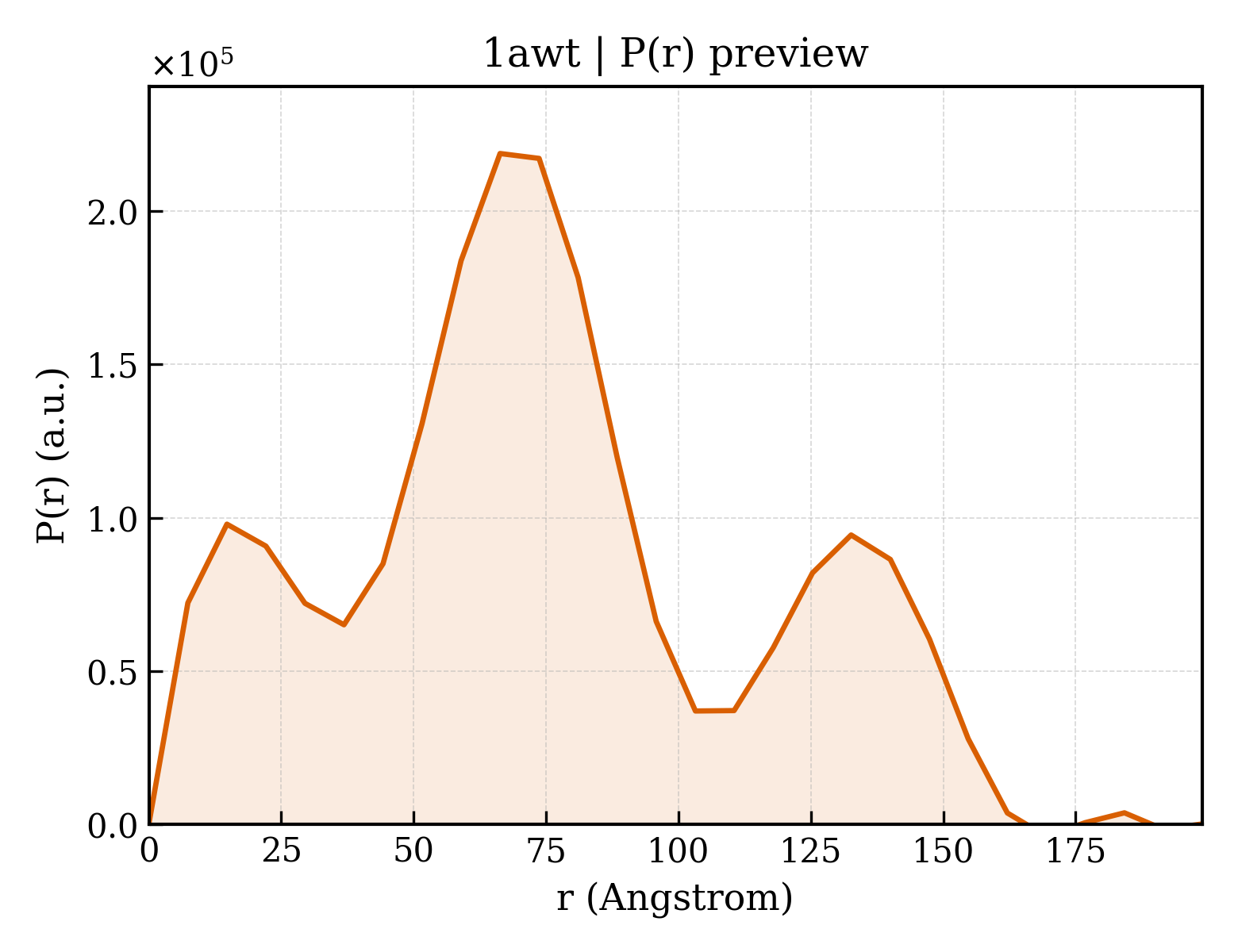

P(r) Distribution

▼

1. Structure Basics

entry_id	1awt
deposition_date	1997-10-05
title	SECYPA COMPLEXED WITH HAGPIA
keywords	COMPLEX (ISOMERASE-PEPTIDE), CYCLOPHILIN A, HIV-1 CAPSID, PSEUDO-SYMMETRY, COMPLEX (ISOMERASE-PEPTIDE) complex; COMPLEX (ISOMERASE/PEPTIDE)
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	58.69 Å
rg_electron	59.44 Å
i0	192767000.00
molecular_weight	111830.0 kDa
excluded_volume	138300 Å³
envelope_volume	242840 Å³
shell_volume	38665 Å³
envelope_diameter	174.5 Å
shell_rg	51.25 Å
envelope_rg	54.90 Å
shape_rg	59.44 Å
total_rg	59.13 Å
total_atoms	7788
n_residues	996
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	198.9 Å
rg_real	59.09 Å
rg_real_error	2.43 Å
i0_real	1.9280e+08
i0_real_error	3.8290e+06
rg_reciprocal	58.30 Å
i0_reciprocal	192500000.0000
total_estimate	0.6149
solution_quality	REASONABLE a REASONABLE solution
n_peaks	4
r_peak_primary	66.3 Å
skewness	0.274
kurtosis	-0.628
angular_range	— – 0.1350 Å⁻¹
current_alpha	0.0000
highest_alpha	4075000.0000
n_real_points	28
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.002; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	CYCLOPHILIN A
formula_weight	18092.9 kDa
ec_number	5.2.1.8
mutation	SELENO-METHIONINE SUBSTITUTED
src_method	man
entity_count	6

Polymer

type	polypeptide(L)
strand_id	A,B,C,D,E,F
atom_count	7963

VNPTVFFDIAVDGEPLGRVSFELFADKVPKTAENFRALSTGEKGFGYKGSCFHRIIPGFMCQGGDFTRHNGTGGKSIYGEKFEDENFILKHTGPGILSMANAGPNTNGSQFFICTAKTEWLDGKHVVFGKVKEGMNIVEAMERFGSRNGKTSKKITIADCGQLE

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 2 polymer

description	PEPTIDE FROM THE HIV-1 CAPSID PROTEIN
formula_weight	565.6 kDa
src_method	man
entity_count	6

Polymer

type	polypeptide(L)
strand_id	G,H,I,J,K,L

HAGPIA

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	175

▶

6. Citations (1)

▶

length_a	73.200 Å
length_b	73.200 Å
length_c	189.600 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	24

space_group	P 41
int_tables_number	76
crystal_system	—

resolution	2.550 Å
resolution_low	15.000 Å
r_factor	0.3780
r_work	0.3780
r_free	0.4650

fit	/app/data/saxs_computation/aw/1awt/1awt.fit
pddf	/app/data/pr_computation/aw/1awt/1awt.pr.out
profile	/app/data/saxs_computation/aw/1awt/1awt.dat
