1awu
CYPA COMPLEXED WITH HVGPIA (PSEUDO-SYMMETRIC MONOMER)

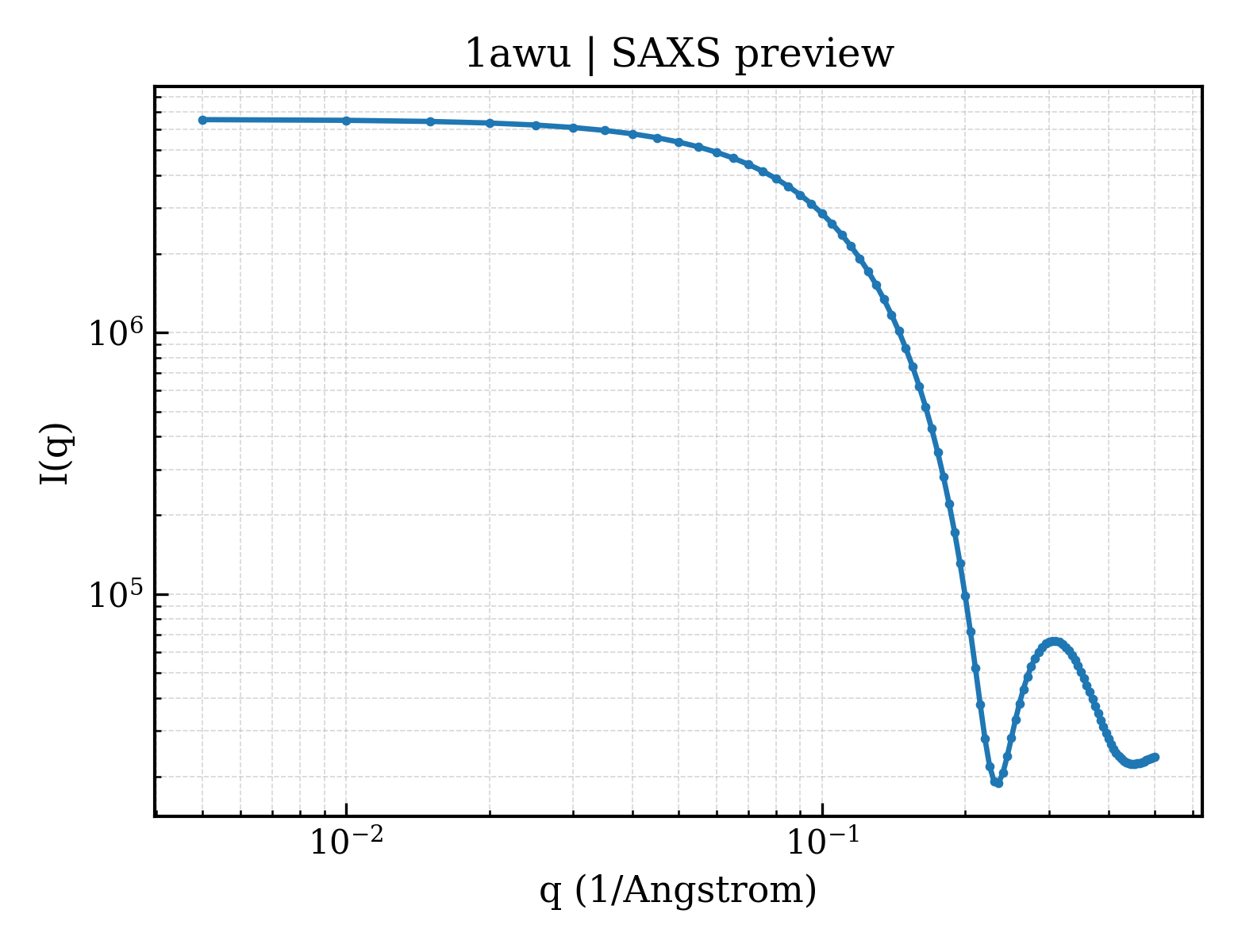

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1awu |
| deposition_date | 1997-10-05 |
| title | CYPA COMPLEXED WITH HVGPIA (PSEUDO-SYMMETRIC MONOMER) |
| keywords | COMPLEX (ISOMERASE-PEPTIDE), CYCLOPHILIN A, HIV-1 CAPSID, PSEUDO-SYMMETRY, COMPLEX (ISOMERASE-PEPTIDE) complex; COMPLEX (ISOMERASE/PEPTIDE) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.51 Å |
| rg_electron | 14.33 Å |
| i0 | 6560720.00 |
| molecular_weight | 18475.0 kDa |
| excluded_volume | 23047 ų |
| envelope_volume | 24870 ų |
| shell_volume | 14267 ų |
| envelope_diameter | 47.0 Å |
| shell_rg | 20.69 Å |
| envelope_rg | 14.64 Å |
| shape_rg | 14.31 Å |
| total_rg | 15.54 Å |
| total_atoms | 1300 |
| n_residues | 170 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 48.1 Å |
| rg_real | 15.38 Å |
| rg_real_error | 0.23 Å |
| i0_real | 6.5610e+06 |
| i0_real_error | 7.3570e+04 |
| rg_reciprocal | 15.40 Å |
| i0_reciprocal | 6561000.0000 |
| total_estimate | 0.8887 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 21.3 Å |
| skewness | 0.053 |
| kurtosis | -0.409 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2625000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.860; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.986 |
