1awv

CYPA COMPLEXED WITH HVGPIA

Method: X-RAY DIFFRACTION D_max: 200.2 Å Quality: REASONABLE

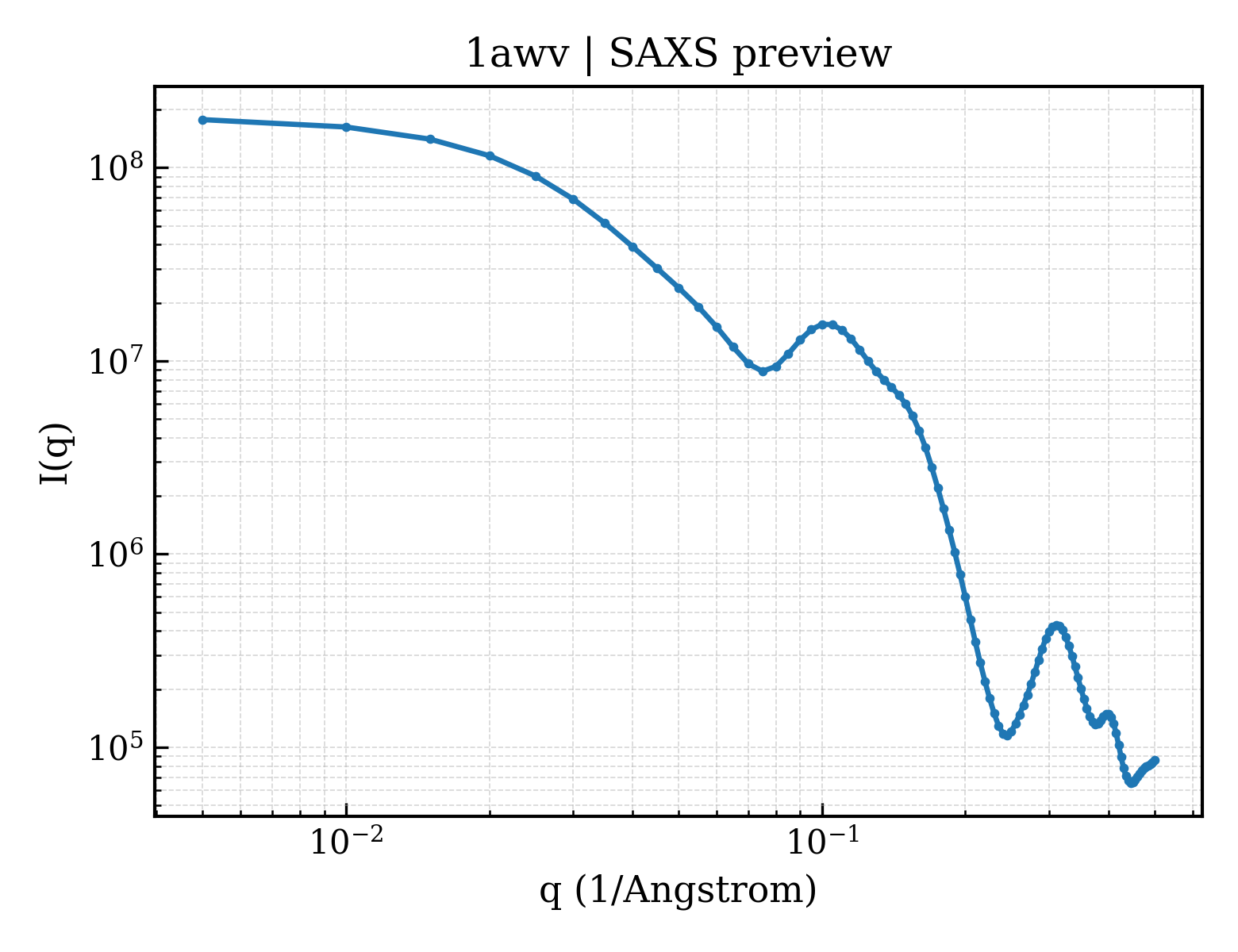

SAXS Profile

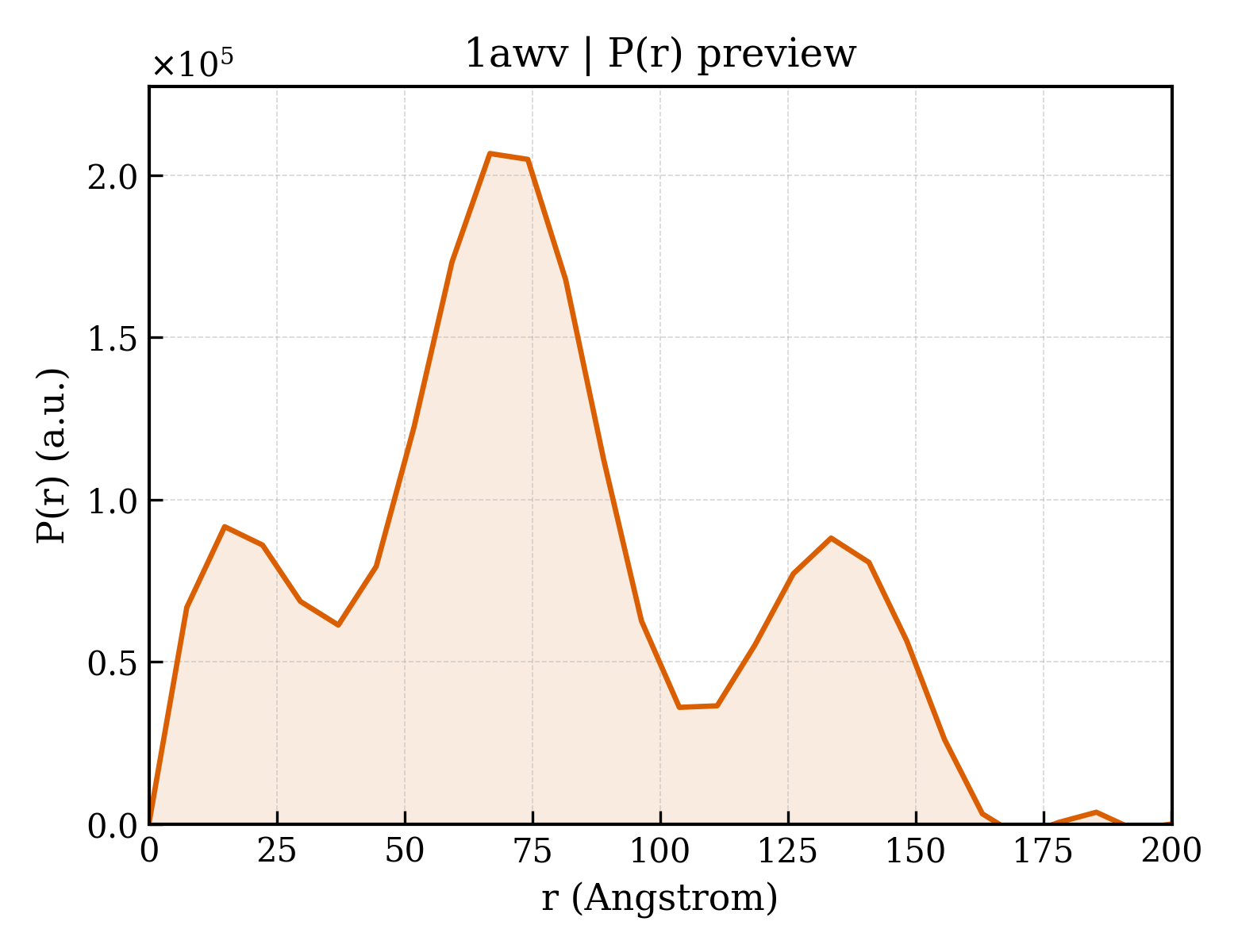

P(r) Distribution

▼

1. Structure Basics

entry_id	1awv
deposition_date	1997-10-05
title	CYPA COMPLEXED WITH HVGPIA
keywords	COMPLEX (ISOMERASE-PEPTIDE), CYCLOPHILIN A, HIV-1 CAPSID, PSEUDO-SYMMETRY, COMPLEX (ISOMERASE-PEPTIDE) complex; COMPLEX (ISOMERASE/PEPTIDE)
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	59.06 Å
rg_electron	59.78 Å
i0	182651000.00
molecular_weight	110850.0 kDa
excluded_volume	138280 Å³
envelope_volume	243520 Å³
shell_volume	38475 Å³
envelope_diameter	176.7 Å
shell_rg	51.81 Å
envelope_rg	55.20 Å
shape_rg	59.78 Å
total_rg	59.50 Å
total_atoms	7800
n_residues	1020
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	200.2 Å
rg_real	59.45 Å
rg_real_error	2.33 Å
i0_real	1.8270e+08
i0_real_error	3.4710e+06
rg_reciprocal	58.67 Å
i0_reciprocal	182400000.0000
total_estimate	0.6149
solution_quality	REASONABLE a REASONABLE solution
n_peaks	4
r_peak_primary	66.7 Å
skewness	0.271
kurtosis	-0.628
angular_range	— – 0.1350 Å⁻¹
current_alpha	0.0000
highest_alpha	4206000.0000
n_real_points	28
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.002; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	CYCLOPHILIN A
formula_weight	17905.3 kDa
ec_number	5.2.1.8
src_method	man
entity_count	6

Polymer

type	polypeptide(L)
strand_id	A,B,C,D,E,F
atom_count	7975

VNPTVFFDIAVDGEPLGRVSFELFADKVPKTAENFRALSTGEKGFGYKGSCFHRIIPGFMCQGGDFTRHNGTGGKSIYGEKFEDENFILKHTGPGILSMANAGPNTNGSQFFICTAKTEWLDGKHVVFGKVKEGMNIVEAMERFGSRNGKTSKKITIADCGQLE

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 2 polymer

description	PEPTIDE FROM THE HIV-1 CAPSID PROTEIN
formula_weight	593.7 kDa
src_method	man
entity_count	6

Polymer

type	polypeptide(L)
strand_id	G,H,I,J,K,L

HVGPIA

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	175

▶

6. Citations (1)

▶

length_a	74.000 Å
length_b	74.000 Å
length_c	190.400 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	24

space_group	P 41
int_tables_number	76
crystal_system	—

resolution	2.340 Å
resolution_low	15.000 Å
r_factor	0.3580
r_work	0.3580
r_free	0.4600

fit	/app/data/saxs_computation/aw/1awv/1awv.fit
pddf	/app/data/pr_computation/aw/1awv/1awv.pr.out
profile	/app/data/saxs_computation/aw/1awv/1awv.dat
