TRANSCRIPTIONAL REPRESSOR COPG/DNA COMPLEX

entry_id	1b01
deposition_date	1999-11-15
title	TRANSCRIPTIONAL REPRESSOR COPG/DNA COMPLEX
keywords	TRANSCRIPTIONAL REPRESSOR, DNA-BINDING PROTEIN, PLASMID, PROTEIN-DNA COMPLEX, GENE REGULATION/DNA, GENE REGULATION-DNA complex; GENE REGULATION/DNA
method	X-RAY DIFFRACTION

rg_guinier	15.92 Å
rg_electron	14.73 Å
i0	6798420.00
molecular_weight	15431.0 kDa
excluded_volume	17829 ų
envelope_volume	20991 ų
shell_volume	12363 ų
envelope_diameter	50.1 Å
shell_rg	20.06 Å
envelope_rg	14.94 Å
shape_rg	14.66 Å
total_rg	15.75 Å
total_atoms	1052
n_residues	105
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	50.9 Å
rg_real	15.84 Å
rg_real_error	0.27 Å
i0_real	6.7980e+06
i0_real_error	8.1360e+04
rg_reciprocal	15.85 Å
i0_reciprocal	6798000.0000
total_estimate	0.9012
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	20.0 Å
skewness	0.152
kurtosis	-0.417
angular_range	— – 0.5000 Å−1
current_alpha	0.0000
highest_alpha	620300.0000
n_real_points	80
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.904; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.999

Unit Cell

length_a	40.300 Å
length_b	40.300 Å
length_c	221.560 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	16

Symmetry

space_group	P 43 2 2
int_tables_number	95
crystal_system	—

Refinement

resolution	2.560 Å
resolution_low	20.000 Å
r_factor	0.2470
r_work	0.2470
r_free	0.3160

Diffraction

temperature

100.0 K

Files (7)

• pr_distribution /app/data/pr_computation/b0/1b01/pr_distribution.json
• pr_output /app/data/pr_computation/b0/1b01/1b01.pr.out
• pr_plot /app/data/visualization/pr_computation/b0/1b01/1b01_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/b0/1b01/1b01.dat
• saxs_fit /app/data/saxs_computation/b0/1b01/1b01.fit
• saxs_log /app/data/saxs_computation/b0/1b01/1b01.log

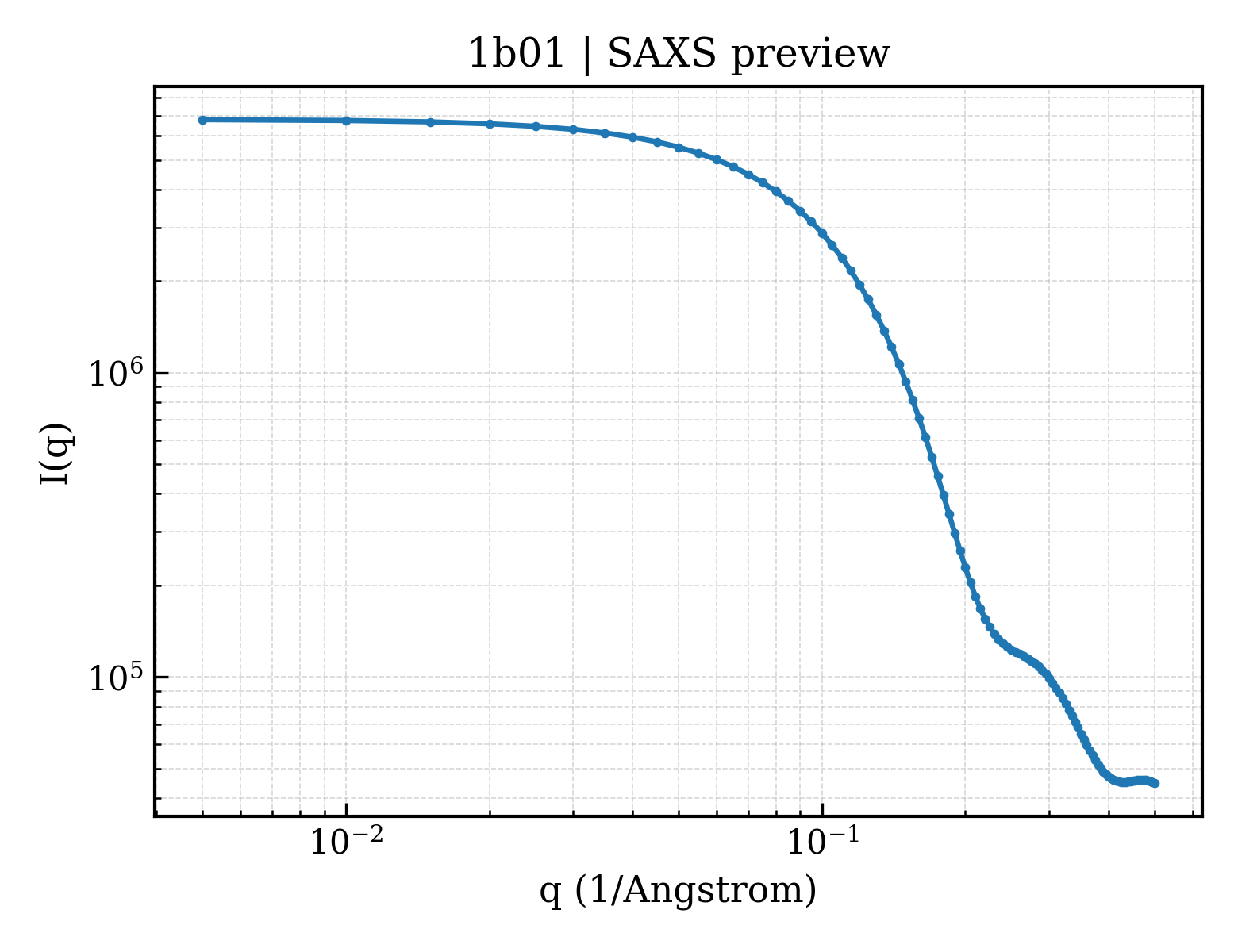

• saxs_plot /app/data/visualization/saxs_computation/b0/1b01/1b01_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/b0/1b01/1b01.fit
pddf	/app/data/pr_computation/b0/1b01/1b01.pr.out
profile	/app/data/saxs_computation/b0/1b01/1b01.dat
