1b03
SOLUTION STRUCTURE OF THE ANTIBODY-BOUND HIV-1IIIB V3 PEPTIDE
SAXS Profile

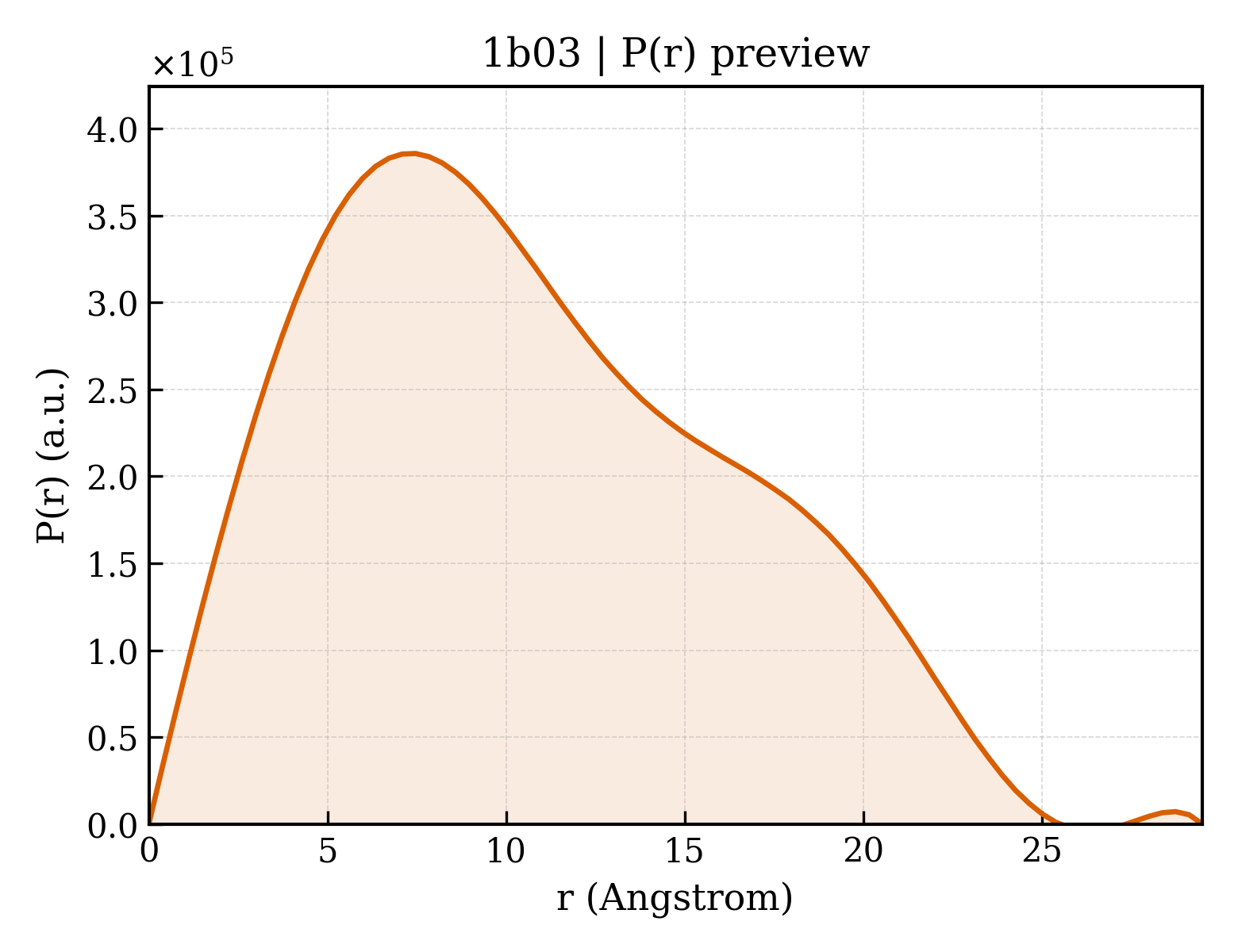

P(r) Distribution
1. Structure Basics
| entry_id | 1b03 |
| deposition_date | 1998-11-17 |
| title | SOLUTION STRUCTURE OF THE ANTIBODY-BOUND HIV-1IIIB V3 PEPTIDE |
| keywords | P1053 STRUCTURE, Viral protein; VIRAL PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 8.37 Å |
| rg_electron | 8.30 Å |
| i0 | 69146800.00 |
| molecular_weight | 70015.0 kDa |
| excluded_volume | 88598 ų |
| envelope_volume | 5951 ų |
| shell_volume | 5705 ų |
| envelope_diameter | 31.9 Å |
| shell_rg | 14.28 Å |
| envelope_rg | 10.07 Å |
| shape_rg | 8.26 Å |
| total_rg | 8.63 Å |
| total_atoms | 10430 |
| n_residues | 630 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 29.5 Å |
| rg_real | 8.47 Å |
| rg_real_error | 0.30 Å |
| i0_real | 6.9150e+07 |
| i0_real_error | 7.2480e+05 |
| rg_reciprocal | 8.47 Å |
| i0_reciprocal | 69150000.0000 |
| total_estimate | 0.6198 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 7.5 Å |
| skewness | 0.398 |
| kurtosis | -0.663 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1811.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.757; Stabil: 1.000; Sysdev: 0.256; Positv: 1.000; Valcen: 0.317; Smooth: 0.696 |
