1b07
CRK SH3 DOMAIN COMPLEXED WITH PEPTOID INHIBITOR

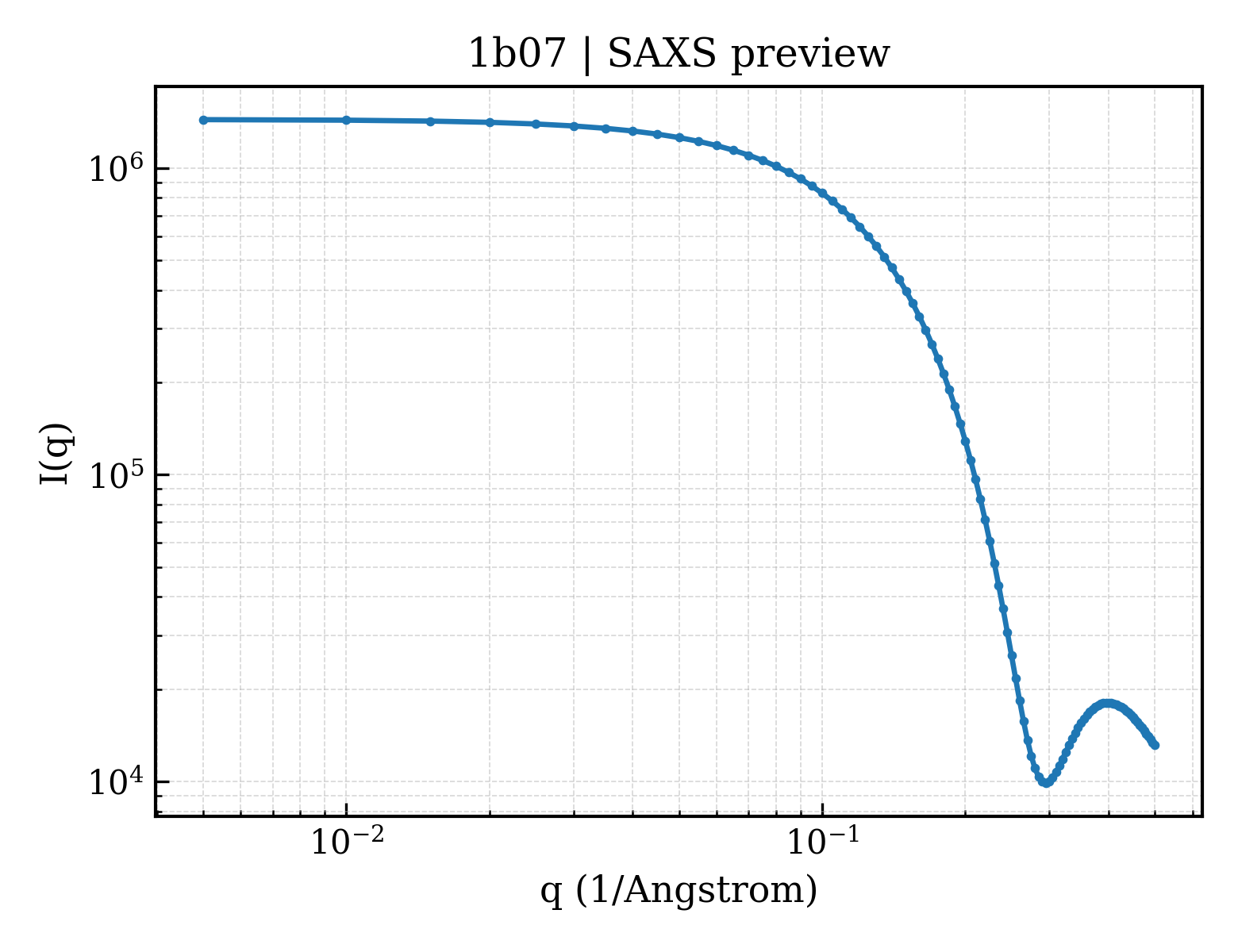

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1b07 |
| deposition_date | 1998-11-17 |
| title | CRK SH3 DOMAIN COMPLEXED WITH PEPTOID INHIBITOR |
| keywords | SH3 DOMAIN, INHIBITORS, PEPTOIDS, PROTEIN-PROTEIN RECOGNITION, PROLINE-RICH MOTIFS, SIGNAL TRANSDUCTION; SH3 DOMAIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.81 Å |
| rg_electron | 11.21 Å |
| i0 | 1440360.00 |
| molecular_weight | 8010.0 kDa |
| excluded_volume | 10016 ų |
| envelope_volume | 11230 ų |
| shell_volume | 8661 ų |
| envelope_diameter | 40.4 Å |
| shell_rg | 16.76 Å |
| envelope_rg | 11.67 Å |
| shape_rg | 11.19 Å |
| total_rg | 12.75 Å |
| total_atoms | 569 |
| n_residues | 69 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 41.6 Å |
| rg_real | 12.73 Å |
| rg_real_error | 0.25 Å |
| i0_real | 1.4400e+06 |
| i0_real_error | 1.4230e+04 |
| rg_reciprocal | 12.73 Å |
| i0_reciprocal | 1440000.0000 |
| total_estimate | 0.8013 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 16.9 Å |
| skewness | 0.146 |
| kurtosis | -0.262 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 413100.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.806; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.000 |
