Homo sapiens
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein heterocomplex | Heteromer | Protein 3 | Crk × 1 （Q64010） Abl × 1 （P00519） | Consistent with protein count |
| UniProt name | CRK_HUMAN |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–109； UniProt 12–120 |
Mus musculus
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein heterocomplex | Heteromer | Protein 3 | Crk × 1 （P46108） Abl × 1 （P00519） | Consistent with protein count |
| UniProt name | CRK_MOUSE |
| Isoform | — |
| PDB entities | 2 |
| Chains and sequence ranges | Author chain B； PDBConstruct 1–12； UniProt 217–228 |
Homo sapiens
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein heterocomplex | Heteromer | Protein 3 | Crk × 1 （P46108） Crk × 1 （Q64010） | Consistent with protein count |
| UniProt name | ABL1_HUMAN |
| Isoform | — |
| PDB entities | 3 |
| Chains and sequence ranges | Author chain C； PDBConstruct 1–61； UniProt 62–122 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1ju5 |
| Deposition date deposition_date | 2001-08-23 |
| Structure title title | Ternary complex of an Crk SH2 domain, Crk-derived phophopeptide, and Abl SH3 domain by NMR spectroscopy |
| Keywords keywords | Crk, SH2, Abl, SH3, adaptor protein, phosphopeptide, PROTEIN BINDING-TRANSFERASE COMPLEX; PROTEIN BINDING/TRANSFERASE |
| Experimental Method method | SOLUTION NMR |

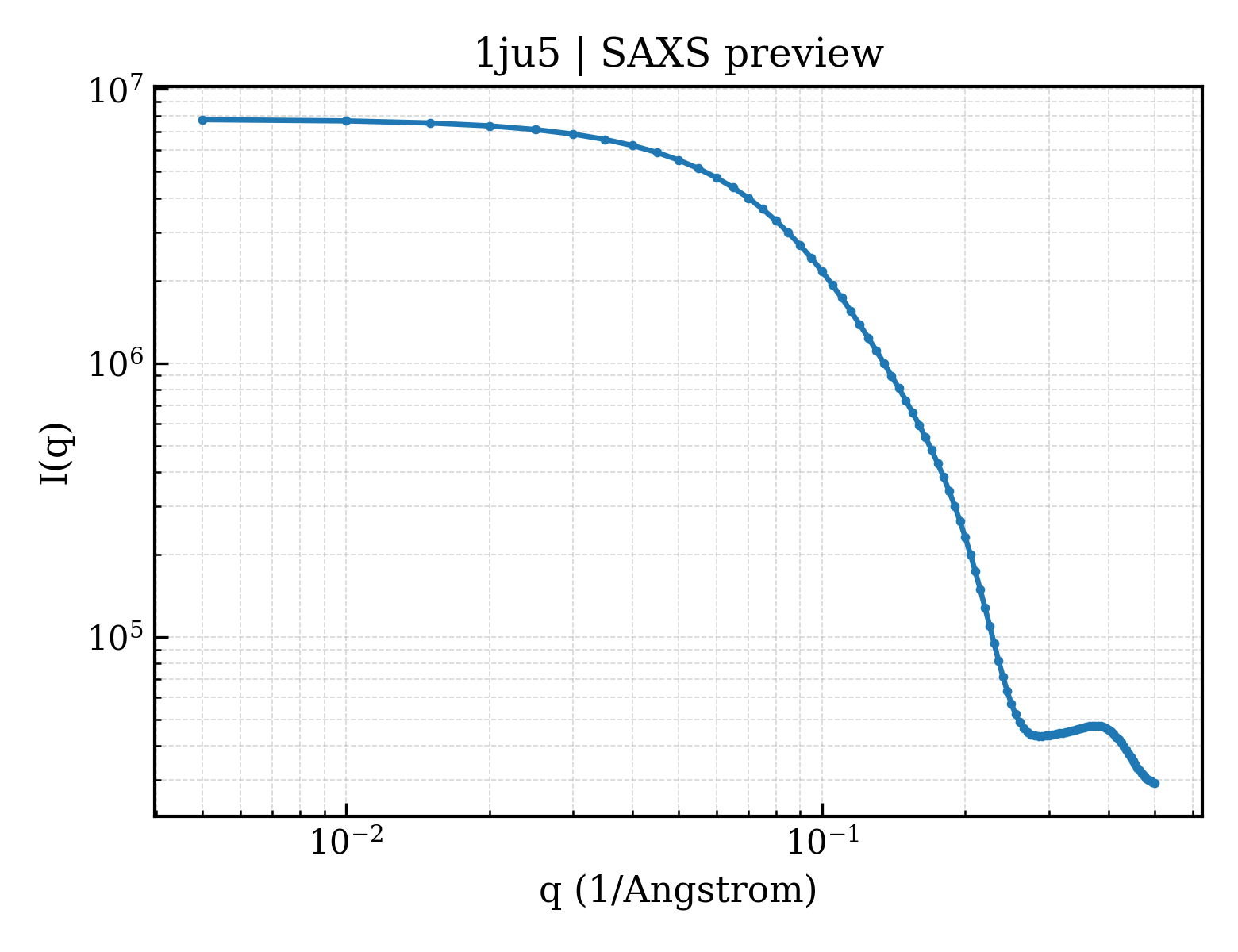

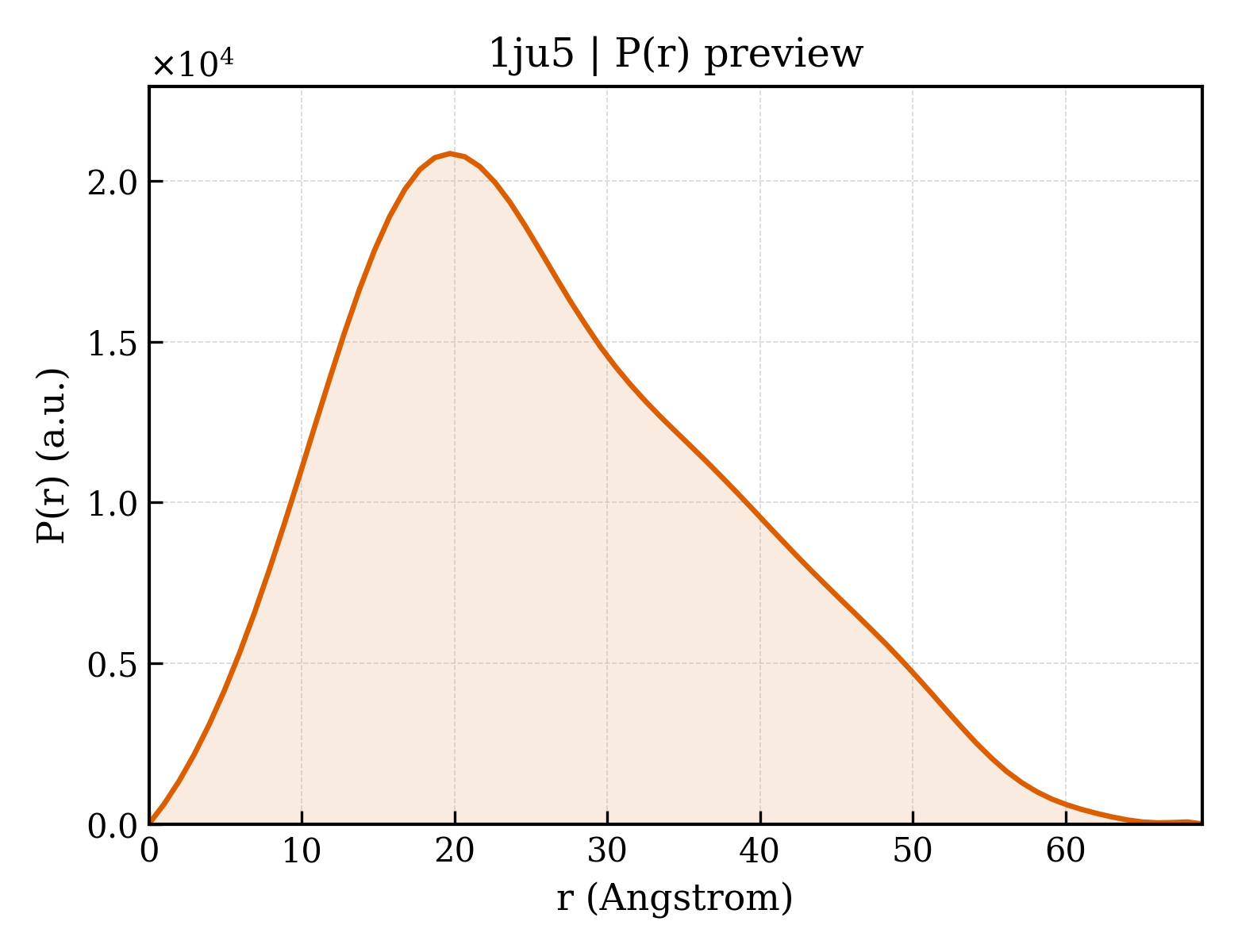

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 20.34 Å |
| Rg (electron density) | 19.79 Å |
| Total Rg | 20.68 Å |
| Atom count | 2814 |
| Residues | 181 |
| Excluded volume | 25157 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1ju5a_ |
| Class class | d — Alpha and beta proteins (a+b) |
| Fold Fold fold | d.93 — SH2-like |
| Superfamily Superfamily superfamily | d.93.1 — SH2 domain |
| Family Family family | d.93.1.1 — SH2 domain |
| Domain ID domain_id | d1ju5c_ |
| Class class | b — All beta proteins |
| Fold Fold fold | b.34 — SH3-like barrel |
| Superfamily Superfamily superfamily | b.34.2 — SH3-domain |
| Family Family family | b.34.2.1 — SH3-domain |
| Domain ID domain_id | 1ju5A00 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 30 — 2-Layer Sandwich |
| Topology topology | 505 — SHC Adaptor Protein |
| Homologous superfamily homologous superfamily | 10 — SH2 domain |
| Domain ID domain_id | 1ju5C00 |
| Class class | 2 — Mainly Beta |
| Architecture architecture | 30 — Roll |
| Topology topology | 30 — SH3 type barrels. |
| Homologous superfamily homologous superfamily | 40 — SH3 Domains |
